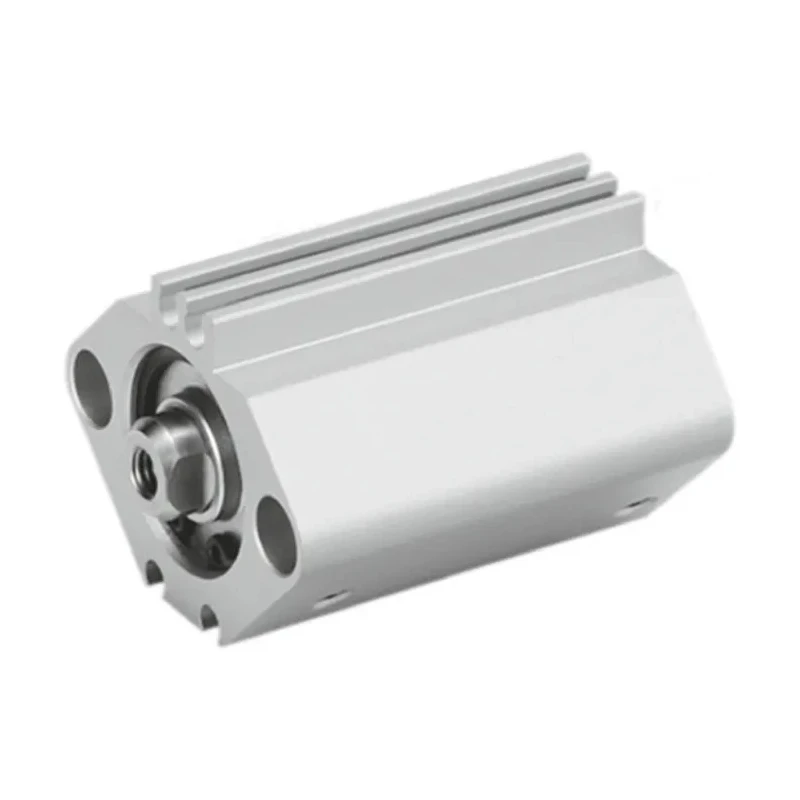

SMC Pneumatic Compact Cylinder 20mm Bore, 10mm Stroke, Single Acting, Aluminium Alloy Body, Metric Thread CDQ2B20-10TZ

SMC CDQ2B20-10TZ Pneumatic Compact Cylinder is a single acting pneumatic cylinder with a 20mm bore diameter and 10mm stroke length, designed for compact industrial pneumatic applications. The cylinder features a robust aluminium alloy body, providing strength and lightweight performance suitable for construction, manufacturing, automation, and fluid power systems.

This compact cylinder is equipped with a through hole mount and rubber bumper cushioning, enhancing durability and smooth operation. It supports a maximum operating pressure of 1.5 MPa and a piston speed of up to 500 mm/s, making it efficient for precise pneumatic movements.

The cylinder operates within a temperature range of -10°C to 70°C, enabling reliable performance in various environmental conditions. It has a compact form factor with dimensions of 44mm length, 36mm width, and height, and weighs only 78 grams, facilitating space-saving design in pneumatic tooling.

Additional features include a single rod type with a female piston rod metric thread standard, magnetic piston for position detection compatibility, and nitrile seals that eliminate the need for lubrication, thus reducing maintenance. The design excludes certifications but meets general standards for pneumatic compact cylinders.

Ideal for industrial sectors such as manufacturing automation, material handling, HVAC controls, packaging machinery, and laboratory equipment, this cylinder delivers reliability and compact performance.

Constructed with an aluminium alloy body for durability. Through hole mount type with rubber bumper cushioning. Operates at a maximum pressure of 1.5 MPa and piston speed up to 500 mm/s. Operating temperature range from -10°C to 70°C for versatile applications.

Compact dimensions with 44mm length, 36mm width and height, and lightweight at 78 grams. Equipped with a single rod type with female metric thread standard for easy integration. Suitable for industrial pneumatic applications requiring space and weight saving.

Magnetic piston and nitrile seals that require no lubrication. Designed without certifications but compliant to industry standards for pneumatic cylinders. Explore EnvMart’s extensive Pneumatic Cylinders & Actuators category for more industrial pneumatic solutions including cylinders, actuators, and accessories from leading brands.
