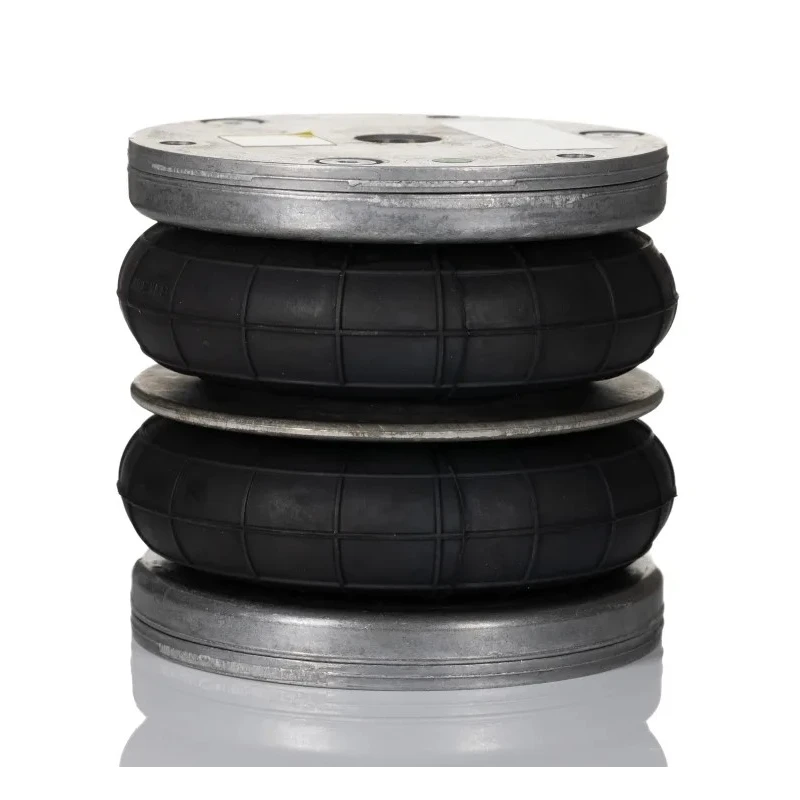

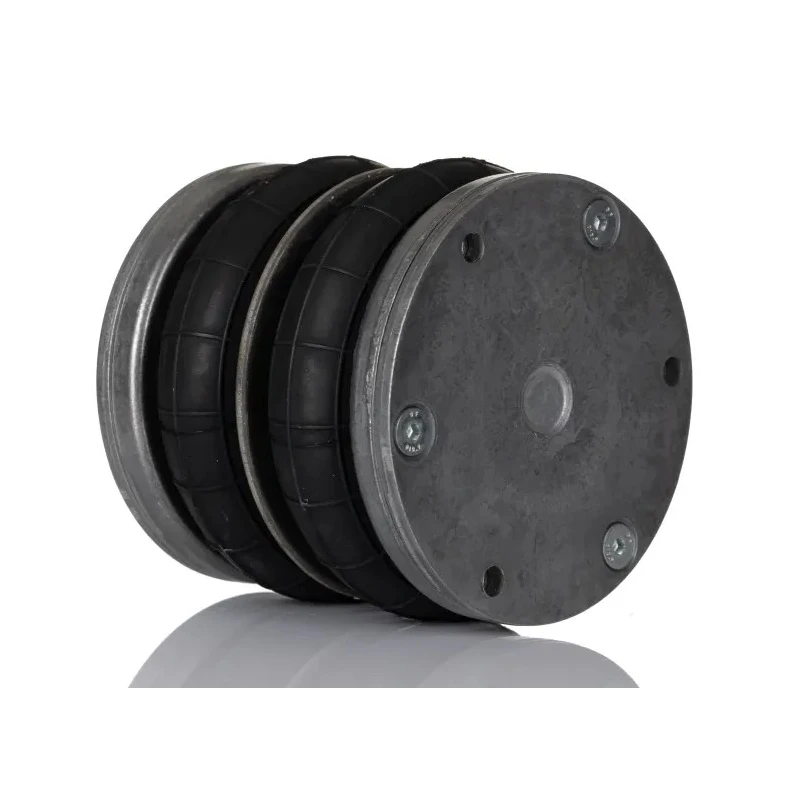

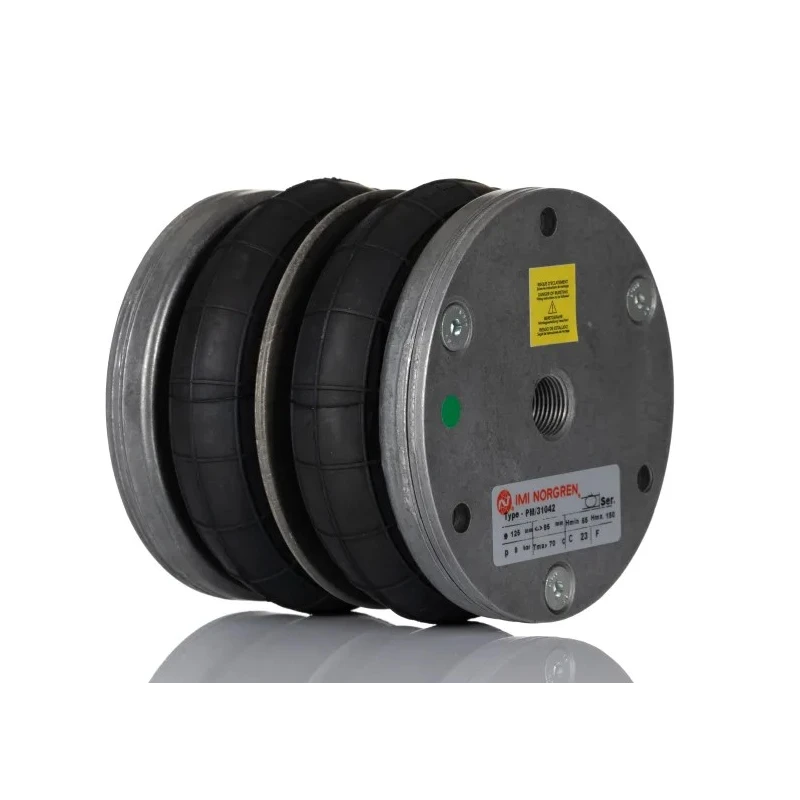

Norgren Compact Air Bellows , 2 Convolution, 114.3mm Nominal Diameter, 85mm Stroke Length, G 3/8 Port Size, 8 bar PM/31042

Norgren PM/31042 Compact Air Bellows offer reliable pneumatic actuation with a compact 114.3 mm nominal diameter and two convolutions providing precise movement and vibration control. They are engineered to operate efficiently within a maximum pressure of 8 bar across a temperature range from -40°C to 130°C, making them suitable for demanding industrial and commercial environments such as automation, material handling, and medical applications.

These bellows feature a stroke length of 85 mm and a G 3/8 port size for flexible pneumatic connections. Their lightweight design at 950 grams reduces burden on assemblies while the corrosion-resistant aluminium end plates protect against moisture, allowing use in harsh or humid conditions without maintenance or lubrication.

The bellows enable frictionless operation through an integrated spring mechanism, extending product lifespan and ensuring safe and consistent performance. Installation is adaptable thanks to minimum and maximum height specifications of 65 mm and 150 mm respectively.

Applications include automated conveyor systems, pressure rollers, tension belts, railway system components, and imaging machinery in medical fields, providing dependable motion control solutions.

The air bellows have a nominal diameter of 114.3 mm for compact installation. They feature a stroke length of 85 mm suitable for medium-duty applications. Maximum operating pressure is 8 bar, ensuring reliable pneumatic force.

The bellows include G 3/8 port size for easy pneumatic connection. Weighting only 950 grams, they reduce assembly strain and facilitate installation. Operating temperature ranges from -40°C to 130°C for broad environmental compatibility.

Minimum and maximum installation heights of 65 mm and 150 mm allow flexible mounting. Constructed with aluminium end plates for corrosion resistance in humid environments. Designed to reduce vibration, minimizing misalignment and wear in pneumatic systems.

Ideal for automated conveyor systems, pressure rollers, tension belts, railway and medical imaging applications.

Norgren Compact Air Bellows PM/31042 align with industrial and laboratory pneumatic actuator requirements, offering durable, maintenance-free performance. This product is a precise choice for professionals seeking compact, robust pneumatic components for fluid power and automation systems.
