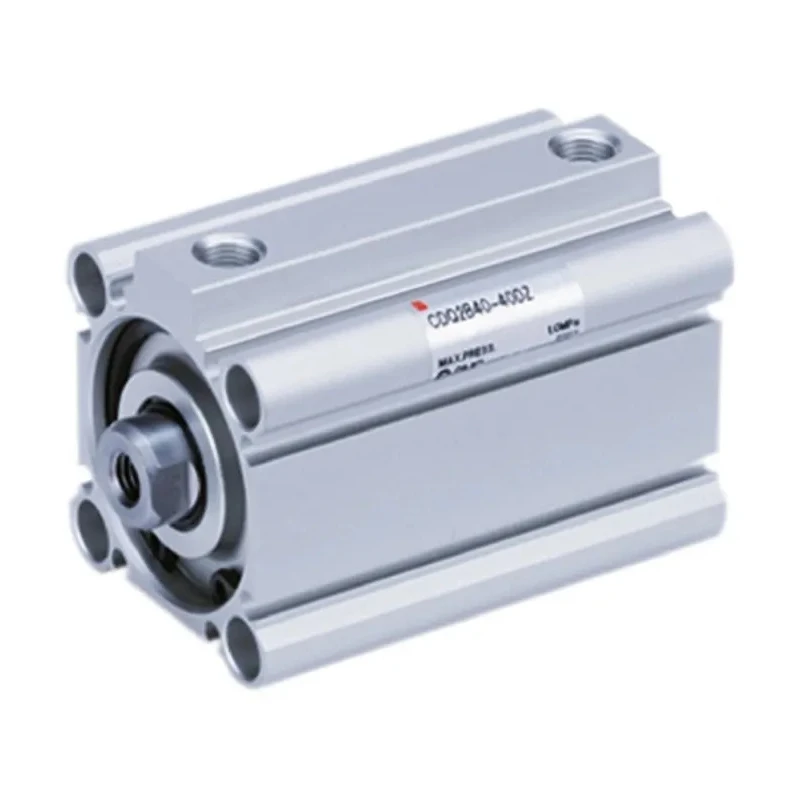

SMC Pneumatic Compact Cylinder 63mm Bore, 20mm Stroke, Aluminium Alloy Body, Double Acting CDQ2B63TF-20DZ

SMC CDQ2B63TF-20DZ Pneumatic Compact Cylinder with a 63mm bore diameter and 20mm stroke length, features a durable aluminium alloy body in a space-saving compact design. It is a double acting pneumatic piston rod cylinder designed for high performance in industrial pneumatic applications.

This cylinder includes a rubber bumper cushioning system to minimize operational shock and extend cylinder life. The through hole mounting style offers flexible installation in various machinery setups.

Operating efficiently within a temperature range from -10°C to 70°C and a maximum operating pressure of 1.5 MPa, this cylinder ensures reliable performance in harsh industrial, manufacturing, automation, and material handling environments.

The single rod pneumatic cylinder has a female piston rod threading adhering to metric standards, providing compatibility with a range of pneumatic systems. Its compact dimensions (64mm length, 84mm width, 77mm height) and 620g weight contribute to easy integration and handling.

The unit operates without lubrication, reducing maintenance costs and downtime. Its magnetic piston design supports use with solid state switches, enhancing operational precision and control.

Constructed with an aluminium alloy body for durability and lightweight performance. Equipped with a rubber bumper cushioning type to reduce impact during operation. Designed with through hole mount type for versatile installation options.

Operates within a temperature range of -10°C to 70°C suitable for industrial environments. Supports a maximum operating pressure of 1.5 MPa for efficient pneumatic actuation. Features a single rod type with a female piston rod thread following the metric standard.

Compact dimensions with a length of 64mm, width of 84mm, and height of 77mm optimize space usage. Weighs 620g, balancing portability and mechanical strength. No lubrication required, reducing maintenance needs and downtime.

Magnetic piston design allows use with solid state switches for precise control.

This pneumatic compact cylinder is suitable for several industrial applications including manufacturing automation, material handling systems, pneumatic machinery, and fluid power tools. It provides reliable and efficient actuation in tight or space-constrained setups.
