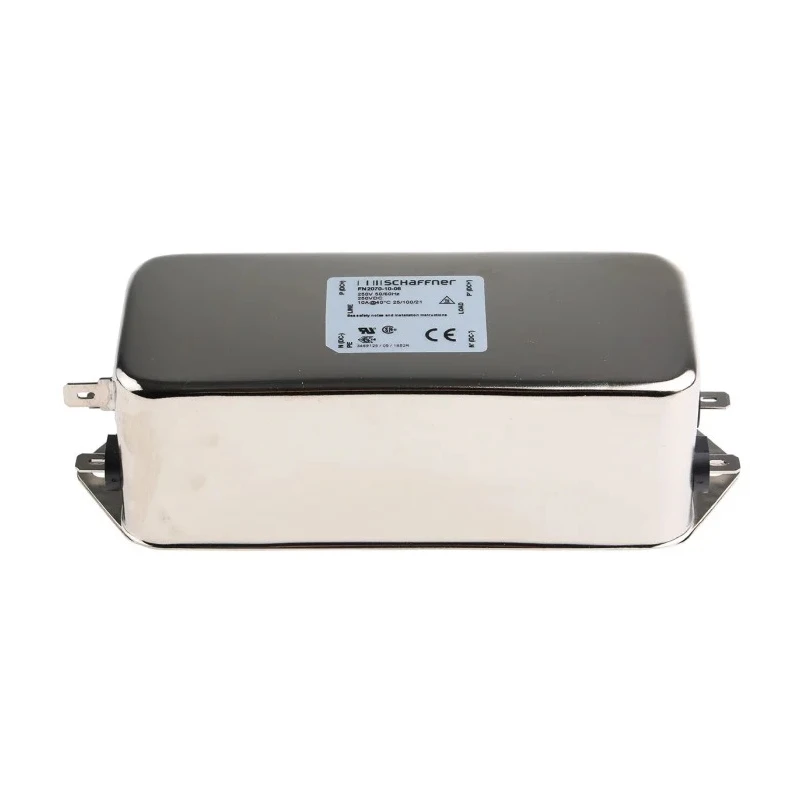

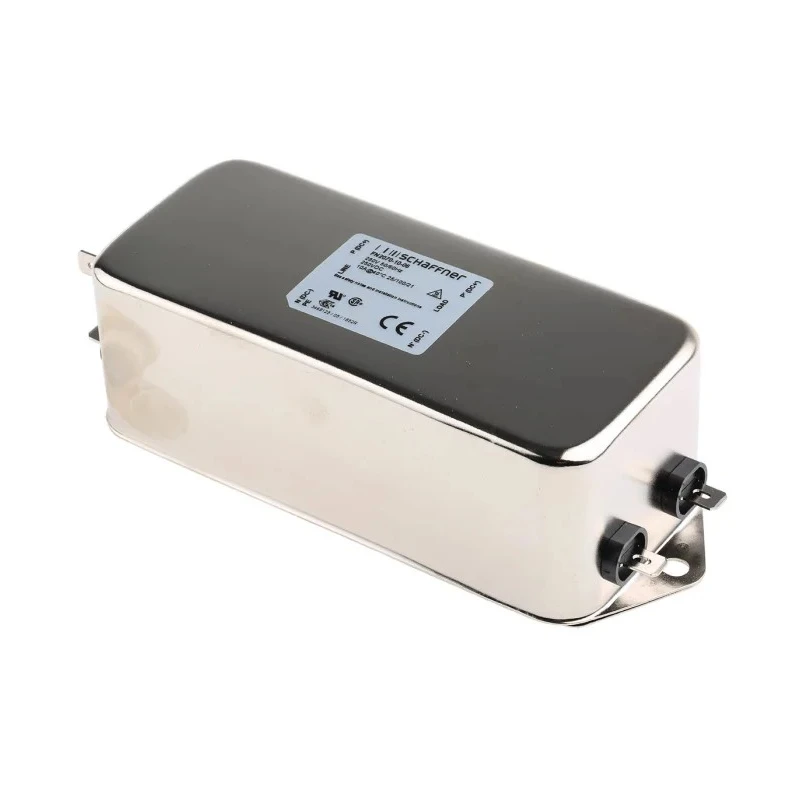

Schaffner EMI Filter, 10 A, 250V AC/DC, 400Hz, Chassis Mount, Fast-On, Single Phase FN2070
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Schaffner |
| Height | 45.4mm |
| Length | 57.5mm |
| Model | FN2070 |
| Depth | 156mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 400Hz |
| Series | FN2070 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 2 |
| Resistance | 220kΩ |
| Capacitance | 4.7nF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 10A |
| Number of Phases | 1 |
| Leakage Current | 734μA |
| Maximum Voltage | 250V ac/dc |
| Inductance | 4.5mH |
| Termination Style | Fast-On |
| Power Loss | 9.1W |
| RS PRO, TFNF 10 A 250V ac 400Hz, Chassis Mount RFI Filter, TabBrand | RS PRO |
Key Features
- Chassis mount design for secure installation.
- Rated at 10A for robust current handling.
- Supports up to 250V AC/DC and 400Hz operation.
- Fast-On terminals enable quick and reliable connections.
- Single phase configuration suited for industrial and commercial applications.
- Aluminium case ensures durability and excellent thermal behaviour.
- Two-stage filtering enhances attenuation performance at high frequencies.
- Leakage current limited to 734μA for safety.
Product Description
Schaffner FN2070-10-06 EMI Filter is engineered to provide efficient suppression of electromagnetic interference in mains input lines for sensitive equipment. Designed for chassis mounting, it offers a rugged aluminium enclosure that ensures durability and efficient thermal behaviour. The filter supports currents up to 10A and voltages up to 250V AC or DC with an operating frequency of 400Hz, making it suitable for diverse industrial and electronic environments.
Featuring Fast-On terminals, the FN2070-10-06 allows for fast and secure wiring, reducing installation time in panel and equipment assembly. Its single-phase, two-stage filtering topology significantly improves attenuation in both differential and common mode noises, particularly at higher frequencies, ensuring compliance with demanding regulatory standards.
Chassis mount design for secure installation. Rated at 10A for robust current handling. Supports up to 250V AC/DC and 400Hz operation. Fast-On terminals enable quick and reliable connections. Single phase configuration suited for industrial and commercial applications.
Aluminium case ensures durability and excellent thermal behaviour. Two-stage filtering enhances attenuation performance at high frequencies. Leakage current limited to 734μA for safety. Wide operating temperature range from -25°C to 100°C.
Common applications include electrical panels, building automation, machinery, medical equipment, and other equipment where electromagnetic interference must be minimized. The filter is designed to maximise performance and safety, providing reliable filtering for power line protection in noisy electronic environments.
Dimensions: 156mm depth, 57.5mm length, 45.4mm height. The FN2070-10-06 operates with 4.7nF capacitance and 4.5mH inductance, with a resistance of 220kΩ and maximum power loss of 9.1W.
Explore more power line filters and EMI suppression solutions in the EMI Filter category and other Schaffner products at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 10A.
It supports voltages up to 250V AC or DC.
The operating frequency is 400Hz.
The dimensions are 156mm in depth, 57.5mm in length, and 45.4mm in height.
This EMI filter is designed for chassis mounting.
The leakage current is limited to 734μA.
The operating temperature range is from -25°C to 100°C.
It has a capacitance of 4.7nF and an inductance of 4.5mH.
The maximum power loss is rated at 9.1W.
This model features a two-stage filtering topology.
It is suitable for applications such as electrical panels, building automation, machinery, and medical equipment.
It uses Fast-On terminals for quick and reliable connections.
