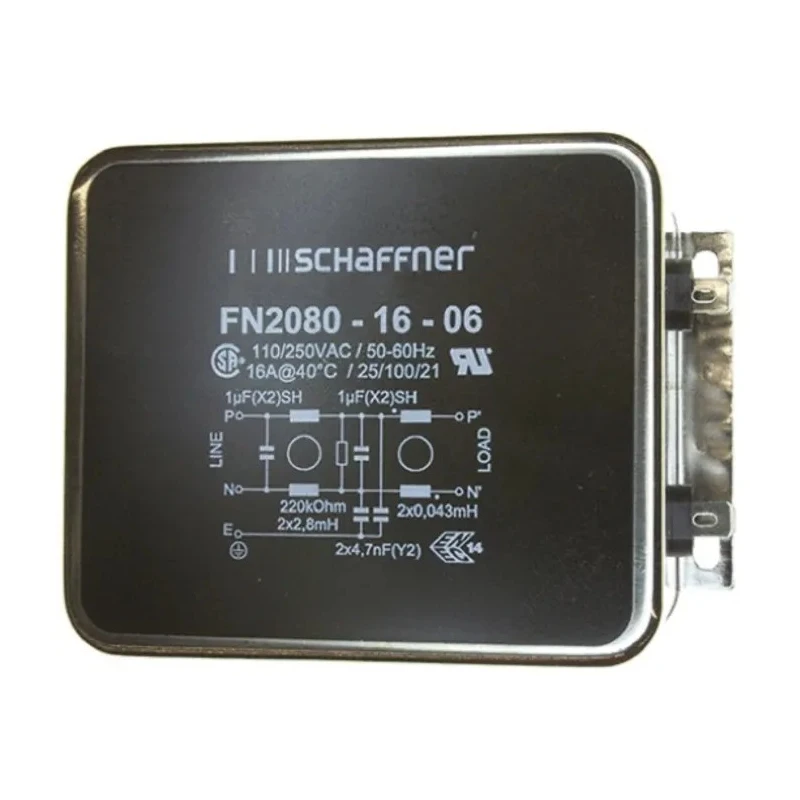

Schaffner Chassis Mount EMI Filter 16A, 250V AC/DC, 400Hz, 3 Phase, Fast-On Terminal FN2080
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Schaffner |
| Height | 57.6mm |
| Length | 85.5mm |
| Model | FN2080 |
| Depth | 119mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 400Hz |
| Series | FN2080 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 2 |
| Resistance | 220kΩ |
| Capacitance | 4.7nF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 16A |
| Number of Phases | 3 |
| Leakage Current | 734μA |
| Maximum Voltage | 250V ac/dc |
| Inductance | 2.8mH |
| Termination Style | Fast-On |
| Power Loss | 9W |
| Filter,chassis mount,16A,SF4220-16/01Brand | BLP |
Key Features
- Chassis mount EMI filter designed for reliable power line filtering.
- Supports maximum current of 16A for robust operation in industrial settings.
- Suitable for both 250V AC/DC and 400Hz frequency applications.
- Features Fast-On terminals for quick and secure installation.
- Three-phase filtering improves conducted attenuation in demanding environments.
- Premium two-stage design enhances wide-band noise suppression.
- Aluminium case ensures durability and thermal stability.
- Compact dimensions with height of 57.6mm, length of 85.5mm, and depth of 119mm.
Product Description
Schaffner FN2080-16-06 is a premium chassis mount EMI filter uniquely engineered for high-performance noise suppression in industrial, commercial, and electronic applications. With a current rating of 16A and support for up to 250V AC/DC at 400Hz, this filter is perfectly suited for three-phase power environments requiring robust electromagnetic interference mitigation.
The Fast-On terminal design allows for quick, tool-free installation, improving workflow and reducing downtime in automation and machinery setups. The filter's two-stage architecture delivers excellent wide-band filtering performance, particularly when used with power equipment in building automation, medical instrumentation, office automation, or general noisy machinery.
Chassis mount EMI filter designed for reliable power line filtering. Supports maximum current of 16A for robust operation in industrial settings. Suitable for both 250V AC/DC and 400Hz frequency applications. Features Fast-On terminals for quick and secure installation.
Three-phase filtering improves conducted attenuation in demanding environments. Premium two-stage design enhances wide-band noise suppression. Aluminium case ensures durability and thermal stability. Compact dimensions with height of 57.6mm, length of 85.5mm, and depth of 119mm.
Leakage current rated at 734μA for safe and efficient performance. Operates reliably across a temperature range from -25°C to 100°C.
The filter is built in a sturdy aluminum chassis, optimized for heat dissipation and system reliability. Its advanced componentry includes inductance of 2.8mH and capacitance of 4.7nF, making it suitable for devices sensitive to signal integrity and electrical noise.
Schaffner FN2080-16-06's compact design supports easy integration on control panels, enclosures, and power distribution blocks. Its engineered construction meets the practical needs of manufacturing lines, laboratory test systems, and high-reliability installations.
This EMI filter is ideal for use in industrial automation, building management systems, medical equipment, office automation, and any applications requiring strong filter performance against conducted emissions.
Browse more Schaffner EMI Filters and industrial power line components at EnvMart to optimize your machinery's noise immunity and compliance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this EMI filter is 16A.
This model supports a voltage range of up to 250V AC/DC.
The operating frequency for this filter is 400Hz.
The dimensions of this unit are 57.6mm in height, 85.5mm in length, and 119mm in depth.
It features Fast-On terminals for quick and secure installation.
The leakage current is rated at 734μA.
This filter operates reliably across a temperature range from -25°C to 100°C.
The FN2080 features a two-stage design for enhanced noise suppression.
The inductance value is 2.8mH.
This EMI filter is suitable for industrial automation, medical equipment, and office automation applications.
The chassis is constructed from aluminum, which ensures durability and thermal stability.
The capacitance rating of this filter is 4.7nF.
