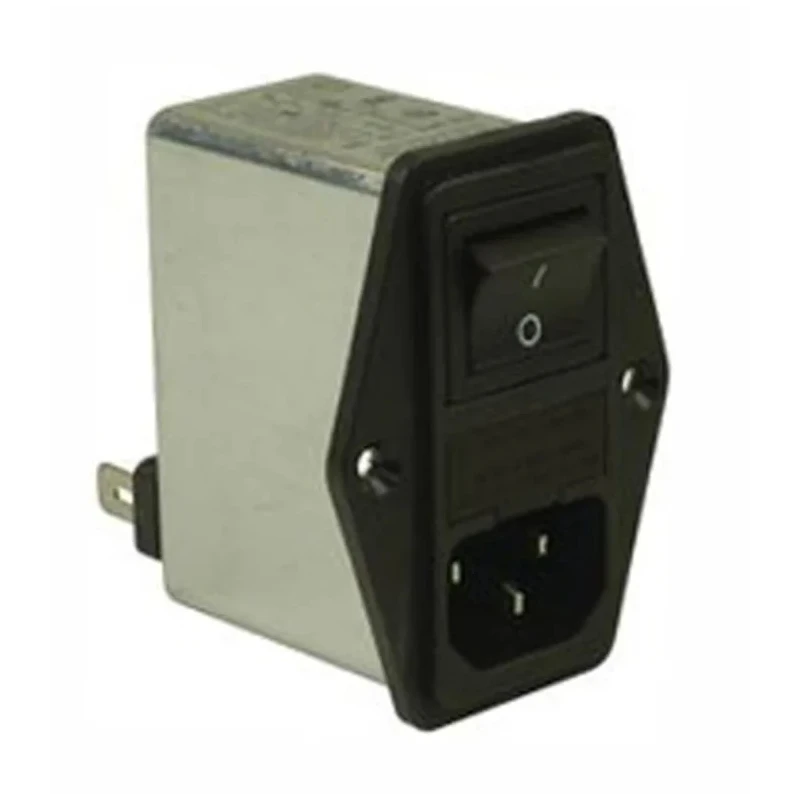

Schaffner 250V 10A Flange IEC Filter Male 2 Pole 1 Fuse Faston FN283-10-06

Schaffner FN283-10-06 is a high-quality flange IEC filter designed for industrial and electronic applications requiring reliable power entry modules. It operates at 250V and 10A current rating, incorporating a male 2-pole switch and single fuse holder for enhanced safety and operational control. The fuse size is 5 x 20 mm, providing protection against overcurrent conditions.

Built with a flange mount type, this IEC connector ensures secure installation in equipment requiring mains filtering. The connector is IEC type C14 male, terminated with Faston contacts for robust and quick electrical connections. It operates efficiently across a wide temperature range from -25°C to 85°C, making it suitable for challenging environments.

This model complies with IEC/EN 60601-1 standards, making it suitable for medical equipment as well as various electronic and consumer goods that require power line filtering. Its compact size and reliable operation enable it to be used in portable electrical and electronic equipment, office and data processing equipment, switch-mode power supplies, test and measurement instruments, and more.

With dimensions measuring 65mm in height, 50mm in width, and 48.6mm in depth, the FN283-10-06 offers a compact solution for noise filtering and power conditioning. The integrated 2-pole rocker switch and fuse holder enhance user safety and device protection, making it an essential component in power line filtering setups.

Equipped with a 2-pole rocker switch for efficient power management. Includes a single fuse holder compatible with 5 x 20 mm fuses. Flange mounting ensures easy and secure installation. IEC C14 male connector type with Faston termination for fast wiring.

Wide operating temperature range from -25°C to 85°C for versatile usage. Complies with IEC/EN 60601-1 for medical and industrial electrical safety. Compact form factor fits well in portable and office equipment. Supports applications across multiple industries including laboratory, medical, and manufacturing.

Height of 65mm, width of 50mm, and depth of 48.6mm for space-efficient installation. Explore EnvMart’s industrial and electronic components selection for more IEC Filters and power connectors.
