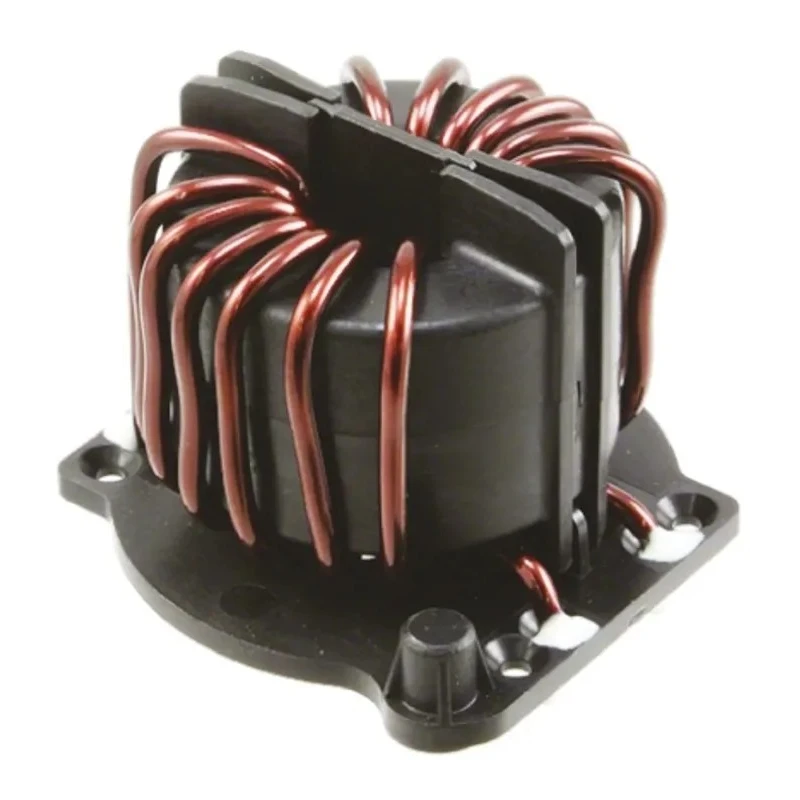

Schaffner 1 mH Common Mode Choke Radial Mount 16 A IDC 4.8 mΩ RDC 1000V DC Max SRF 400Hz RB6122-16-1M0
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 51.34mm |
| Brand | Schaffner |
| Operating Temperature | -40°C → +125°C |
| Height | 41.5mm |
| Length | 53.3mm |
| Model | RB6122-16-1M0 |
| Depth | 51.34mm |
| Mount Type | Radial |
| Series | RB |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Maximum Voltage | 1000V dc |
| Inductance | 1mH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 16A |
| Maximum DC Resistance | 4.8mΩ |
| Inductance Tolerance | -30 to 50 % |
| Termination Style | PC Pin |
| Maximum Self Resonant Frequency | 400Hz |
| Lead Pitch | 15.24mm |
| Lead Diameter | 2mm |
| Schaffner 1 mH Common Mode Choke, Max SRF | 400 Hz, 16 A Idc, 4.8 mΩ Rdc 1000V dc, RB |
Key Features
- Inductance value of 1 mH suitable for EMI noise filtering applications.
- Radial mount type with PC pin termination style.
- Designed to handle a continuous current of up to 16 A DC.
- Maximum DC resistance of 4.8 milliohms for low power loss.
- Operating temperature range from -40°C to +125°C.
- Compact dimensions with a diameter and depth of 51.34 mm and length of 53.3 mm.
- Maximum voltage rating of 1000 V DC for high-voltage tolerance.
- RoHS compliant ensuring environmental and safety standards.
Product Description
The Schaffner RB6122-16-1M0 Common Mode Choke is engineered to provide effective EMI noise filtering on AC and DC lines through its robust 1 mH inductance and radial through-hole mounting. This component is optimized for applications requiring a maximum DC current rating of 16 A and high voltage endurance of up to 1000 V DC.
Constructed with a small yet durable design, it features a maximum DC resistance of 4.8 mΩ which ensures minimal power loss and maximum efficiency in power supply filtering circuits.
The choke operates reliably across a temperature range of -40°C to 125°C, making it suitable for use in harsh industrial, commercial, and automotive environments. Its maximum self-resonant frequency of 400 Hz targets effective suppression of EMI noise within low-frequency ranges.
Key mechanical specifications include a lead diameter of 2 mm, PC pin termination style, lead pitch of 15.24 mm, and a compact dimension profile of 51.34 mm diameter and depth with 53.3 mm length, enabling easy integration into various PCB layouts and electronic assemblies.
This product complies with RoHS standards, ensuring environmentally friendly manufacturing and safe disposal. Typical applications include EMI noise filtering in switch mode power supplies, UPS systems, charging stations, fast chargers, and power supply filtering for midsize power range drives.
Inductance of 1 mH for effective noise suppression. Radial mount with PC pins for stable PCB mounting. Handles maximum DC current of 16 A for robust performance. Low DC resistance minimizes energy loss during operation. Wide operating temperature range supports diverse industrial uses.
Compact dimensions facilitate integration into electronic circuits. High voltage tolerance up to 1000 V DC for reliable safety margins. RoHS certified for compliance with environmental standards. Ideal for industrial, laboratory, HVAC, and manufacturing use cases.
Discover high-quality Leaded Inductors like this Schaffner common mode choke in our Electronics Components category at EnvMart for your precise industrial and laboratory needs.
