Murata Power Solutions 1.5 mH Leaded Inductor Radial, Max SRF 700 kHz, Q 28, 1.7 A Idc, 374 mΩ Rdc, Series 1400 1415517C

Murata Power Solutions model 1415517C is a 1.5 mH leaded inductor designed primarily for power line applications such as switching regulators, filters, and suppression circuits within electronic and electrical systems.

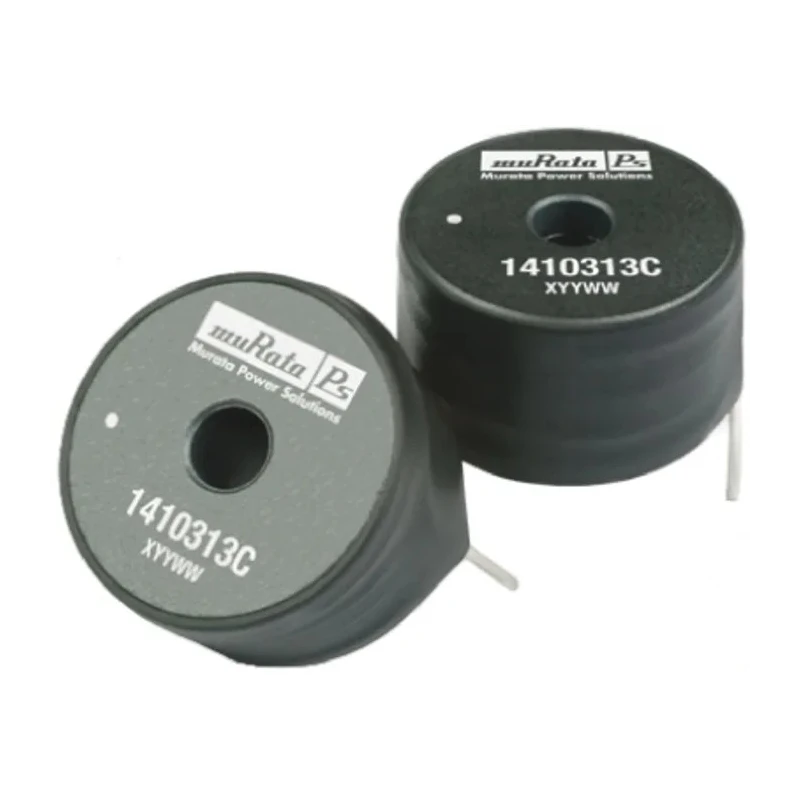

This radial mount inductor is constructed from a high saturation flux density material enabling it to sustain high current applications effectively. It features a maximum self-resonant frequency of 700 kHz and a quality factor of 28, making it suitable for high frequency operation.

The device supports a maximum DC current of 1.7 A with a DC resistance of 374 mΩ, ensuring efficient energy transfer while minimizing losses. The lead diameter of 0.75 mm and lead pitch of 28.8 mm facilitate secure solder mounting on printed circuit boards. The overall dimensions include a diameter of 29.8 mm, height of 23.3 mm, length of 32.8 mm, and a depth of 31.3 mm.

Operating temperature ranges from -40°C to +85°C, with an inductance tolerance of ±10%, which assures stable performance under a variety of thermal conditions. The inductor complies with RoHS standards, underscoring its environmental safety compliance. This product is manufactured in China under the series 1400 by Murata Power Solutions.

Designed for power line applications including switching regulators and suppression circuits. Max self resonant frequency of 700 kHz ensuring performance at high frequencies. Current rating up to 1.7 A with maximum DC resistance of 374 mΩ.

Constructed with high saturation flux density materials for durability under high current. Radial mount type with 0.75 mm lead diameter and 10 mm lead length. Operating temperature range from -40°C to +85°C for reliable use in various environments.

Inductance tolerance is ±10% to maintain circuit precision. Termination style is solder for straightforward PCB assembly.

This leaded inductor is ideal for industrial, electronic manufacturing, power supply, and communication systems requiring stable inductance and current handling. It is suitable for applications in laboratories, power electronics, and embedded system designs.
