Wurth Elektronik 20 mH Manganese Zinc Leaded Inductor, 500 mA Idc, 1 Ω Rdc, 1500V, Radial Mount, WE-CMB HC 744821120

Free Delivery in India | Lowest Global Shipping Charges

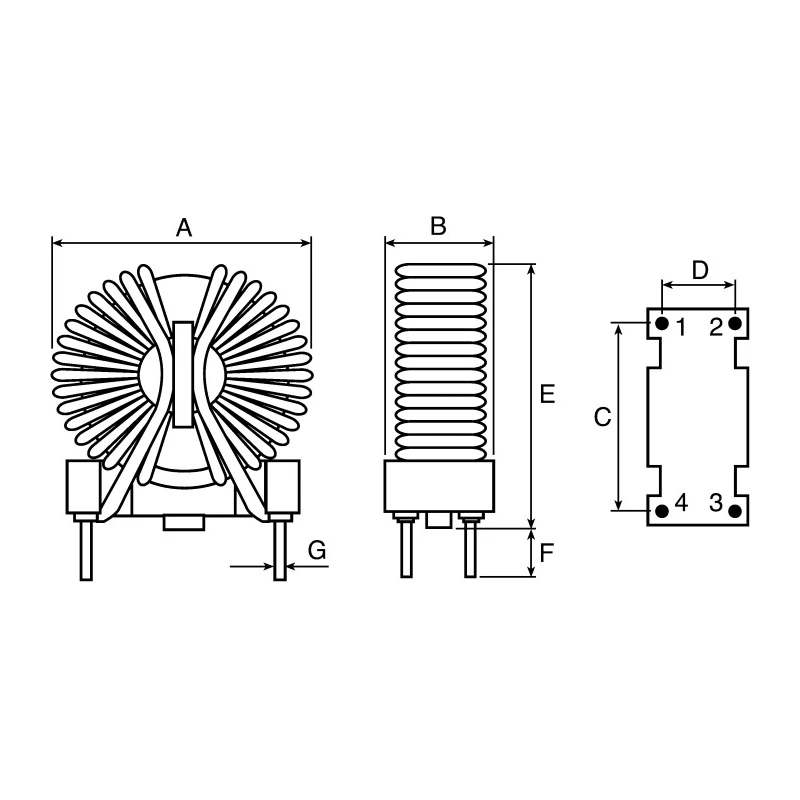

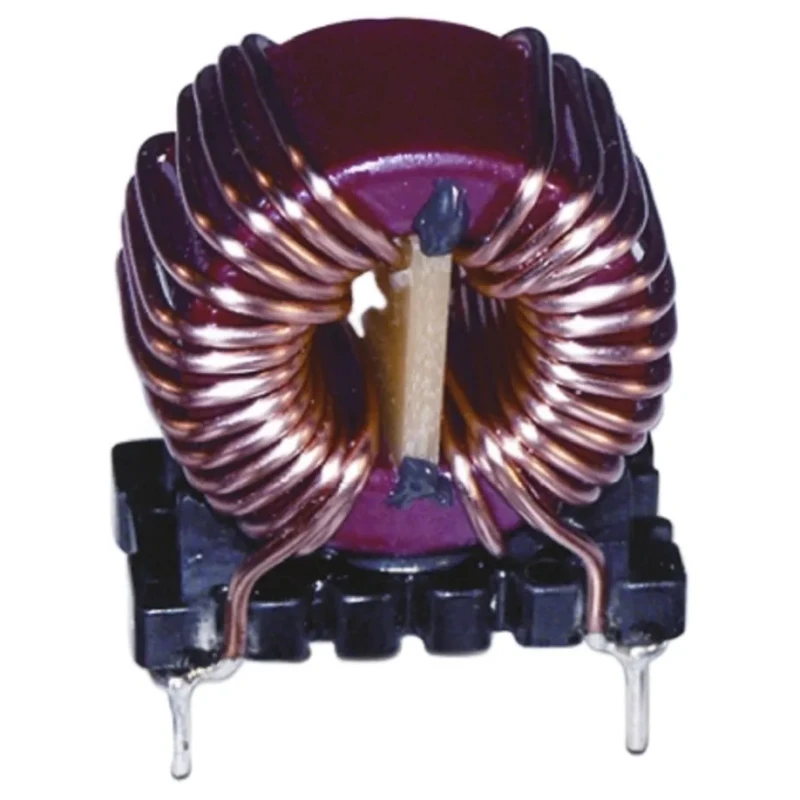

Wurth Elektronik 20 mH Manganese Zinc Leaded Inductor, 500 mA Idc, 1 Ω Rdc, 1500V, Radial Mount, WE-CMB HC 744821120

Name: Wurth Elektronik 20 mH Manganese Zinc Leaded Inductor, 500 mA Idc, 1 Ω Rdc, 1500V, Radial Mount, WE-CMB HC 744821120
Brand: Wurth Elektronik
SKU: 121938
Price: 3.9 USD
Availability: InStock



Category Leaded Inductors Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Diameter	7.5mm
Brand	Wurth Elektronik
Height	17.5mm
Length	15mm
Depth	7.5mm
Mount Type	Radial
Series	WE-CMB HC
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Test Frequency	1kHz
Core Material	Manganese Zinc
Maximum Voltage	1500V
Inductance	20mH
Standards/Approvals	UL 94 V-0
Maximum DC Current	500mA
Maximum DC Resistance	1Ω
Inductance Tolerance	±30 %
Termination Style	Solder
Lead Pitch	10mm
Lead Diameter	0.7mm

Key Features

Compact radial leaded inductor featuring manganese zinc core material.
Maximum operating temperature of 125°C ensures reliability in harsh conditions.
High voltage tolerance up to 1500V suitable for demanding electrical circuits.
Lead pitch measures 10mm with 0.7mm lead diameter for standard PCB compatibility.
Inductance tolerance is ±30% at a test frequency of 1kHz.
Termination style is solder, compliant with UL 94 V-0 flammability standard.
Ideal for suppressing common mode noise and radio interference in power electronics.
Suitable for use in motor filtering, power line input/output filters, and grounding-challenged devices.

Product Description

Wurth Elektronik 744821120 leaded inductor is a precision-engineered 20 mH manganese zinc core component optimized for electrical noise suppression in industrial and manufacturing applications. This radial mount inductor is capable of withstanding a maximum DC current of 500 mA and features a DC resistance of 1 Ω, making it suitable for power line input and output filtering in demanding environments.

The inductor exhibits a wide operating temperature range from -40°C to 125°C, conforming to IEC 60938-2 standards and UL 94 V-0 flame retardant specifications. Its compact design, with a length of 15 mm, diameter of 7.5 mm, and height of 17.5 mm, allows easy integration into a variety of circuit boards, supported by a 10 mm lead pitch and 0.7 mm lead diameter for seamless soldering.

Employing an anti-capacitance coiling technology, the WE-CMB series common mode choke provides high suppression of asymmetrical interferences even at low frequencies. This capability is critical in minimizing radio frequency interference in power electronics and motor control applications.

Applications include use in automotive electronic circuits, power electronics devices lacking grounding, and industrial motor filtering systems. The product's flammability rating and broad 125°C temperature tolerance ensure safe and reliable performance in harsh environments such as manufacturing plants and HVAC systems.

Compact radial design with manganese zinc core for efficient noise suppression. Maximum DC current rating of 500 mA and voltage rating of 1500V. Broad temperature range from -40°C to 125°C suitable for industrial applications.

Compliant with UL 94 V-0 flammability and IEC standards. Suitable for motor filtering and power line noise reduction in manufacturing and commercial installations.

This Wurth Elektronik leaded inductor series offers reliable performance and robustness required for industrial, laboratory, HVAC, and commercial electrical systems. Explore similar components in the Leaded Inductors category for comprehensive solutions.
