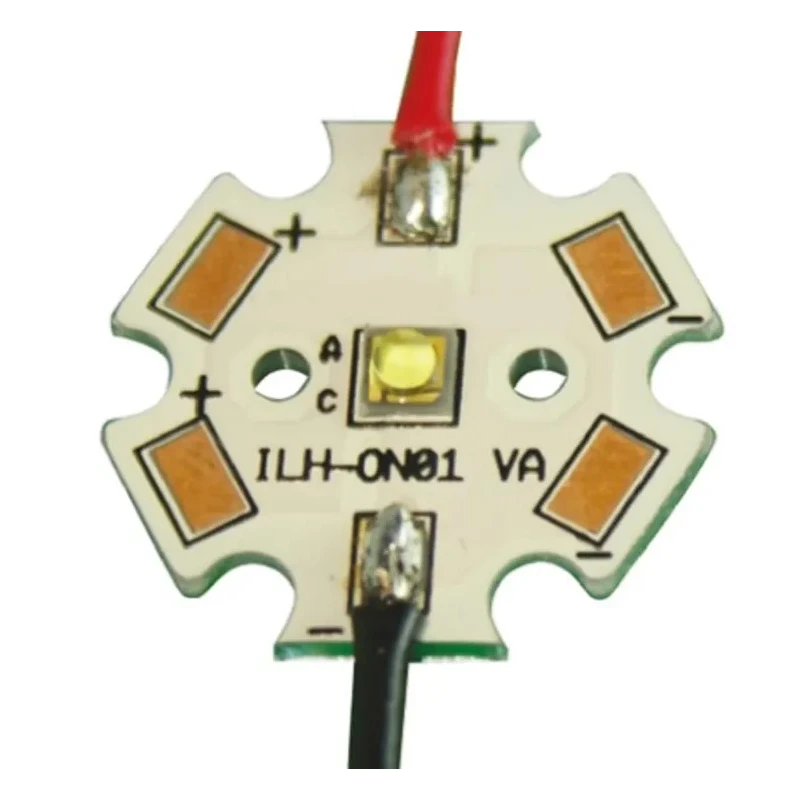

Intelligent LED Solutions OSLON 80 1+ PowerStar LED Array 1-LEDs White LED 5700K ILH-ON01-STWH-SC211-WIR200.
Specifications
| Country of Origin | India |
|---|---|
| Brand | Intelligent LED Solutions |
| Current | 1.3A |
| Model | ILH-ON01-STWH-SC211-WIR200. |
| Connection Type | Solder |
| Output type | Constant Voltage |
| Series | OSLON 80 1+ PowerStar |
| Outside diameter | 20mm |
| Number Of Leds | 1 |
| Power Dissipation | 2.17W |
| Standards/Approvals | RoHS |
| Colour Temperature | 5700k |
| LED Colour | White |
| Fixing Hole Diameter | 2mm |
| Better World Verification | UK Energy Efficiency Label D |
| LED Voltage | 3.2V |
| Typical Luminous Flux | 144lm |
| PowerStar size (L x W x H) | 20mm x 20mm x 3.85mm |
Key Features
- This LED array contains a single Oslon SSL 80 LED with an integral 80° silicone resin lens.
- Operates with a current of 1.3A and provides a typical luminous flux of 144 lumens.
- The device measures 20mm in diameter and 3.85mm thickness for compact application.
- Pre-wired with 200mm connecting wires and supports solder connection type.
- Includes onboard driver and complies with RoHS standards.
- Power dissipation is 2.17W with constant voltage output.
- Secondary optics are included for enhanced beam control.
- Lifetime up to 100,000 hours at 70% brightness.
Product Description
Intelligent LED Solutions ILH-ON01-STWH-SC211-WIR200. OSLON 80 1+ PowerStar LED Array is a high-performance LED device designed for a wide range of industrial and commercial lighting applications. Featuring a single Oslon SSL Square ThinGan LED, this array operates efficiently at currents up to 1.3A with a color temperature of 5700K, providing bright white light with typical luminous flux of 144 lumens.
The compact PowerStar LED array measures 20mm in diameter and 3.85mm in thickness, mounted on an aluminum substrate to ensure superior thermal management. It includes onboard driver circuitry and is pre-wired with 200mm connecting wires for straightforward electrical connections using soldering techniques. The fixing hole diameter of 2mm supports secure installation using M3 screws.
This LED array dissipates 2.17 watts of power and utilizes a constant voltage output, making it compatible with various power supply configurations. It conforms to RoHS safety and environmental standards and incorporates secondary optics for enhanced beam shaping and control, improving light distribution for targeted applications.
Oslon 80 1+ PowerStar LEDs deliver long life spans close to 100,000 hours with maintained brightness, reducing maintenance and replacement costs. Their robust construction and thermal design minimize overheating risks when mounted on suitable heat sinks.
Ideal for use in industrial, retail, architectural, entertainment, and residential lighting, this LED array supports flexible chain linking to create larger or longer light sources. Applications include general lighting, decorative installations, task lighting, spotlights, downlighters, and display or retail lighting solutions.
This LED array contains a single Oslon SSL 80 LED with an integral 80° silicone resin lens. Operates with a current of 1.3A and provides a typical luminous flux of 144 lumens. The device measures 20mm in diameter and 3.85mm thickness for compact application.
Pre-wired with 200mm connecting wires and supports solder connection type. Includes onboard driver and complies with RoHS standards. Power dissipation is 2.17W with constant voltage output. Secondary optics are included for enhanced beam control.
Lifetime up to 100,000 hours at 70% brightness. Suitable for various lighting uses across industrial, commercial, and entertainment sectors. For additional technical details such as recommended heat sinks, power supplies, and secondary lenses, please consult the official datasheet from Intelligent LED Solutions.
Explore more LED Arrays and lighting solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The typical luminous flux of this LED array is 144 lumens.
This model operates with a current of 1.3A.
The power dissipation of this LED array is 2.17 watts.
The color temperature of the emitted light is 5700K.
The LED array measures 20mm in diameter and 3.85mm in thickness.
It supports a solder connection type for electrical connections.
Yes, it includes secondary optics for enhanced beam control.
The fixing hole diameter is 2mm, suitable for M3 screws.
This model complies with RoHS standards.
The expected lifetime of this LED array is up to 100,000 hours at 70% brightness.
It provides a constant voltage output.
The country of origin for this LED array is India.
