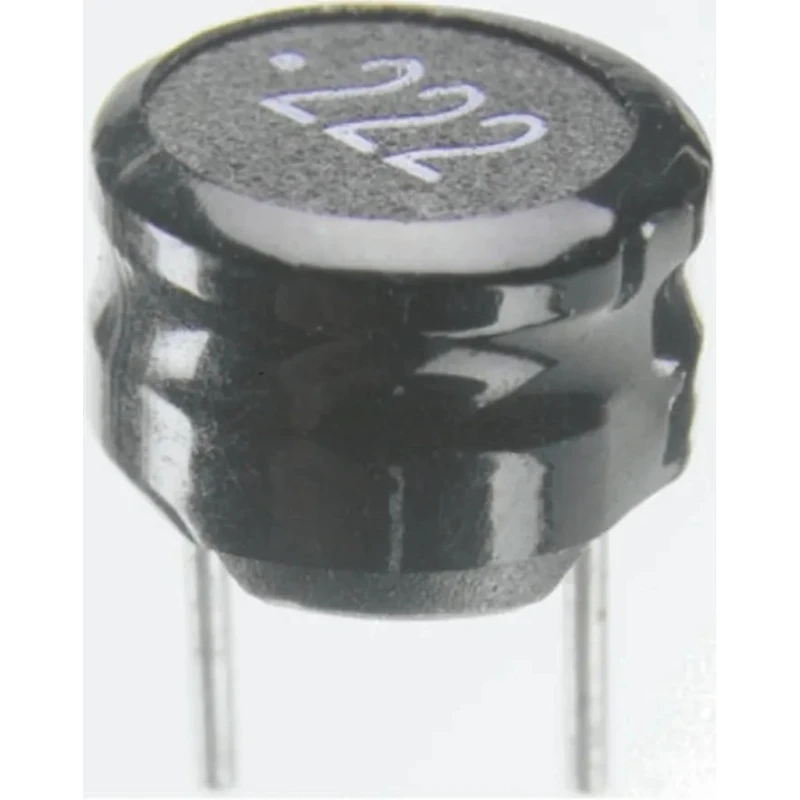

Wurth Elektronik 2.2 mH Ferrite Leaded Inductor Radial Mount 210 mA Max DC Current 11 Ω Max DC Resistance WE-TI 744741222

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik 2.2 mH Ferrite Leaded Inductor Radial Mount 210 mA Max DC Current 11 Ω Max DC Resistance WE-TI 744741222

Name: Wurth Elektronik 2.2 mH Ferrite Leaded Inductor Radial Mount 210 mA Max DC Current 11 Ω Max DC Resistance WE-TI 744741222
Brand: Wurth Elektronik
SKU: 121943
Price: 1.36 USD
Availability: InStock



Category Leaded Inductors Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Diameter	8.5mm
Brand	Wurth Elektronik
Operating Temperature	-25°C → +85°C
Height	6mm
Length	8mm
Depth	5.5mm
Packaging	Tray
Mount Type	Radial
Series	WE-TI
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Test Frequency	1kHz
Core Material	Ferrite
Inductance	2.2mH
Standards/Approvals	RoHS
Maximum DC Current	210mA
Maximum DC Resistance	11Ω
Inductance Tolerance	±10 %
Termination Style	Solder
Maximum Self Resonant Frequency	1.6MHz
Lead Pitch	5mm
Lead Diameter	0.65mm
Low current radial inductor,2.2mH 50mABrand	NEUTRAL
Wurth Elektronik 2.2 mH Ferrite Leaded Inductor, Max SRF	1.6 MHz, 210 mA Idc, 11 Ω Rdc, WE-TI

Key Features

Radial leaded inductor with ferrite core designed for signal filtering.
Maximum DC resistance of 11 ohms for efficient performance.
Standardized lead pitch of 5 mm compatible with various PCB layouts.
Rated for operating temperatures from -25°C to 85°C suitable for diverse environments.
Maximum self-resonant frequency at 1.6 MHz to support high-frequency applications.
Lead diameter of 0.65 mm ensures reliable soldering connections.
RoHS compliant with tray packaging for safe transport and storage.

Product Description

Wurth Elektronik 744741222 is a 2.2 mH ferrite leaded inductor featuring a radial mount design optimized for signal filtering and power supply applications. This component supports a maximum DC current of 210 mA and exhibits a maximum DC resistance of 11 ohms, ensuring efficient electrical performance in compact form factors.

The inductor has a diameter of 8.5 mm, length of 8 mm, and height of 6 mm, with a lead pitch of 5 mm which is standardized for seamless integration into printed circuit boards using radial through-hole mounting technology.

Constructed with a ferrite core material, it provides high saturation capabilities while maintaining stable inductance with a ±10% tolerance at a testing frequency of 1 kHz. It operates reliably within a temperature range of -25°C to +85°C, making it suitable for various industrial, electronic, and power management environments.

This Wurth WE-TI series inductor complies with RoHS environmental standards and is supplied in tray packaging to protect the device during shipment and handling. Radial leaded inductor with ferrite core designed for signal filtering.

Maximum DC resistance of 11 ohms for efficient performance. Standardized lead pitch of 5 mm compatible with various PCB layouts. Compact dimensions suitable for space-constrained designs. Operating temperature range from -25°C to 85°C.

Maximum self-resonant frequency of 1.6 MHz for high-frequency use. Lead diameter of 0.65 mm ensures reliable soldering connections. RoHS compliant and supplied in tray packaging for safety.

This component is ideal for industrial and electronics manufacturing applications including switching power supplies and signal filtering circuits. It caters to engineers and designers requiring reliable passive components with stable electrical characteristics.
