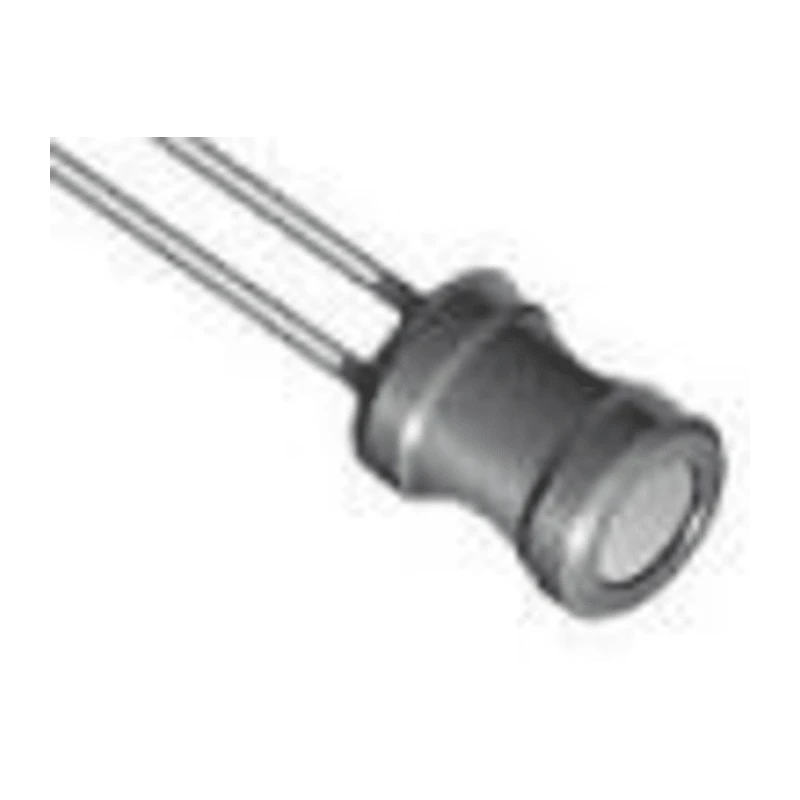

Bourns 1 mH Ferrite Leaded Inductor, Max Self Resonant Frequency 1.9 MHz, Quality Factor 55, 200 mA DC RLB0912-102KL
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 8.7mm |
| Brand | Bourns |
| Height | 10mm |
| Length | 15mm |
| Model | RLB0912-102KL |
| Depth | 10mm |
| Packaging | Box |
| Mount Type | Radial |
| Series | RLB |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Test Frequency | 252kHz |
| Core Material | Ferrite |
| Inductance | 1mH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 200mA |
| Maximum DC Resistance | 4.3Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Axial |
| Maximum Self Resonant Frequency | 1.9MHz |
| Minimum Quality Factor | 55 |
| Lead Pitch | 5mm |
| Lead Diameter | 0.65mm |
| Bourns 1 mH Ferrite Leaded Inductor, Max SRF | 1.9 MHz, Q:55, 200 mA Idc, 4.3 Ω Rdc, RLB |
Key Features
- Inductance value of 1 millihenry with ±10% tolerance.
- Rated maximum DC current of 200 mA ensuring suitability for demanding applications.
- Maximum DC resistance of 4.3 ohms minimizes power loss.
- Ferrite core material provides stable inductance and temperature performance.
- Axial lead termination and radial mount type enable easy PCB installation.
- Operates reliably between -40°C and 105°C for varied environments.
- Complies with RoHS standards ensuring environmental safety.
- Suitable for power supplies, DC/DC converters, and general use applications.
Product Description
Bourns RLB0912-102KL is a radial leaded inductor with an inductance of 1 mH and a ferrite core, engineered for reliable and efficient performance in high current circuit environments. It features a maximum self resonant frequency of 1.9 MHz and a quality factor of 55, which ensures optimal signal integrity and minimal energy loss during operation.
This inductor is designed for use in power supplies, DC/DC converters, and general electronics applications requiring stable inductance under varying electrical loads. Its maximum DC current rating of 200 mA and maximum DC resistance of 4.3 Ω allow it to handle demanding current levels with minimized heat generation.
The component features an axial termination style with radial mounting, simplifying PCB integration. Key physical dimensions include a length of 15 mm, diameter of 8.7 mm, height of 10 mm, and lead pitch of 5 mm. The lead diameter is 0.65 mm, contributing to mechanical robustness and reliable solder joint formation.
Operating temperatures range from -40°C to 105°C, making the RLB0912-102KL suitable for diverse environments, including industrial and commercial electronics systems. It complies with RoHS regulations, ensuring it meets contemporary environmental and safety standards.
The inductor is packaged in boxes, convenient for inventory and handling. The ferrite core material underpins the excellent electrical performance, providing high permeability and low core losses.
Inductance of 1 mH with ±10% tolerance. Max DC current rating of 200 mA. Max DC resistance of 4.3 Ω. Ferrite core material for stable performance. Axial lead termination with radial mount. Compact size: 15 mm length and 10 mm height.
Operating temperature range -40°C to 105°C. RoHS compliant for environmental safety. Packaging: Box. Suitable for power supplies and DC/DC converters.
This Bourns ferrite leaded inductor is ideal for electronic component assembly lines focusing on power and signal conditioning. It is widely used in industrial machinery, laboratory equipment, and consumer electronics manufacturing. Browse more electronics components and inductors in the EnvMart collection for comprehensive industrial solutions.
Explore more products in our Leaded Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 1 millihenry (mH) with a tolerance of ±10%.
This inductor has a maximum DC current rating of 200 mA, making it suitable for demanding applications.
The maximum self-resonant frequency of this inductor is 1.9 MHz, which helps ensure optimal signal integrity.
The dimensions of this inductor are 15 mm in length, 8.7 mm in diameter, and 10 mm in height, with a lead pitch of 5 mm.
The maximum DC resistance is 4.3 ohms, which minimizes power loss during operation.
It operates reliably within a temperature range of -40°C to 105°C, suitable for various environments.
This inductor features an axial lead termination style, allowing for easy PCB installation.
The core material is ferrite, which provides stable inductance and temperature performance.
It is suitable for use in power supplies, DC/DC converters, and general electronics applications.
The minimum quality factor for this inductor is 55, indicating its efficiency in energy storage.
Yes, it complies with RoHS standards, ensuring it meets contemporary environmental safety requirements.
This inductor is packaged in boxes, which is convenient for inventory and handling.
