Omron PCB Power Relay 24V DC Coil, 5A, SPST, PCB Mount, Model G6B-1174P-FD-US DC24

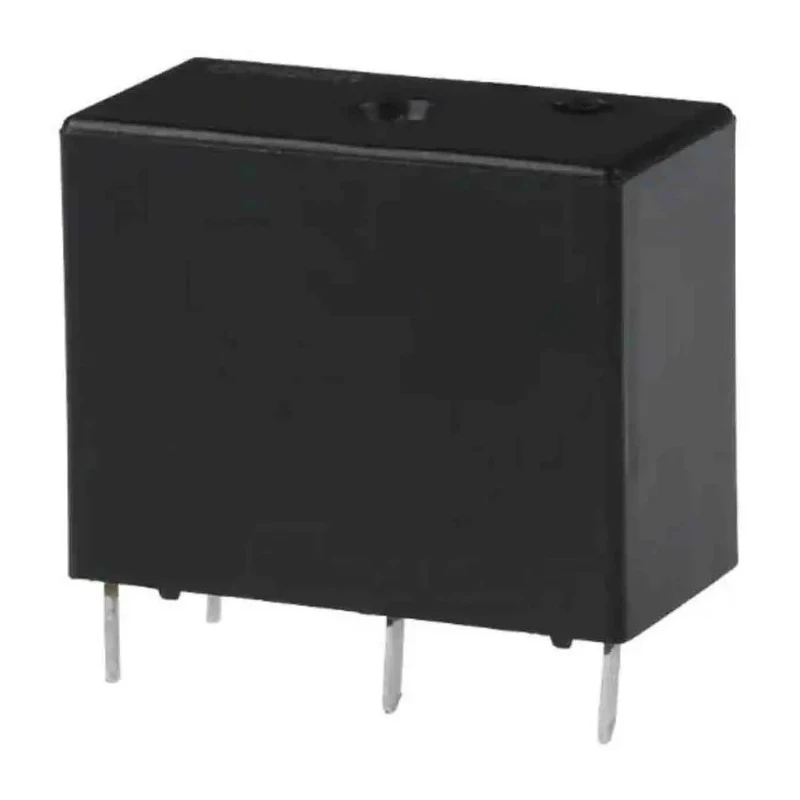

The Omron G6B-1174P-FD-US DC24 is a miniature PCB Power Relay engineered for reliable switching in industrial and automation electronic applications. Featuring a 24V DC coil, it is designed to efficiently control circuits requiring a maximum switching current of up to 5A. The single pole, single throw (SPST) configuration ensures straightforward integration when simple on-off switching is required.

This relay stands out with its superior dielectric strength - up to 3,000V - which delivers enhanced insulation performance and safety across a wide spectrum of electronic devices. The robust construction and fully sealed enclosure provide protection against dust and environmental contaminants, supporting long-term operational integrity even in demanding conditions.

Key technical highlights include a 5A switching current, SPST contacts, and PCB pin terminals that enable efficient assembly directly onto printed circuit boards. The relay supports both DC and AC switching voltages, allowing versatility for various control and load types in industrial panels, automation controllers, and signal switching circuits. The coil resistance of 2.9kΩ ensures controlled operation with minimal power consumption, at a typical coil power rating of 200mW.

With compact dimensions - 20mm length, 9.9mm width, and 16mm height - the G6B-1174P-FD-US DC24 enables flexible PCB layout in tight spaces. The relay operates effectively at temperatures ranging from minus 25°C up to 70°C, and resists contact wear thanks to its silver alloy contact material, providing low resistance and extended life during repeated operations. Contact resistance is rated at 30mΩ maximum, supporting consistent electrical performance.

Its PCB mount form factor and SPST switching make this relay an essential element in circuit designs for industrial controllers, signal isolation, machine automation, safety interlocks, and process control equipment. The relay's compliance with RoHS standards supports use in regulated manufacturing environments.

The Omron G6B-1174P-FD-US DC24 offers a balance of compact size, high switching capability, robust insulation, and reliable coil control for engineers seeking a compact and durable PCB relay solution for demanding environments.
