Murata Power Solutions 2.2 mH Leaded Inductor Radial Mount Type Max SRF:600 kHz Q:33 1.4 A IDC 622 mΩ RDC 1422514C

Murata Power Solutions 1422514C leaded inductor offers a 2.2 mH inductance and is designed for demanding power line applications such as switching regulators, filters, and suppression circuits. The radial mount type and robust construction allow for reliable use in industrial and electronics manufacturing environments.

This high current inductor has a maximum DC current rating of 1.4 A, with a low maximum DC resistance of 622 mΩ to reduce power dissipation and improve efficiency. The device features a quality factor (Q) of 33 and a maximum self-resonant frequency of 600 kHz, enabling stable operation over a wide frequency range.

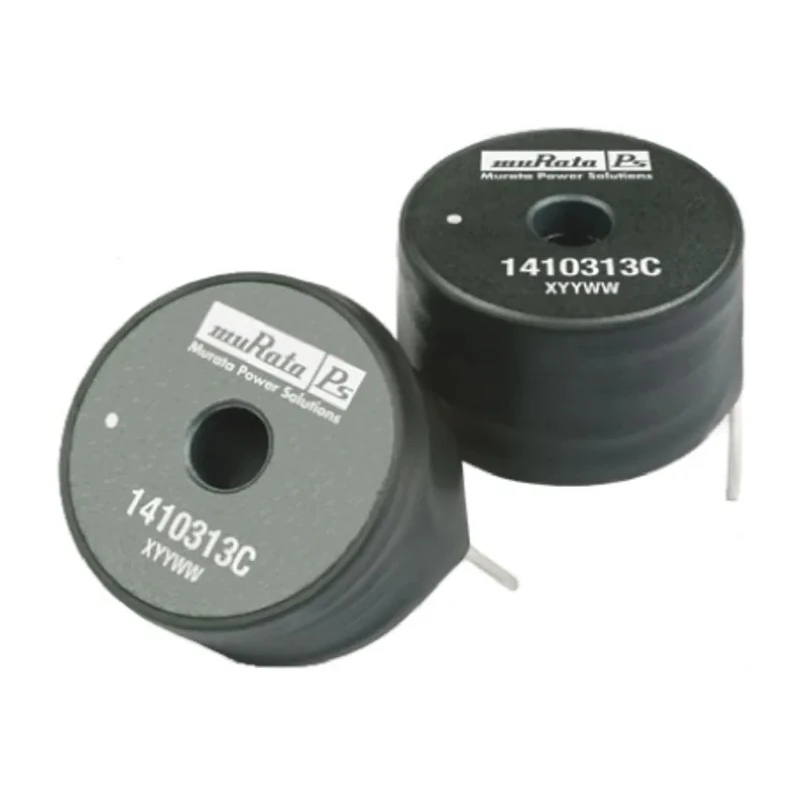

Manufactured with high saturation flux density materials, it is suitable for PCB or chassis mounting using a non-magnetic fastener through a central fixing hole. Leads are easy-strip pre-tinned enamelled copper, with a diameter of 0.67 mm, facilitating solder connections.

The inductor’s physical dimensions include a diameter of 29.8 mm, length of 32.6 mm, height of 23.3 mm, depth of 31.3 mm, and a lead pitch of 28.7 mm. It operates reliably within a temperature range of -40°C to +85°C, with an inductance tolerance of ±10% to ensure consistent performance.

Compliance with RoHS standards ensures environmentally safe manufacturing practices. This inductor is ideal for use in electronic power components, industrial controls, HVAC systems, and various manufacturing applications.

Radial type leaded inductor with 2.2 mH inductance. Maximum DC current of 1.4 A and DC resistance of 622 mΩ. High Q factor of 33 and self-resonant frequency up to 600 kHz. Operating temperature range -40°C to +85°C. RoHS compliant and suitable for industrial applications.
