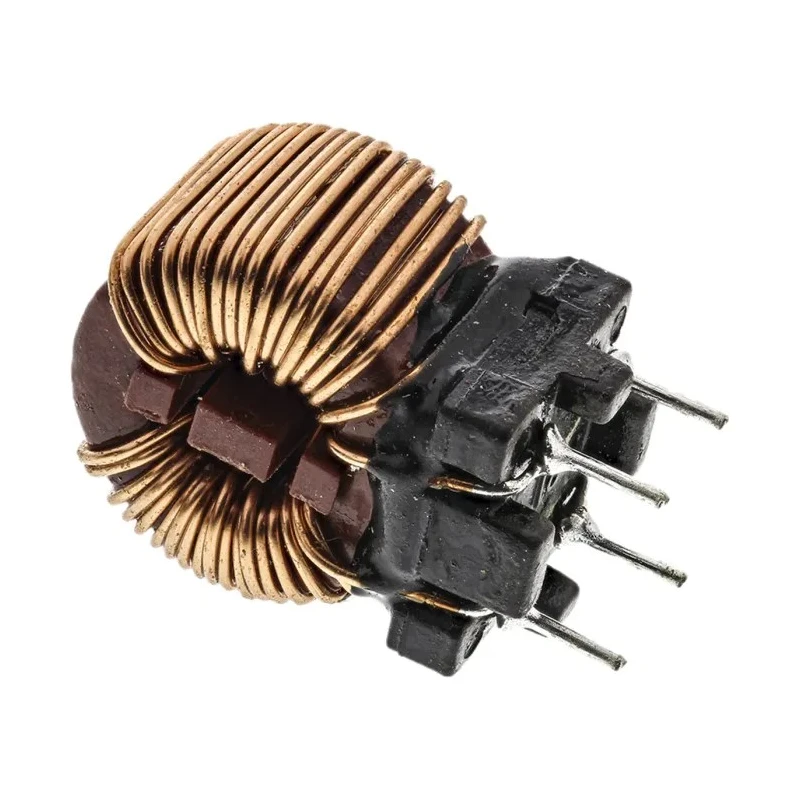

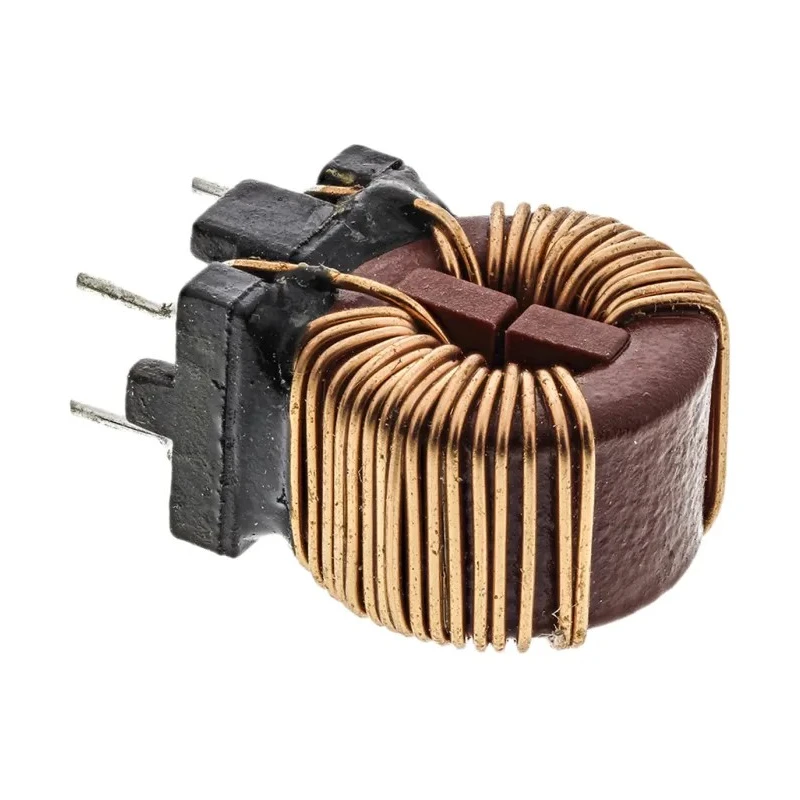

Wurth Elektronik 2.2 mH Manganese Zinc Leaded Inductor 2 A Idc 70 mΩ Rdc 250V ac WE-CMB 744822222

Wurth Elektronik 744822222 LEADED INDUCTOR 2.2 mH 2 A Idc 70 mΩ Rdc 250V AC WE-CMB series is designed for efficient suppression of asymmetrical interferences in motors, power electronics, and devices lacking ground connections.

This radial mount common mode choke features a manganese zinc core, providing compact size with high current capacity and broadband screening via an anti-capacitance coiling technique.

The device operates reliably over a wide temperature range from -40°C up to 125°C, with a maximum allowable voltage of 250V AC and a test frequency of 50Hz.

Its compact dimensions (17.5 mm diameter, 22 mm height, 17.5 mm length, 13 mm depth) and lead pitch of 7.7 mm accommodate dense PCB layouts while ensuring secure solder termination with 0.7 mm diameter leads.

Compliant with key standards such as ENEC 10, REACH, RoHS, and VDE, this inductor meets stringent safety and environmental requirements. Ideal industrial, laboratory, power electronics, and HVAC applications benefit from this component’s robust design and noise suppression capabilities.

Compact radial mount design with manganese zinc core material. Maximum operating temperature of 125°C ensures durability. Suitable for suppression of common mode noise and radio interference. Rated for 250 V AC voltage and operates at test frequency of 50 Hz.

Complies with ENEC 10, REACH, RoHS, and VDE standards. Lead pitch of 7.7 mm with 0.7 mm lead diameter for secure solder termination. Dimensions include 17.5 mm diameter, 22 mm height, 17.5 mm length, and 13 mm depth. Wide temperature range from -40°C to +125°C supports industrial applications.
