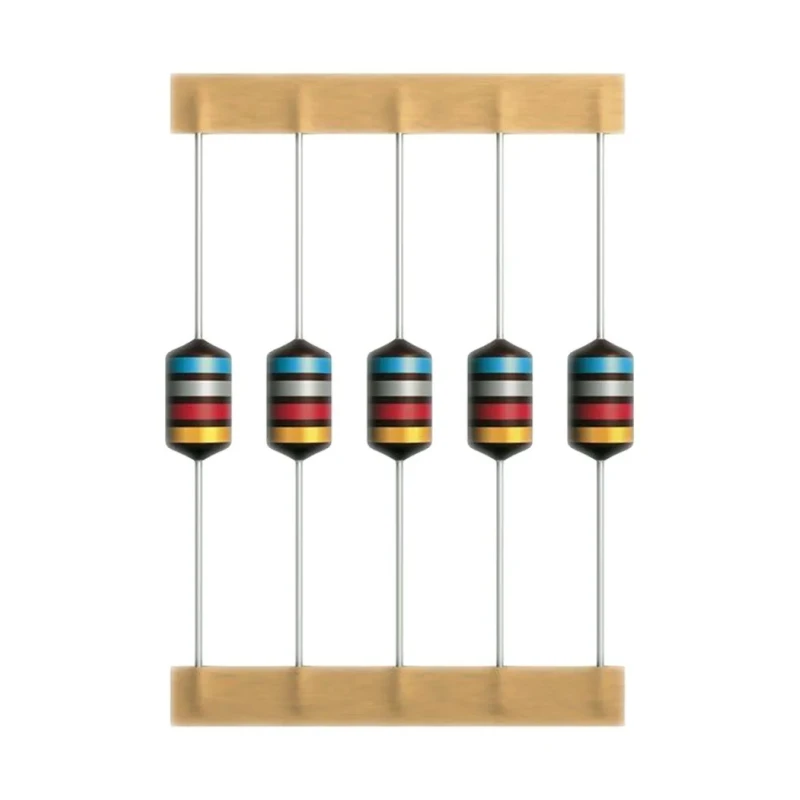

TDK 2.2 mH Ferrite Leaded Inductor Max Self Resonant Frequency 800 kHz 250 mA DC Current HLBC B82145A1225J000

Free Delivery in India | Lowest Global Shipping Charges

TDK 2.2 mH Ferrite Leaded Inductor Max Self Resonant Frequency 800 kHz 250 mA DC Current HLBC B82145A1225J000



Category Leaded Inductors Brand TDK Condition New

Specifications

Country of Origin	India
Diameter	6.5mm
Brand	TDK
Height	6.5mm
Length	12mm
Model	B82145A1225J000
Depth	6.5mm
Packaging	Tape & Reel
Mount Type	Axial
Series	HLBC
Maximum Operating Temperature	40°C
Minimum Operating Temperature	20°C
Test Frequency	0.25MHz
Core Material	Ferrite
Inductance	2.2mH
Standards/Approvals	IEC, RoHS
Maximum DC Current	250mA
Maximum DC Resistance	8Ω
Inductance Tolerance	±5 %
Termination Style	Axial
Maximum Self Resonant Frequency	800kHz
Minimum Quality Factor	60
Lead Pitch	15mm
Lead Diameter	0.8mm
TDK 2.2 mH Ferrite Leaded Inductor, Max SRF	800 kHz, Q:60, 250 mA Idc, 8 Ω Rdc, HLBC

Key Features

The inductor features a ferrite core with axial termination style.
Inductance tolerance is ±5%, ensuring stable performance.
Maximum DC resistance is 8 Ω enhancing current handling capability.
Package supplied on tape and reel suitable for automated insertion.
This component is compliant with IEC and RoHS standards.
Core dimensions include diameter and height of 6.5 mm and length of 12 mm.
Lead pitch is 15 mm with a lead diameter of 0.8 mm.
Designed for interference suppression and decoupling in electronic circuits.

Product Description

TDK B82145A1225J000 is a 2.2 mH ferrite leaded inductor designed with axial mounting to provide effective interference suppression and decoupling in various electronic and power applications. This component features a large ferrite drum core wrapped with enamel copper wire, coated with a flame retardant lacquer to enhance durability and electrical performance.

The inductor is rated for a maximum DC current of 250 mA and a maximum DC resistance of 8 Ω, making it suitable for circuits requiring moderate current handling capabilities. Its maximum self-resonant frequency of 800 kHz and minimum quality factor of 60 ensures efficient filtering and signal integrity in power management and communication electronics.

The component dimensions include a 6.5 mm diameter core with 6.5 mm height and 12 mm length. The leads are axially mounted with a pitch of 15 mm and a diameter of 0.8 mm, electroplated with nickel and pure tin for reliable soldering performance. Packaging is tape and reel, facilitating automated component placement and improved production efficiency.

Compliant with IEC and RoHS standards, this inductor is ideal for use in interference suppression, energy-saving lamps, decoupling circuits, and entertainment electronics. It operates reliably within a temperature range of 20°C to 40°C.

The inductor features a ferrite core with axial termination style. Inductance tolerance is ±5%, ensuring stable performance. Maximum DC resistance is 8 Ω enhancing current handling capability. Package supplied on tape and reel suitable for automated insertion.

This component is compliant with IEC and RoHS standards. Core dimensions include diameter and height of 6.5 mm and length of 12 mm. Lead pitch is 15 mm with a lead diameter of 0.8 mm. Designed for interference suppression and decoupling in electronic circuits.

Suitable operating temperature range from 20°C to 40°C. Minimum quality factor (Q) of 60 ensures efficient performance at test frequency. Explore a wide range of electronic components including Leaded Inductors at EnvMart for your industrial, manufacturing, and electronic project needs.
