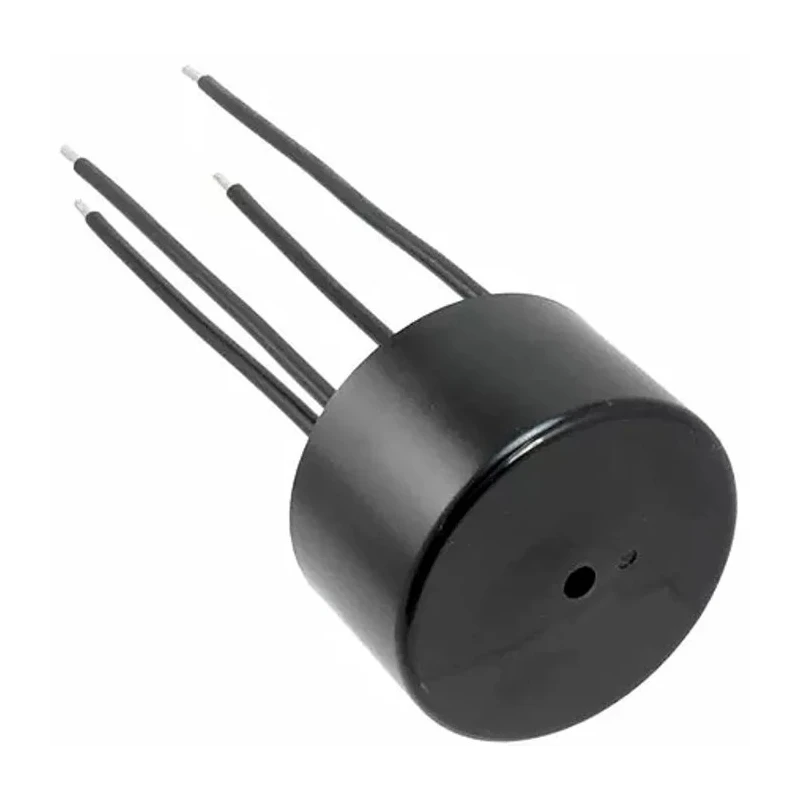

Schaffner 2.8 mH Common Mode Choke 25 A Idc 6.4 mΩ Rdc 600V ac Lead Wire Mount RD7127-25-2M8

Free Delivery in India | Lowest Global Shipping Charges

Schaffner 2.8 mH Common Mode Choke 25 A Idc 6.4 mΩ Rdc 600V ac Lead Wire Mount RD7127-25-2M8

Name: Schaffner 2.8 mH Common Mode Choke 25 A Idc 6.4 mΩ Rdc 600V ac Lead Wire Mount RD7127-25-2M8
Brand: Schaffner
SKU: 332924
Price: 57.23 USD
Availability: InStock



Category Mounting Equipment Brand Schaffner Condition New

Specifications

Country of Origin	India
Diameter	70mm
Brand	Schaffner
Height	40mm
Length	190mm
Model	RD7127-25-2M8
Depth	40mm
Packaging	Bulk
Mount Type	Lead Wire
Series	RD
Maximum Operating Temperature	110°C
Minimum Operating Temperature	-25°C
Maximum Voltage	600V ac
Inductance	2.8mH
Standards/Approvals	RoHS, UL
Maximum DC Current	25A
Maximum DC Resistance	6.4mΩ
Inductance Tolerance	-30 to 50 %
Termination Style	Wire
Maximum Self Resonant Frequency	400Hz
Lead Diameter	2.4mm
Schaffner 2.8 mH Common Mode Choke, Max SRF	400 Hz, 25 A Idc, 6.4 mΩ Rdc 600V ac, RD

Key Features

The choke features a maximum self-resonant frequency of 400 Hz.
It has a low DC resistance of 6.4 milliohms to minimize power loss.
Constructed with lead wire mounting and a lead diameter of 2.4 mm.
Designed for operating temperatures ranging from -25°C to 110°C.
Its compact dimensions include a diameter and depth of 70 mm and height of 40 mm respectively.
Compliance with RoHS and UL standards ensures safety and environmental friendliness.
Ideal for filtering and decoupling tasks in electronic and power applications.
Suitable for use in filter networks and low power switch mode regulators.

Product Description

Schaffner RD7127-25-2M8 is a 2.8 mH Common Mode Choke designed for attenuating common-mode and asymmetric interference in power lines. It supports a maximum DC current of 25 A and a maximum operating voltage of 600 V AC, making it suitable for various industrial and electronic applications.

The choke features a low DC resistance of 6.4 mΩ, which ensures minimal power loss and better efficiency. It has a maximum self-resonant frequency of 400 Hz, providing effective noise suppression within its operational bandwidth.

Measuring 70 mm in diameter and 40 mm in height and depth, this choke is constructed with lead wire mounting and a lead diameter of 2.4 mm for reliable electrical connections. It can operate reliably across a temperature range from -25°C to 110°C, offering durability in various environmental conditions.

Certified to meet RoHS and UL standards, the RD7127-25-2M8 is designed for use in filter networks, decoupling tasks, and low power switch mode regulators in industrial, laboratory, and commercial power supply systems.

The choke attenuates noise in AC power lines by being connected in series with phase and neutral wires. Its symmetrical noise attenuation is enhanced by the leakage inductance of the windings. Available in bulk packaging suitable for manufacturing and assembly uses.

Part of the reliable RD series of Schaffner leaded inductors and chokes.

This product is ideal for engineers and technicians designing filter networks and noise suppression solutions in electronic and electrical power systems. Explore the Electronics Components category at EnvMart for related power connectors and inductors.

Explore more products in our Mounting Equipment category.
