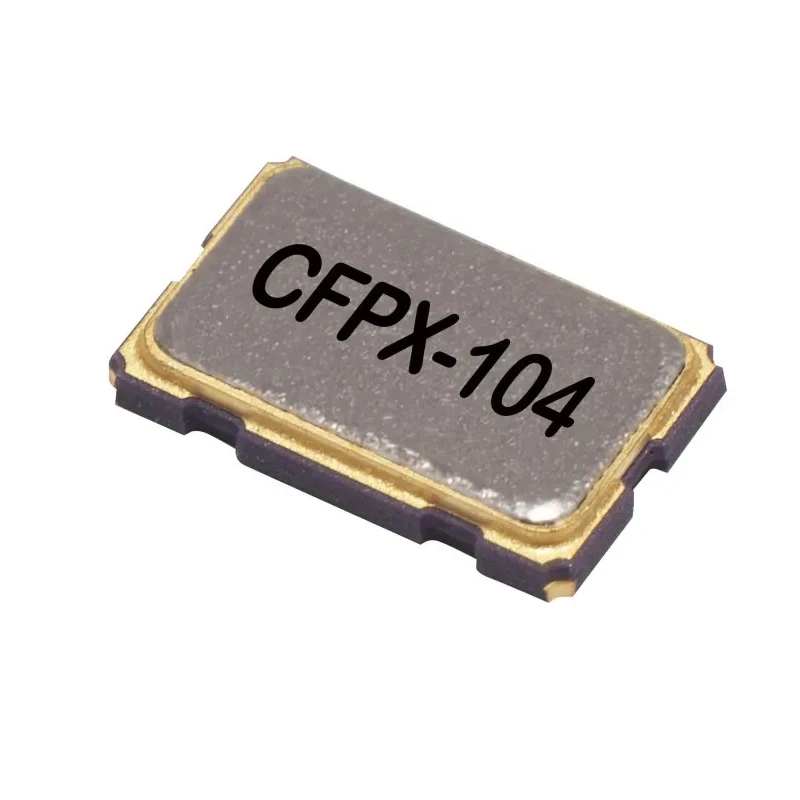

IQD 8 MHz Crystal ±20 ppm Surface Mount 4-Pin Package 5 mm x 3.2 mm x 1 mm LFXTAL061627

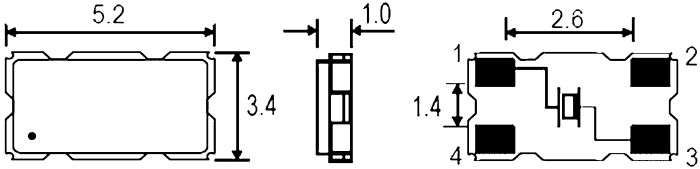

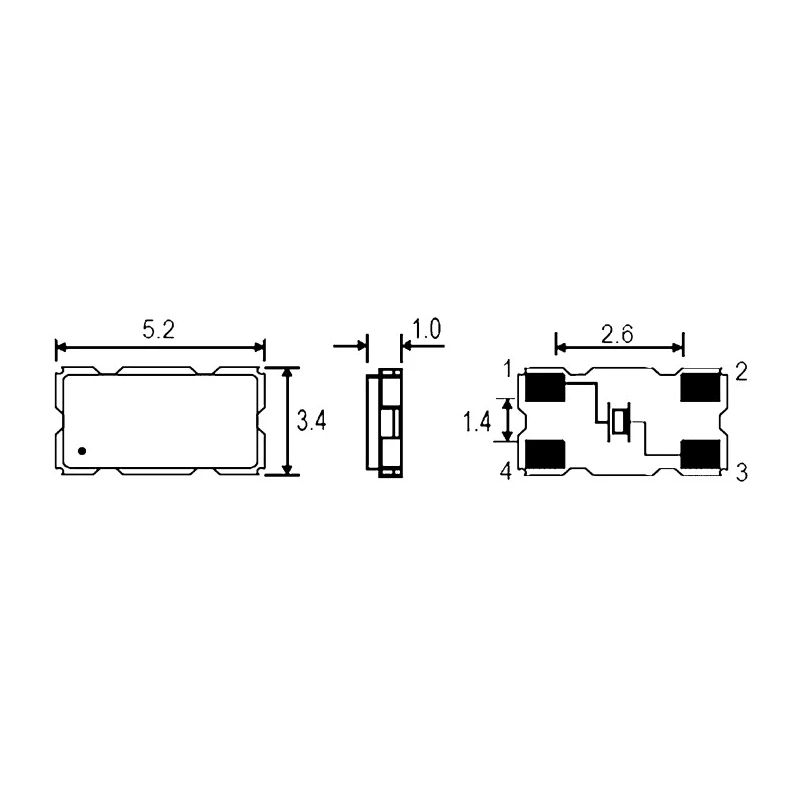

The IQD LFXTAL061627 8 MHz Crystal is a high precision surface mount component designed for use in electronic timing and frequency control applications. Featuring a 4-pin package with compact dimensions of 5 mm x 3.2 mm x 1 mm, this crystal unit provides stable frequency output with a tolerance of ±20 ppm and a frequency stability of ±30 ppm.

This crystal is optimized with a load capacitance of 16 pF and a series resistance of 150 Ω, delivering consistent performance across its operating temperature range from -40 °C to 85 °C. The surface mount packaging and tape and reel format facilitate seamless integration into automated PCB assembly lines, enhancing production efficiency.

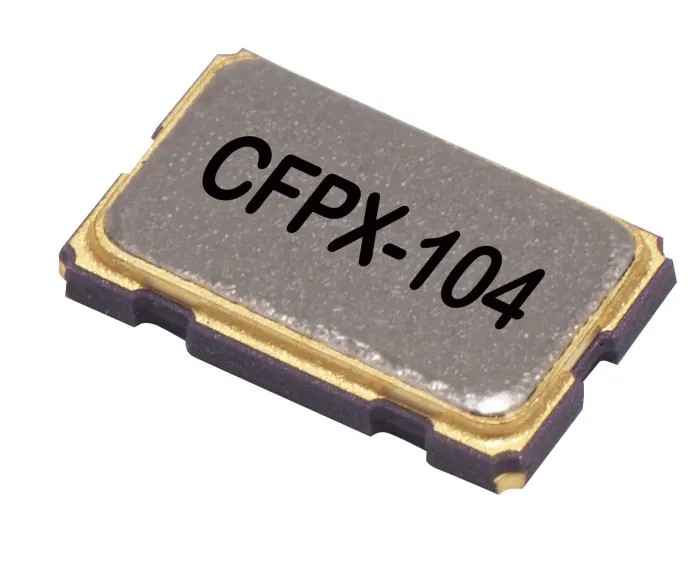

The CFPX-104 series crystal unit complies with RoHS standards, making it suitable for environmentally conscious manufacturing environments. It is designed to serve diverse industrial, commercial, and electronic development applications that require reliable timing sources.

Applications include industrial instrumentation, communications hardware, embedded systems, and other electronic devices where precise frequency control is crucial.

The surface mount design reduces PCB real estate and assembly cost, making the IQD LFXTAL061627 an ideal choice for both prototype development and mass production in electronic manufacturing.

Standard frequency is 8 MHz, suitable for precise timing tasks. Surface mount design simplifies integration on modern PCBs. Operating temperature range of -40 °C to 85 °C for demanding environments. RoHS compliant for environmental safety standards.
