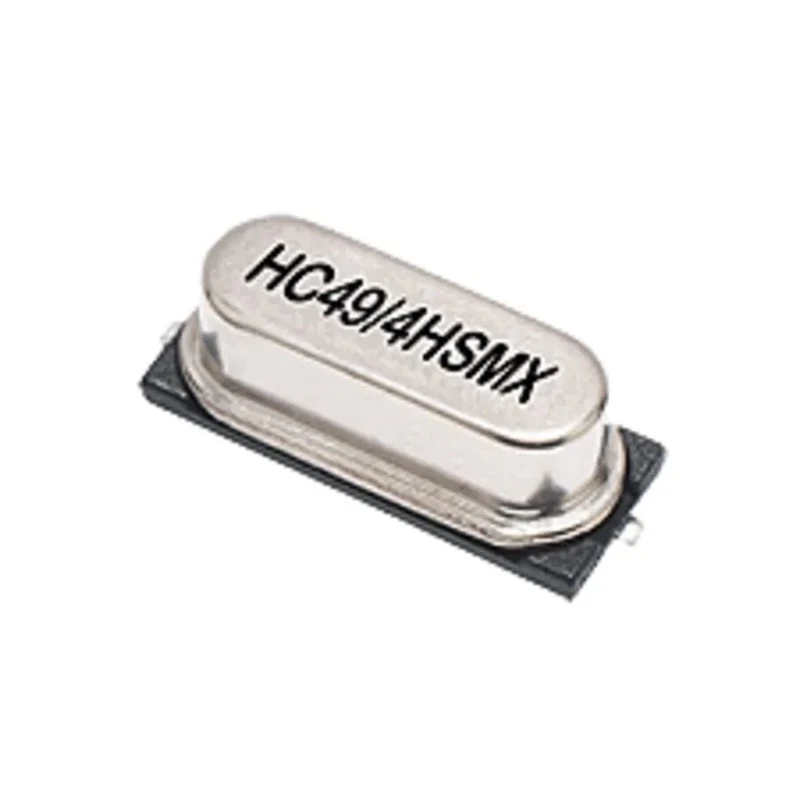

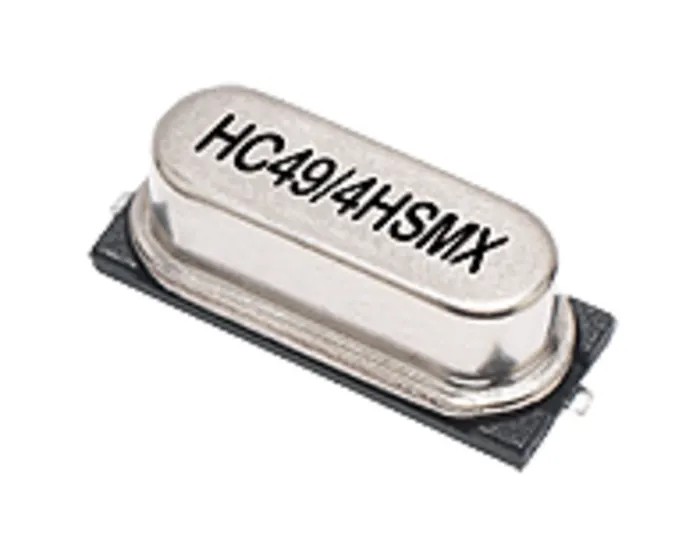

IQD 10 MHz Crystal Unit Surface Mount 2-Pin ±30 ppm Frequency Tolerance LFXTAL003166

IQD LFXTAL003166 is a 10 MHz crystal unit designed for surface mount applications with a 2-pin gull wing package. It offers a frequency tolerance of ±30 ppm and frequency stability of ±50 ppm, making it ideal for precise electronic oscillators. The crystal is resistance welded and hermetically sealed in an inert atmosphere with glass to metal seals on its leads, enhancing durability and reliability.

The compact package measures 11.4 mm in length, 4.9 mm in width, and 4.3 mm in height, fitting standard PCB footprints. Its load capacitance is 16 pF, suitable for a wide range of electronic devices. The crystal unit supports a minimum operating temperature of -10°C and a maximum of 60°C, ensuring stable performance across typical operating environments.

With a series resistance of 40 Ω, the device maintains signal integrity for timing and frequency control applications. This crystal unit complies with REACH and RoHS standards, assuring environmentally friendly manufacturing processes. It is not certified for automotive applications.

Typical industrial use cases include electronics manufacturing, communication devices, instrumentation, and control systems requiring precise frequency references. The surface mount 2-pin design allows automated assembly in high-volume production.

Industry standard SMD crystal sealed hermetically for durability. Resistance welded glass to metal seals ensure lead integrity. Compact surface mount dimensions for PCB integration. Load capacitance of 16 pF for compatibility with timing circuits.

Wide operating temperature range -10°C to 60°C for reliability. Series resistance of 40 Ω supports signal quality. Compliant with REACH and RoHS environmental standards. Suitable for industrial, communications, and instrumentation applications.
