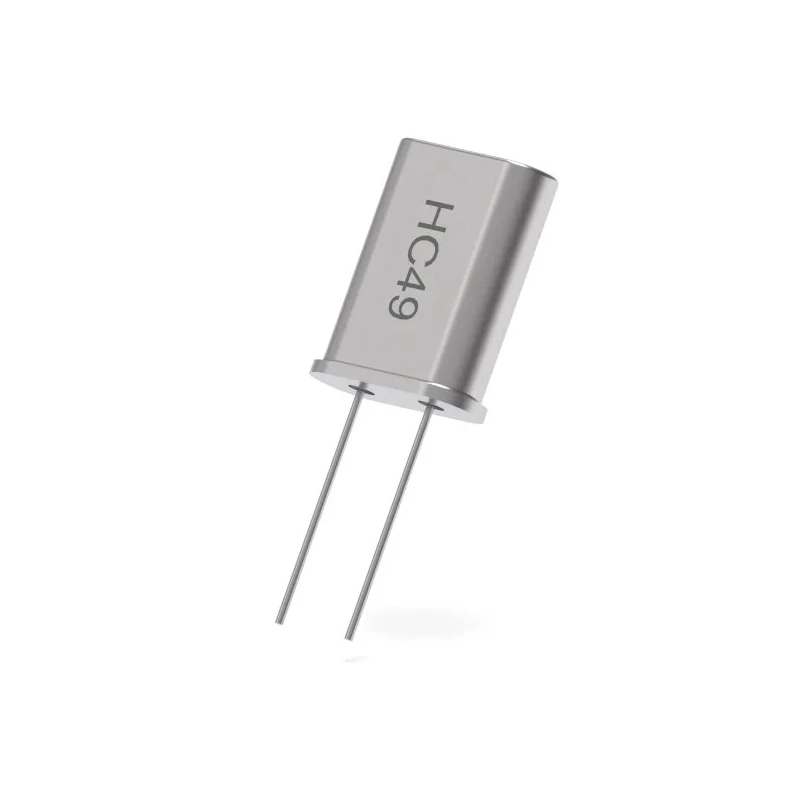

IQD 11.0592 MHz Crystal Unit ±20 ppm HC-49 2-Pin Through Hole 11.05 mm x 4.65 mm x 13.46 mm LFXTAL003515B

Free Delivery in India | Lowest Global Shipping Charges

IQD 11.0592 MHz Crystal Unit ±20 ppm HC-49 2-Pin Through Hole 11.05 mm x 4.65 mm x 13.46 mm LFXTAL003515B



Category Crystal Unit Brand IQD Condition New

Specifications

Country of Origin	India
Brand	IQD
Height	13.46mm
Length	11.05mm
Model	LFXTAL003515B
Width	4.65mm
Mount Type	Through Hole
Maximum Operating Temperature	60°C
Package Type	HC-49
Minimum Operating Temperature	-10°C
Standards/Approvals	REACH, RoHS
Pin Count	2
Standard Frequency	11.0592MHz
Load Capacitance	20pF
Series Resistance	35Ω
IQD 11.0592MHz Crystal ±50ppm 13x5mm SMD 4-Pin 13.1 x 5 x 5mmBrand	IQD

Key Features

Operates at a standard frequency of 11.0592 MHz with stable frequency tolerance of ±20 ppm.
Encased in an industry standard HC-49 hermetically sealed metal package.
Designed for through-hole mounting with 2 pins for reliable soldering on PCBs.
Compact dimensions of 11.05 mm length, 4.65 mm width, and 13.46 mm height.
Load capacitance rating of 20 pF with series resistance of 35 Ω for precision oscillator circuits.
Wide operating temperature range from -10°C to 60°C, suitable for varied environmental conditions.
Compliance with REACH and RoHS standards ensuring environmental safety and quality.
Sealed in an inert atmosphere with resistance welded glass to metal seals for longevity.

Product Description

IQD LFXTAL003515B is a high precision 11.0592 MHz crystal unit designed for use in electronic oscillator circuits. It features a ±20 ppm frequency tolerance ensuring accurate timing and frequency control in sensitive applications.

The crystal unit comes in a robust HC-49 metal can package that is hermetically sealed under inert atmosphere with glass to metal seals, enhancing durability and performance stability. This package supports through-hole soldering via its 2 pins, making it compatible with standard PCB assembly processes.

Its physical dimensions are 11.05 mm in length, 4.65 mm in width, and 13.46 mm in height, suitable for compact circuit board layouts. The unit has a load capacitance specification of 20 pF and a series resistance of 35 Ω which ensures stable oscillator operation.

This crystal unit operates reliably between -10°C and 60°C, making it ideal for a wide range of commercial and industrial electronic equipment requiring precise timing reference.

It meets important environmental directives including REACH and RoHS, guaranteeing compliance with international safety and environmental standards. The product does not conform to automotive standards but excels in general electronic component applications.

Operates at 11.0592 MHz frequency with ±20 ppm tolerance. HC-49 metal can package offers hermetic sealing for enhanced stability. Through-hole mount with 2-pin configuration for secure PCB connection. Compact size suitable for space-constrained electronics design.

Load capacitance of 20 pF and series resistance of 35 Ω optimize oscillator function. Wide operating temperature: -10°C to 60°C supports diverse environments. Compliant with REACH and RoHS environmental standards. Durable construction with glass to metal sealed leads prevents contaminant ingress.

This crystal unit is widely used across electronic manufacturing, instrumentation, communications, and computing applications requiring precise frequency control and reliability. IT is an essential component in oscillators, clocks, radio frequency devices, and embedded systems.

Browse the Crystal Unit category at EnvMart for reliable, industrial-grade electronic components including this IQD LFXTAL003515B Crystal Unit for your precision frequency control needs.
