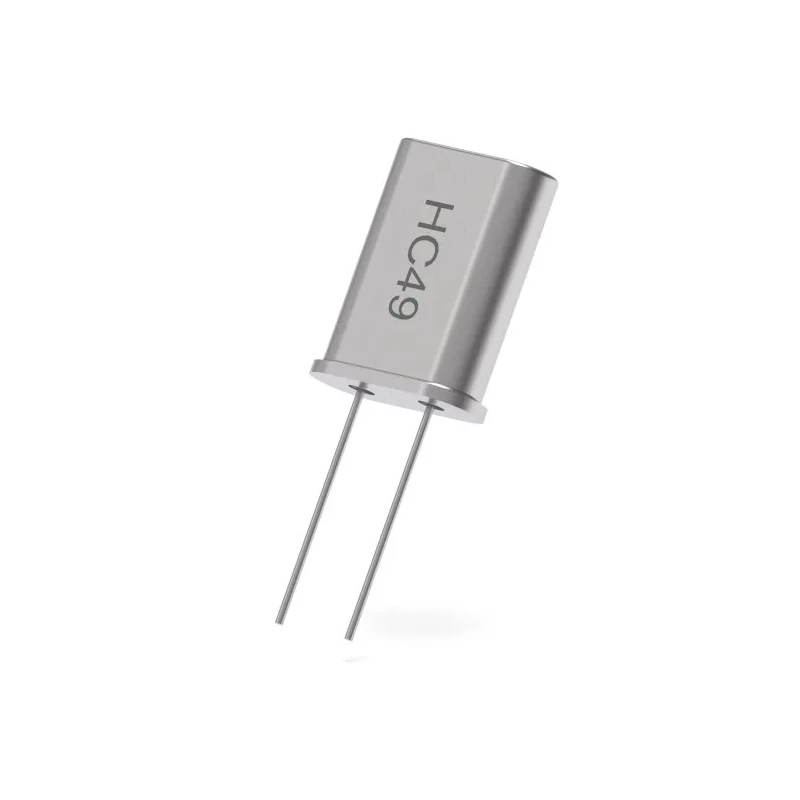

IQD 14.7456 MHz Crystal ±20 ppm Frequency Tolerance HC-49 2-Pin Through Hole 13.46 mm Height LFXTAL003218BULK

IQD LFXTAL003218BULK is a precision crystal oscillator unit operating at 14.7456 MHz frequency with ±20 ppm frequency tolerance, encapsulated in a durable HC-49 package for through-hole PCB mounting. It is designed to provide stable frequency reference for electronic circuits in industrial, communication, and instrumentation applications.

This crystal features a load capacitance of 30 pF and a frequency stability of ±30 ppm ensuring consistent timing performance. It operates reliably between -10°C to 60°C, supporting diverse environmental conditions.

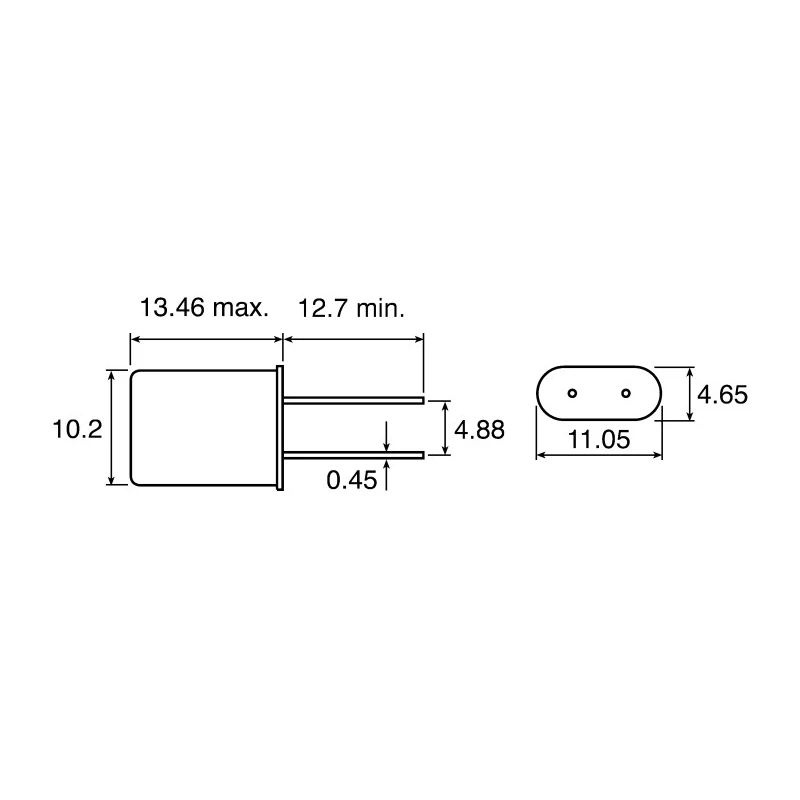

The series resistance of 35 Ω helps maintain low signal loss during oscillation. Measuring 13.46 mm in height, 11.05 mm in length, and 4.65 mm in width, the crystal is compact yet robust for integration within dense circuitry.

Its RoHS compliance guarantees environmentally friendly manufacturing practices. Delivered in tape and reel packaging, this crystal oscillator supports efficient pick-and-place assembly lines.

The product is manufactured in China and is supplied new, suitable for use in electronics manufacturing, repair, and prototyping. Ideal applications include network equipment, communications devices, and industrial control systems requiring stable, high-quality frequency sources.

Operates at standard frequency of 14.7456 MHz. HC-49 package supports through-hole mounting. 30 pF load capacitance optimizes electronic circuit operation. Frequency tolerance regulated to ±20 ppm. Operational temperature range from -10°C to 60°C.

Series resistance ensured at 35 Ω. Compact dimensions: 13.46 mm height × 11.05 mm length × 4.65 mm width. RoHS compliant for environmental safety. Supplied in tape and reel packaging for mass production. Manufactured in China, new condition item.
