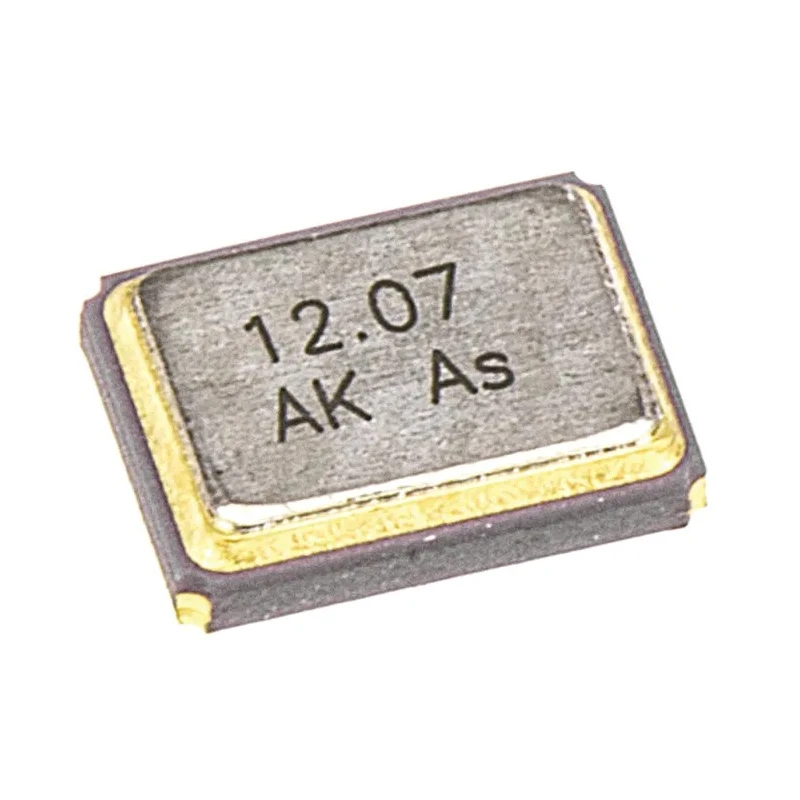

AKER 13.56 MHz Crystal ±10 ppm Surface Mount 4-Pin 0.75 mm Height 3.2 mm Length 2.5 mm Width C3E-13.560-12-1010-X
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | AKER |
| Height | 0.75mm |
| Length | 3.2mm |
| Model | C3E-13.560-12-1010-X |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | C3E |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 13.56MHz |
| Load Capacitance | 12pF |
| Series Resistance | 100Ω |
Key Features
- This crystal operates at a standard frequency of 13.56 MHz.
- It is designed for surface mount applications featuring a 4-pin configuration.

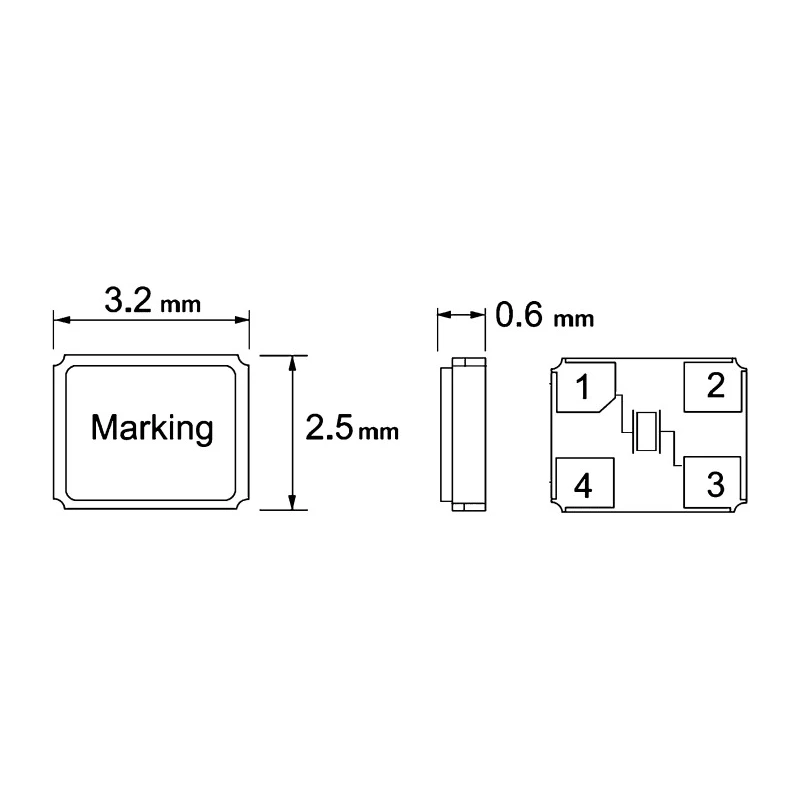

- The component dimensions are 3.2 mm length, 2.5 mm width, and 0.75 mm height.
- The frequency stability is ±10 ppm, ensuring precise oscillation performance.
- Operating temperature ranges from -40°C to 85°C.
- It features a series resistance of 100Ω to optimize electronic circuit function.
- The crystal is RoHS compliant and comes packaged in tape and reel format for assembly efficiency.
- Its ceramic case with a seam-sealed metal lid offers durability and protection against environmental factors.
Product Description
AKER C3E-13.560-12-1010-X 13.56 MHz Crystal is a high-precision surface mount component designed for a wide range of electronic applications. Featuring a standard frequency of 13.56 MHz with a tight frequency tolerance of ±10 ppm, this crystal unit provides stable and reliable oscillation signals. It has a 4-pin surface mount package measuring 3.2 mm by 2.5 mm with a height of just 0.75 mm, making it suitable for compact PCB designs.
The crystal’s 12 pF load capacitance and series resistance of 100Ω ensure optimal performance in oscillator circuits. It operates effectively across a temperature range of -40°C to 85°C, making it suitable for industrial and commercial environments requiring stability under temperature variation.
Housed in a ceramic case with a seam-sealed metal lid, this unit is designed to resist shock and vibration, offering longevity and environmental robustness. It is RoHS compliant, adhering to environmental regulatory standards, and is supplied in tape and reel packaging to support automated assembly processes.
This C3E series microprocessor crystal unit from AKER is ideal for use in industrial, telecommunications, consumer electronics, and manufacturing applications where precision timing is critical.
This crystal operates at a standard frequency of 13.56 MHz. Designed for surface mount applications with a 4-pin configuration. Component dimensions: 3.2 mm length, 2.5 mm width, 0.75 mm height. Frequency stability of ±10 ppm over operating temperature range.
Operating temperature: -40°C to 85°C for robust performance. Series resistance of 100Ω to enhance circuit efficiency. RoHS compliant, ensuring environmental safety. Ceramic case with seam-sealed metal lid for durability.
Packaged in tape and reel for automated mounting. Explore more crystal units in the Electronics Components category at EnvMart for reliable component sourcing.
Explore more products in our Mounting Equipment category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 13.56 MHz.
This model has dimensions of 3.2 mm in length, 2.5 mm in width, and 0.75 mm in height.
It operates effectively across a temperature range of -40°C to 85°C.
The frequency stability of this crystal is ±10 ppm.
It is packaged in tape and reel format, which supports automated assembly processes.
The series resistance of this crystal unit is 100Ω.
The load capacitance for this crystal is 12 pF.
Yes, this crystal is RoHS compliant, adhering to environmental regulatory standards.
This model is designed for surface mount applications with a 4-pin configuration.
The crystal is housed in a ceramic case with a seam-sealed metal lid for durability and protection against environmental factors.
This unit is suitable for use in industrial, telecommunications, consumer electronics, and manufacturing applications where precision timing is critical.
The country of origin for this crystal unit is Taiwan.
