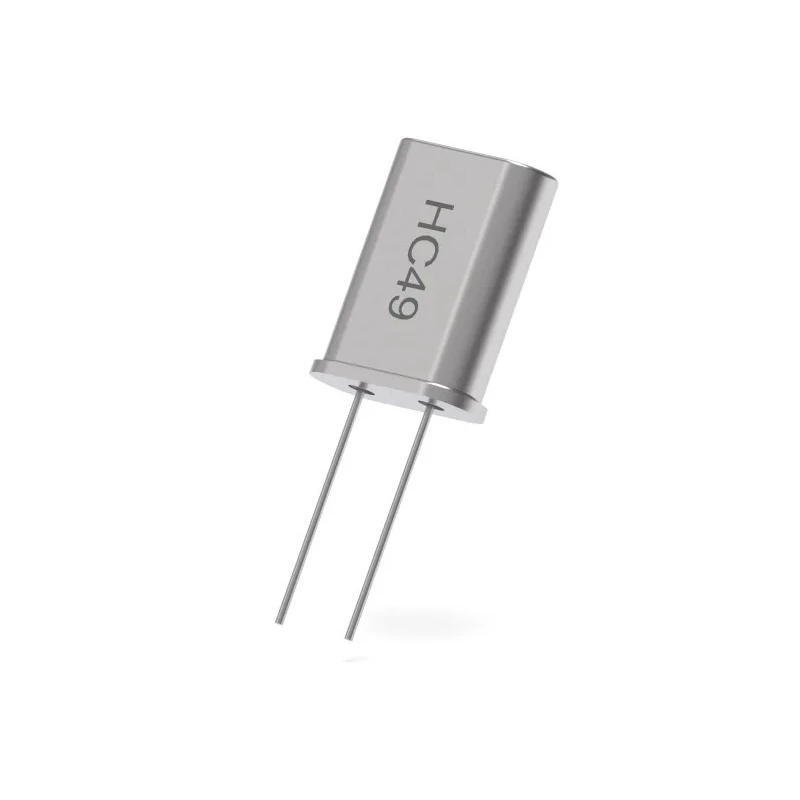

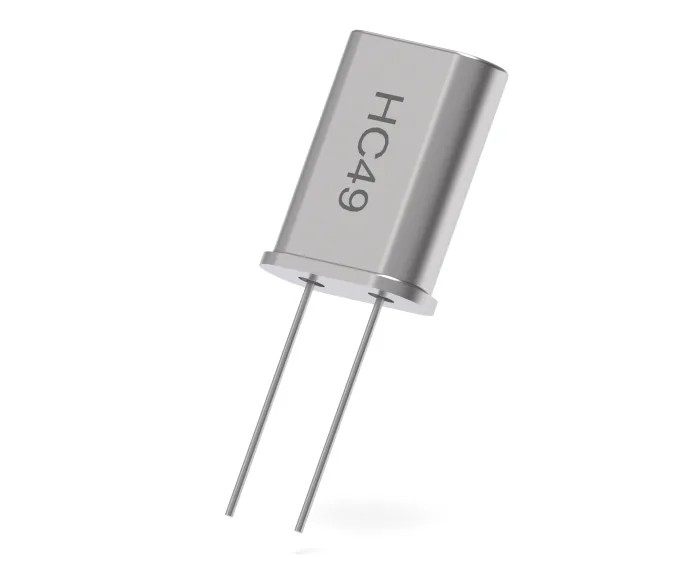

IQD 1.8432 MHz Crystal Unit ±20 ppm HC-49 2-Pin 13.46 mm x 11.05 mm x 4.65 mm LFXTAL003033B

IQD LFXTAL003033B 1.8432 MHz Crystal Unit is a precision electronic component featuring a ±20 ppm frequency tolerance. Packaged in a standard HC-49 through-hole mount with 2 pins, this crystal unit is designed to provide stable and reliable frequency references in electronic circuits.

The unit has a standard operating frequency of 1.8432 MHz and a load capacitance of 30 pF, making it compatible with a wide range of oscillator circuits and timing applications. The package dimensions are compact - 13.46 mm height, 11.05 mm length, and 4.65 mm width - enabling easy integration onto printed circuit boards with through-hole mounting.

This crystal unit is hermetically sealed with resistance-welded glass-to-metal seals in an inert atmosphere, enhancing long-term stability and durability under varied environmental conditions. Operational temperature ranges from -10°C to 60°C, with a frequency stability within ±50 ppm and a series resistance of 800 Ω ensuring consistent electrical performance. It is compliant with environmental standards such as RoHS and REACH.

Typical applications include industrial automation, laboratory instrumentation, communication devices, and consumer electronics where precise frequency control is critical. Standard frequency of 1.8432 MHz for accurate oscillation.

Load capacitance of 30 pF to match circuit requirements. Compact HC-49 package supports through-hole mounting. Hermetically sealed for enhanced durability and reliability. Operating temperature range from -10°C to 60°C. Compliance with RoHS and REACH environmental standards.

Series resistance of 800 Ω supports signal integrity. Suitable for industrial, laboratory, and manufacturing use cases.

This product is ideal for engineers and designers seeking a high-quality crystal unit for frequency stabilization in electronic systems. Explore additional IQD components and related Crystal Units at EnvMart.
