IQD 11.0592 MHz Crystal 30pF Load Capacitance HC-49 Through Hole 2-Pin 13.46x11.05x4.65 mm LFXTAL003327B

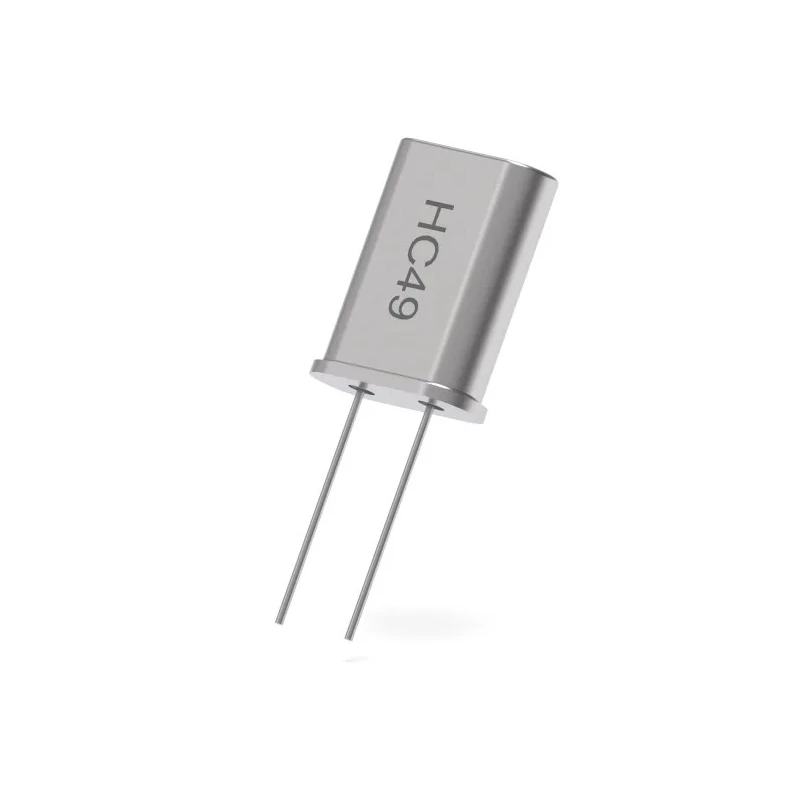

IQD LFXTAL003327B is a precision crystal unit operating at 11.0592 MHz frequency with a load capacitance of 30pF, housed in an industry-standard HC-49 package.

This 2-pin through hole crystal is engineered for reliable use in electronic circuits requiring stable oscillation and frequency control. The crystal's frequency tolerance is tightly controlled at ±20 ppm with an additional frequency stability of ±30 ppm to maintain performance in variable environments.

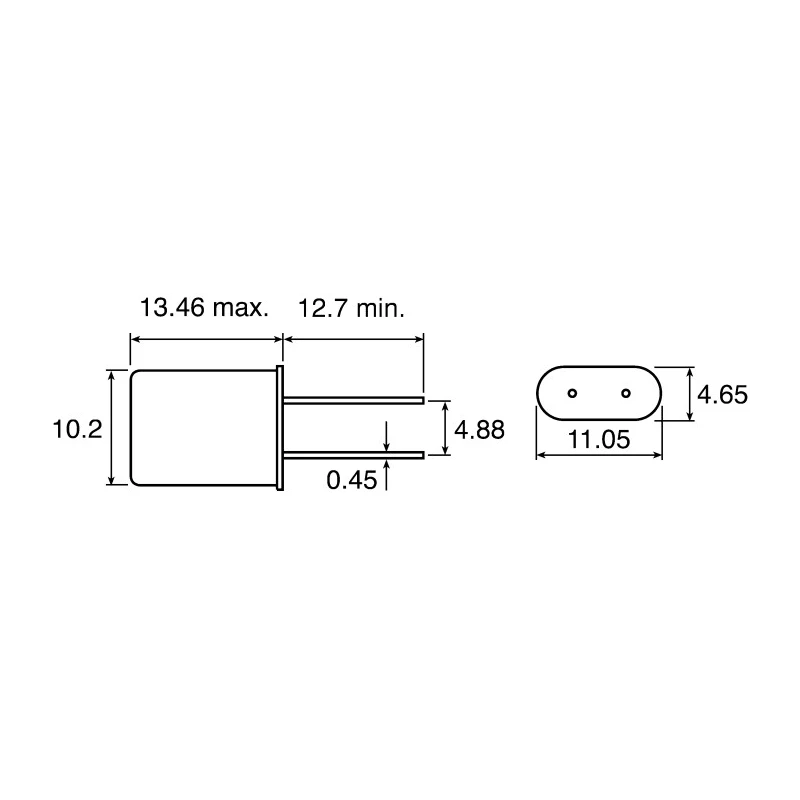

With dimensions of 13.46 mm height, 11.05 mm length, and 4.65 mm width, the HC-49 package facilitates easy integration on printed circuit boards through through-hole mounting. The operational temperature range is from -10°C to 60°C, making it suitable for various electronic equipment applications.

The crystal exhibits a series resistance of 35Ω which minimizes energy loss and noise, enhancing signal integrity in communication, timing, and control systems. This component complies with RoHS standards, reflecting environmental safety and manufacturing quality.

Typical applications include industrial electronics, communication devices, embedded systems, and other laboratory or commercial electronic instrumentation where precise frequency generation is critical.

The crystal operates at a standard frequency of 11.0592 MHz with a frequency stability of ±30 ppm. Packaged in HC-49 form factor with dimensions 13.46 mm height, 11.05 mm length, and 4.65 mm width. Suitable for electronic applications requiring stable oscillation within temperature range of -10°C to 60°C.

Features a series resistance of 35Ω ensuring efficient signal integrity. The device is RoHS compliant and sourced from China. Explore a wide range of precision Crystal Units and electronic components at EnvMart to support your electronic design and manufacturing needs.
