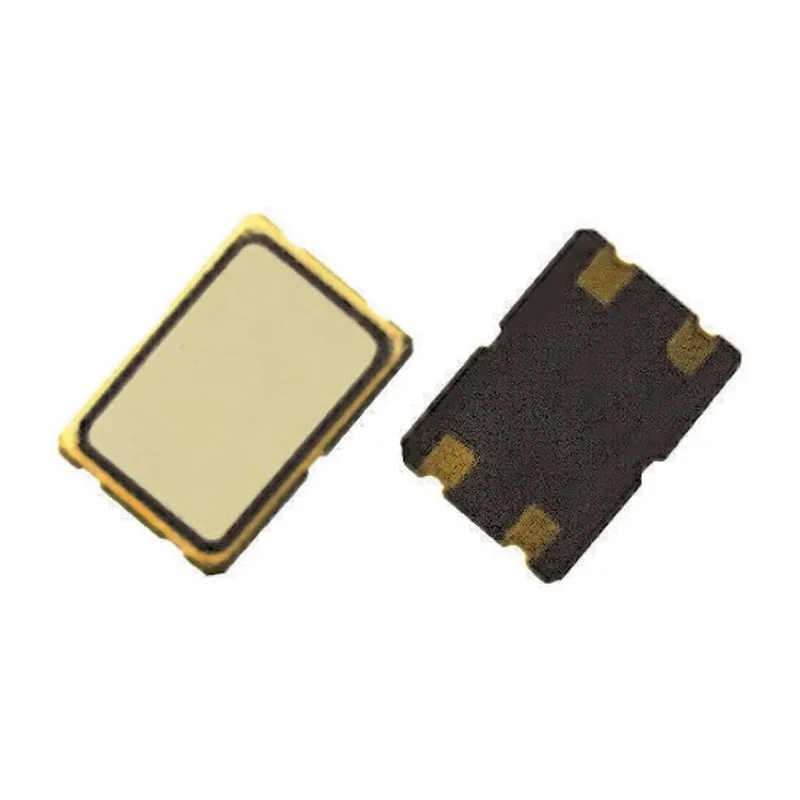

AKER 16 MHz Crystal ±30 ppm Surface Mount 4-Pin 1.1 mm Height 7 mm Length 5 mm Width C7S-16.000-12-3030-X

AKER C7S-16.000-12-3030-X 16 MHz Crystal is a surface mount device featuring a four-pin configuration optimized for precision frequency generation in electronic circuits. It operates at a standard frequency of 16 MHz with a tight frequency tolerance of ±30 ppm, suitable for demanding timing and oscillator applications in industrial and commercial electronics. The component exhibits a load capacitance of 12 pF and a series resistance of 45 ohms, parameters that contribute to stable frequency output.

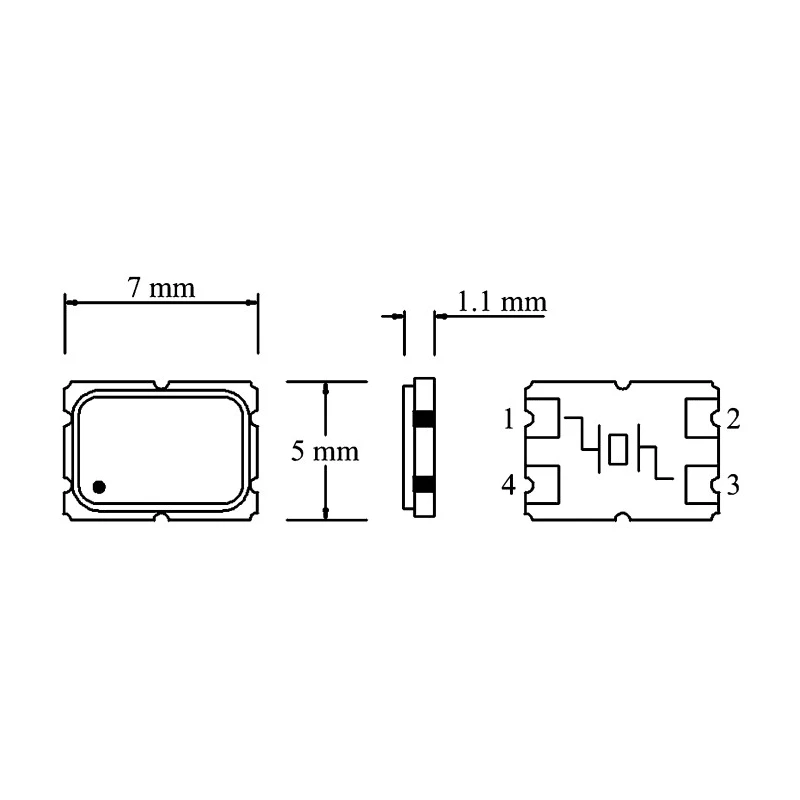

The compact dimensions of 7 mm length by 5 mm width and 1.1 mm height enable space-saving designs, while the surface mount package type facilitates easy PCB assembly and integration. It is rated for operational temperatures from -40°C to 85°C, ensuring functionality across a broad range of industrial, automotive, and consumer environments. The crystal complies with RoHS standards, affirming its environmentally friendly manufacturing process.

Supplied on tape & reel packaging, this crystal unit supports efficient manufacturing workflows. The product is manufactured in Taiwan, Province Of China, reflecting rigorous quality controls common in this region.

This crystal unit is essential in applications requiring precise clock generation, including telecommunications, automotive control systems, consumer electronics, and industrial automation. Engineers rely on it for accurate timing, filtering, and frequency stabilization.

Features a standard frequency of 16 MHz with ±30 ppm frequency tolerance. Constructed with a surface mount package type and 4 pins for reliable PCB integration. Load capacitance is rated at 12 pF to ensure stable oscillator performance.

Dimensions are 7 mm length, 5 mm width, and 1.1 mm height for compact design. Operates within temperature range from -40°C to 85°C for varied environmental conditions. Has a series resistance of 45 ohms to comply with stability requirements.

Complies with RoHS standards ensuring environmental safety and quality. Supplied in tape & reel packaging facilitating automated assembly processes. Manufactured in Taiwan, Province Of China, maintaining high quality standards.
