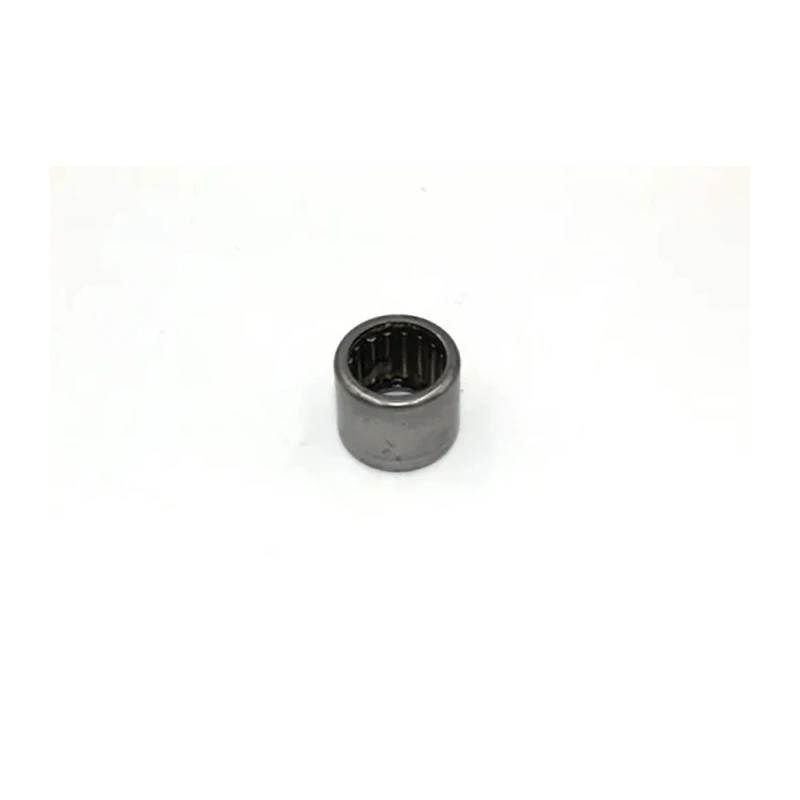

INA 16 mm Inside Diameter Drawn Cup Needle Roller Bearing Sealed HK1614-RS-L271

INA HK1614-RS-L271 is a high-performance drawn cup needle roller bearing featuring a 16 mm inside diameter and a sealed end design for reliable operation in industrial applications. This bearing provides efficient support for high radial loads while maintaining a very low cross-sectional height, making it ideal for equipment with compact radial space requirements.

The bearing's drawn cup construction allows it to run directly on the shaft without the need for an inner ring and enables it to fit into housings where the bore is not suitable as a raceway for needle roller and cage assemblies. The sealed end helps to protect internal components from contamination, enhancing durability and performance.

With a race width of 14 mm, and an outside diameter of 22 mm, the HK1614-RS-L271 supports a static load rating of 9.7 kN and a dynamic load rating of 7.6 kN, ensuring reliable operation under demanding radial load conditions. The steel cage material offers robustness and longevity.

This bearing permits relatively high operational speeds while requiring no additional axial retention methods, which simplifies the manufacturing of the bearing housing bore. It is designed for ease of mounting and can be used to close off shaft ends in bearing positions with its closed-end feature, resulting in a compact and cost-effective bearing arrangement.

Applications include industrial machinery, mechanical equipment, and systems requiring efficient radial support with minimal space consumption. The INA HK1614-RS-L271 bearing is engineered for durability and performance in challenging environments.

Very low cross-sectional height for compact radial design. Suitable for housings without suitable raceways for needle roller assemblies. High static and dynamic radial load capacity. Runs directly on the shaft, eliminating inner ring need.

Sealed end protects bearing interior from contaminants. Steel cage provides durability and strength. Facilitates simplified housing bore production without additional axial retention. Compact, economical bearing arrangement.
