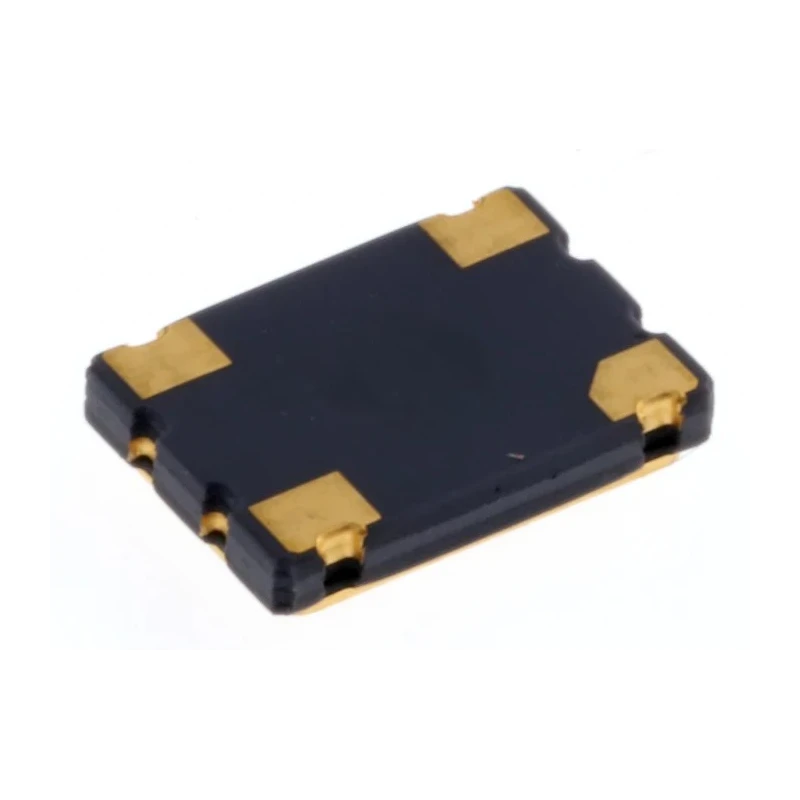

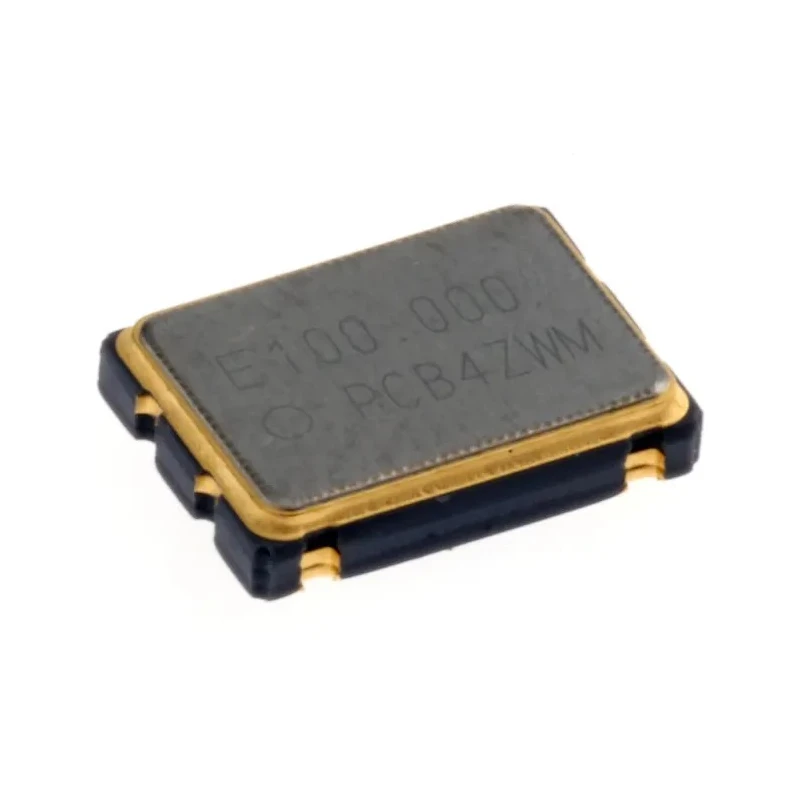

Epson 100MHz XO Crystal Oscillator ±50 ppm CMOS 4-Pin Surface Mount Q3309CA40021912
Specifications
| Country of Origin | India |
|---|---|
| Brand | Epson |
| Height | 1.4mm |
| Length | 7mm |
| Model | Q3309CA40021912 |
| Width | 5mm |
| Mount Type | Surface, Through Hole, SOJ |
| Series | SG-8002 |
| Maximum Operating Temperature | 70°C |
| Output Frequency | 100MHz |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | ISO9001, ISO 14001, RoHS |
| Pin Count | 4 |
| Automotive Standard | ISO/TS 16949 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Oscillator Type | XO |
| Output Level | CMOS |
Key Features
- Provides a stable output frequency of 100MHz with ±50 ppm frequency stability.
- Features CMOS output level ensuring compatibility with modern digital circuits.
- Operates within a supply voltage range of 2.7V to 5.5V providing flexible power options.
- Compact surface mount package with 4 pins and ceramic casing measuring 7mm x 5mm x 1.4mm.
- Supports operation in temperatures from -20°C to 70°C for industrial and automotive environments.
- Meets ISO9001, ISO14001, RoHS, and ISO/TS 16949 automotive quality standards.
- Mount types include surface, through hole, and SOJ, enabling versatile PCB design integration.
Product Description
Epson Q3309CA40021912 100MHz XO Crystal Oscillator is designed for high precision frequency generation with stable output and low current consumption. The CMOS output level makes it ideal for integration in digital electronics requiring reliable clock signals.
The device comes in a durable ceramic casing measuring 7mm length, 5mm width, and 1.4mm height, suitable for surface mount applications in compact circuits. It supports a wide supply voltage range from 2.7V to 5.5V allowing it to be used in various power conditions.
Operating temperatures range from -20°C to 70°C, making it apt for industrial applications and automotive systems. The oscillator supports multiple mounting types including surface mount, through hole, and SOJ, providing flexibility in PCB assembly.
Certified to internationally recognized standards including ISO9001, ISO14001, RoHS compliance, and the automotive specific ISO/TS 16949 standard, this product ensures quality and reliability for demanding environments.
Stable frequency output of 100MHz with ±50 ppm stability. CMOS output level compatible with modern electronics. Wide supply voltage range from 2.7V to 5.5V. Compact and durable 7x5x1.4 mm ceramic package. Wide operating temperature range from -20°C to 70°C.
Multiple mounting options: Surface, Through Hole, SOJ. Certified to ISO9001, ISO14001, RoHS, and ISO/TS 16949.
This Epson XO Crystal Oscillator is suitable for industrial, automotive, telecommunications, instrumentation, and general electronic applications requiring precision timing components. It supports advanced PCB designs demanding reliable clock generation in a compact form factor.
Explore our wide range of Crystal Oscillators and other electronic components at EnvMart for your next high-performance electronic design.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this model is 100MHz with a frequency stability of ±50 ppm.
It operates within a supply voltage range of 2.7V to 5.5V, providing flexible power options for various applications.
This unit has a compact ceramic package measuring 7mm in length, 5mm in width, and 1.4mm in height.
It supports multiple mounting types including surface mount, through hole, and SOJ, allowing for versatile PCB design integration.
The oscillator operates effectively within a temperature range of -20°C to 70°C, suitable for industrial and automotive environments.
It features a CMOS output level, ensuring compatibility with modern digital circuits.
This product meets several international standards including ISO9001, ISO14001, RoHS, and ISO/TS 16949 for automotive quality.
It has a pin count of 4, suitable for various electronic applications.
This model is classified as a crystal oscillator (XO), designed for high precision frequency generation.
It belongs to the SG-8002 series of crystal oscillators, known for their reliability and performance.
The oscillator is manufactured in India, ensuring adherence to quality standards.
It is suitable for various applications including industrial, automotive, telecommunications, instrumentation, and general electronics requiring precision timing components.
