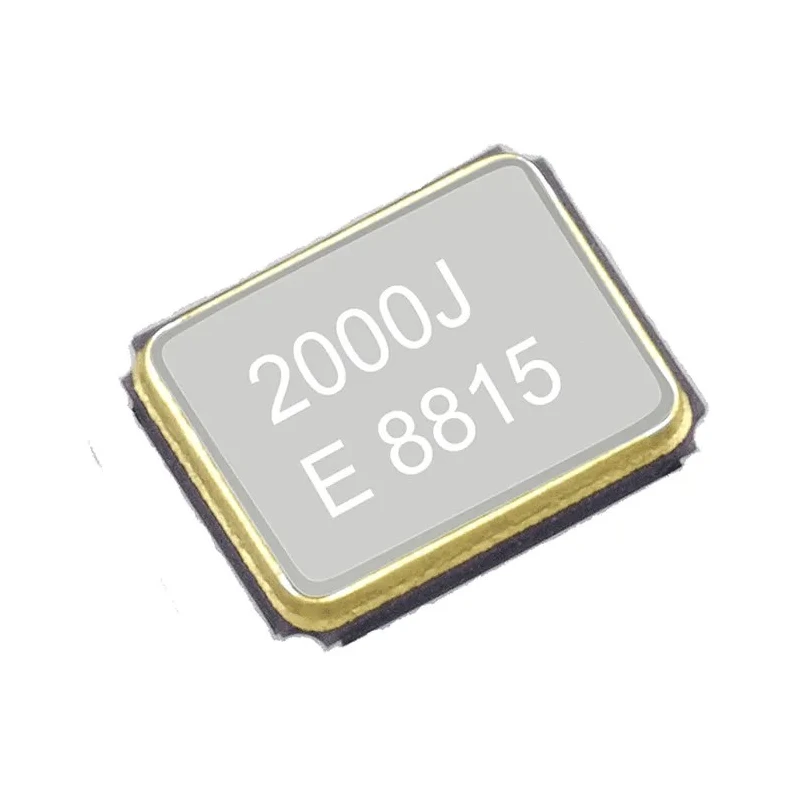

Epson 16 MHz Surface Mount Crystal Unit ±10 ppm TSX-3225 4-Pin 3.2x2.5x0.6 mm X1E000021011612

The Epson X1E000021011612 is a 16 MHz crystal unit designed for surface mount applications, featuring a low profile TSX-3225 ceramic package with dimensions of 3.2 mm length, 2.5 mm width, and 0.6 mm height. This crystal unit offers a frequency tolerance of ±10 ppm and a load capacitance of 8 pF, making it ideal for precise timing and frequency control needs.

Constructed with a 4-pin configuration, it provides excellent stability and performance in various electronic devices such as mobile phones, Bluetooth modules, WLAN ISM band radios, and microprocessor unit clocks. The unit operates reliably across a temperature range of -40°C to 85°C, with a series resistance of 60 ohms to ensure minimal signal degradation.

Manufactured under the TSX3225 series, this component complies with RoHS and REACH standards, reflecting Epson's commitment to environmental safety. It does not meet automotive standards and is optimized for general industrial and commercial electronic devices.

Operates at a standard frequency of 16 MHz with ±10 ppm tolerance. Compact TSX-3225 package suitable for surface mount technology. 4-pin design for secure PCB installation. Load capacitance of 8 pF ensures signal accuracy.

Wide operating temperature range of -40°C to 85°C. Series resistance rated at 60 Ω for efficient performance. Environmental compliance with REACH and RoHS regulations. Ideal for communication devices, computing, and timing circuits.

This crystal unit supports a variety of industrial, laboratory, and commercial electronics applications where space-saving and precise frequency control are critical. The size and specifications make it suitable for modern compact circuit designs and high-frequency signal generation.
