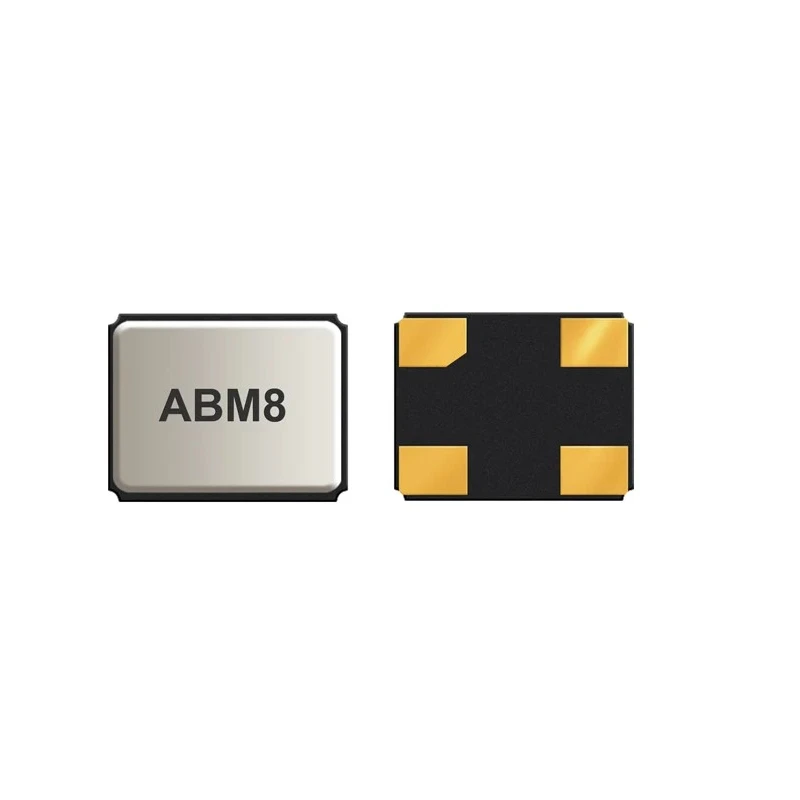

Abracon 16 MHz Surface Mount Crystal ±10 ppm, 18pF, 4-Pin, 3.2 x 2.5 x 0.8 mm ABM8-16.000MHZ-10-1-U-T

Abracon ABM8-16.000MHZ-10-1-U-T is an advanced surface mount Crystal Unit used for precision timing applications in electronic circuits. This crystal features a standard frequency of 16 MHz with tight tolerance of ±10 ppm, making it ideal for designs requiring reliable and accurate frequency control, such as microcontroller clocks, modems, wireless communication devices, and data acquisition systems.

The crystal is designed to fit modern PCBs thanks to its surface mount package and 4-pin footprint. With compact dimensions of 3.2 x 2.5 x 0.8 mm, the ABM8 series is suitable for thin-profile equipment, where space-saving components are crucial. Its low profile allows integration into portable and miniature devices without compromising performance.

Electrical performance is assured by a load capacitance of 18 pF, supporting oscillator designs typically found in embedded and industrial electronics. The crystal’s ±10 ppm frequency tolerance and ±10 ppm frequency stability guarantee reliable operation and minimize clock drift over time and across temperature variations.

The seam-sealed package ensures high reliability by preventing moisture ingress and other environmental contamination, meeting the requirements of diverse industrial, commercial, and laboratory applications. Series resistance is specified at 70 Ω, which suits high-density circuit layouts and precise signal processing requirements.

Temperature operation ranges from -10°C to +60°C, enabling use in controlled environments and many standard electronic projects. The unit is compatible with both fundamental and 3rd overtone oscillation modes, enhancing flexibility for various circuit configurations.

Applications include high-density PCBs, modems, communication and test instrumentation, PCMCIA and wireless products, and any system where accurate signal generation is essential. With RoHS and REACH compliance, the crystal meets international standards for electronic manufacturing and sustainability.

This Abracon surface mount crystal advances performance in timing and synchronization for electronics engineers, designers, and product developers across industries. 16 MHz frequency for precise clock generation. ±10 ppm tolerance for high-accuracy timing.

Surface mountable and suitable for tight PCB layouts. Seam-sealed, reliable package design. 4-pin footprint for secure mounting. For more surface mount crystals and timing solutions, browse Abracon’s full range in the Electronics Components category on EnvMart.
