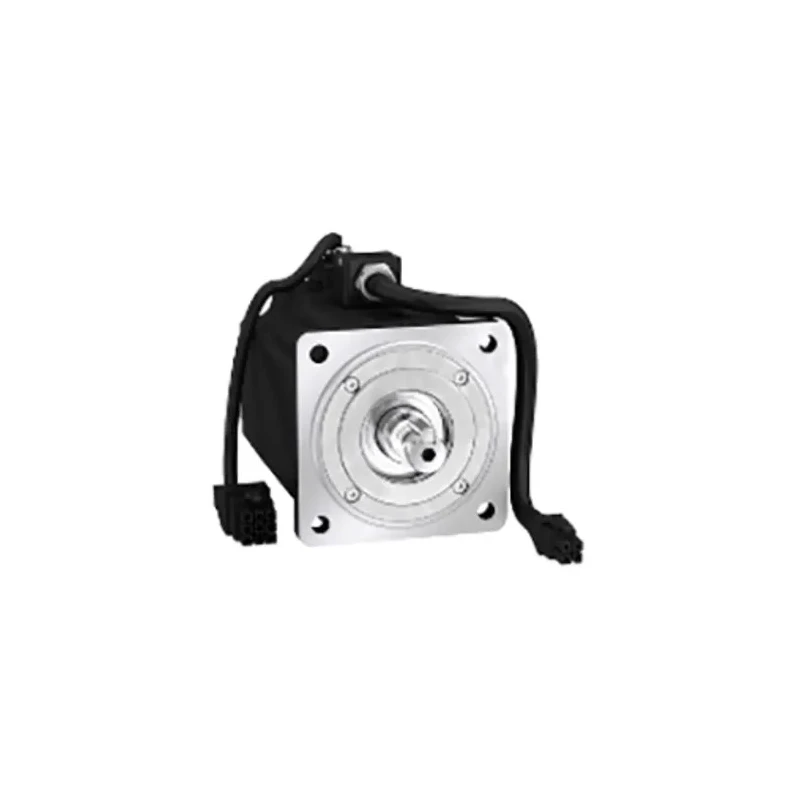

Schneider Electric 220V DC 400W Brushless Servo Motor, 5000rpm, 3.81Nm Max Output Torque, 14mm Shaft Diameter BCH2LF0433CA5C

Schneider Electric BCH2LF0433CA5C 220V DC 400W brushless servo motor offers precise and reliable motion control for industrial automation and manufacturing processes. It belongs to the Lexium 28 series known for energy efficiency and embedded safety features, delivering high torque and speed suitable for a variety of machinery.

The motor runs at a maximum speed of 5000 rpm and has a maximum output torque of 3.81 Nm, providing excellent performance under demanding conditions. Its rotor inertia of 0.67 kg.cm² and the inclusion of a 20-bit absolute encoder enhance smooth and exact positioning vital for automation tasks.

Constructed with a 14 mm diameter shaft and 30 mm length, the motor supports flange and screw mounting methods, making it adaptable to diverse mounting requirements. Protective ratings of IP50 and IP65 depending on the mounting configuration ensure the motor's robustness against dust and moisture in industrial environments.

With compact overall dimensions of 142 mm (length) x 80 mm (width) x 95 mm (depth), this servo motor is space-efficient and facilitates easy integration into automated machinery. It supports continuous stall current of 2.29 A and features free leads for electrical connections.

This motor is compatible with Lexium 28 and Lexium 26D servo drives, forming an optimized servo bundle suited for compact machines, offering cost-effective and energy-efficient solutions for motion control. It is specifically suitable for applications like printing presses, packaging equipment, winding/unwinding systems, and material handling machinery.

This servo motor provides a maximum output torque of 3.81 Nm. Operates at an output speed of 5000 rpm with a stall torque of 1.27 Nm. The motor shaft has a diameter of 14 mm and a length of 30 mm for secure coupling. Features a high-resolution 20-bit single-turn absolute encoder for accurate position feedback.

Equipped with flange and screw mount types to fit various machine setups. Compact dimensions of 142 mm length, 80 mm width, and 95 mm depth ensure easy integration. Rated with IP50 and IP65 protection depending on mounting condition for durability.

Rotor inertia is 0.67 kg.cm² supporting stable operation at high speeds. Compatible with Lexium 28 and Lexium 26D servo drives for comprehensive automation solutions. Ideal for industrial applications including printing, packaging, winding, and material handling.
