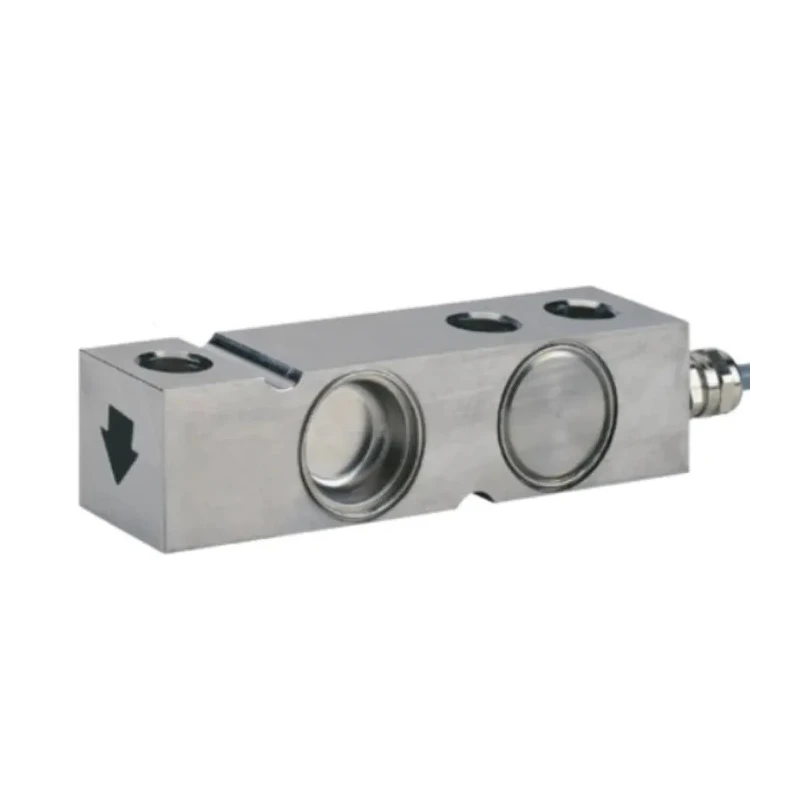

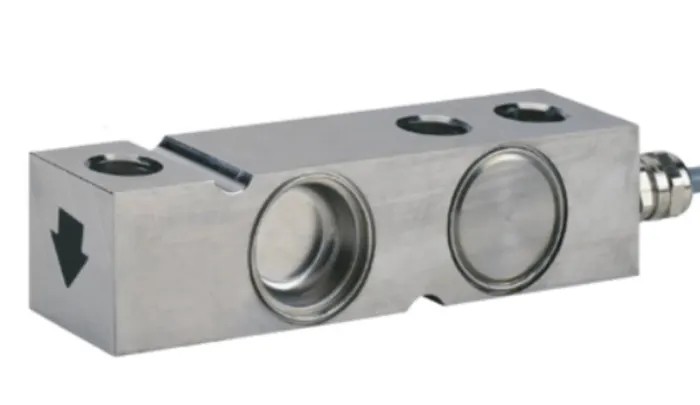

Tedea Huntleigh 3510 Series Low Profile Stainless Steel Load Cell 300 kg to 2000 kg Compression Measurement 03510-002T-C3-85X
Specifications
| Country of Origin | India |
|---|---|
| Brand | Tedea Huntleigh |
| Length | 172mm |
| Model | 03510-002T-C3-85X |
| Depth | 36.5mm |
| IP Rating | IP69 |
| Sensor Type | Low Profile |
| Width | 48mm |
| Housing Material | Stainless Steel |
| Series | 3510 |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -30°C |
| Terminal type | Cable |
| Maximum dc Voltage | 15V dc |
| Standards/Approvals | EEx ia IIC T6, NTEP, RoHS, FM, OIML R60 |
| Maximum AC Voltage | 15V ac |
| Force Measured | Compression |
| Maximum Force/Load Measurement | 2000kg |
| Minimum Force/Load Measurement | 300kg |
Key Features
- Constructed with stainless steel for durability and corrosion resistance.
- Low profile design ideal for platform scales and pallet truck weighers.
- Hermetically sealed with IP69 rating for operation in harsh environments.
- Equipped with cable terminal type for easy connection.
- Operating temperature range from -30°C to 40°C.
- Maximum AC and DC voltage ratings of 15V each.
- Complies with standards including EEx ia IIC T6, NTEP, RoHS, FM, and OIML R60.
- Features guide slots on mounting faces for precise positioning during installation.
Product Description
Tedea Huntleigh 03510-002T-C3-85X 3510 Series Low Profile Load Cell provides high accuracy compression force measurement with a capacity range of 300 kg to 2000 kg. The stainless steel construction and hermetic sealing ensure durability and resistance to moisture, making it well suited for use in demanding industrial and commercial weighing applications.
This load cell is designed specifically for low profile platforms, pallet truck weighers, and weighing of tanks and silos, enabling reliable operation in harsh environments such as the food industry. The device includes a polyurethane dual shielded cable and sense wires for compensating changes due to cable extension and temperature fluctuations.
Featuring cable terminal type and an IP69 ingress protection rating, this sensor is highly resistant to dust and water, ensuring longevity even under extreme conditions. Operating temperature ranges from -30°C to 40°C, suitable for varied industrial environments.
The load cell complies with multiple international approvals including EEx ia IIC T6 intrinsic safety, NTEP, RoHS environmental compliance, FM and OIML R60 standards for precision and safety.
Constructed with stainless steel for corrosion resistance and robust performance. Compact low profile design facilitates use in platform scales and pallet truck scales. Hermetically sealed with IP69 rating to withstand harsh and wet environments.
Incorporates guide slots on mounting faces enabling precise installation and alignment. Capable of continuous operation compensating for cable extension and temperature changes. Designed for industrial applications such as food industry weighing, tank and silo weighing, and harsh environment weighing.
Meets international standards including NTEP, FM, RoHS, OIML R60, and intrinsic safety certification EEx ia IIC T6.
This load cell is an ideal choice for manufacturers and integrators requiring a reliable, accurate, and robust low profile load sensing solution for diverse industrial weighing needs.
Explore more high-quality Load Cell products in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load measurement for this load cell is 2000 kg.
This load cell operates within a temperature range of -30°C to 40°C.
It is constructed with stainless steel, providing corrosion resistance and durability.
This model has an IP69 ingress protection rating, making it highly resistant to dust and water.
It is designed to measure compression forces.
The load cell has dimensions of 172 mm in length, 48 mm in width, and 36.5 mm in depth.
It features a cable terminal type for easy connection.
It complies with several standards including EEx ia IIC T6, NTEP, RoHS, FM, and OIML R60.
The minimum load measurement for this load cell is 300 kg.
It includes sense wires that help compensate for changes due to cable extension and temperature fluctuations.
The maximum AC and DC voltage ratings for this load cell are both 15V.
