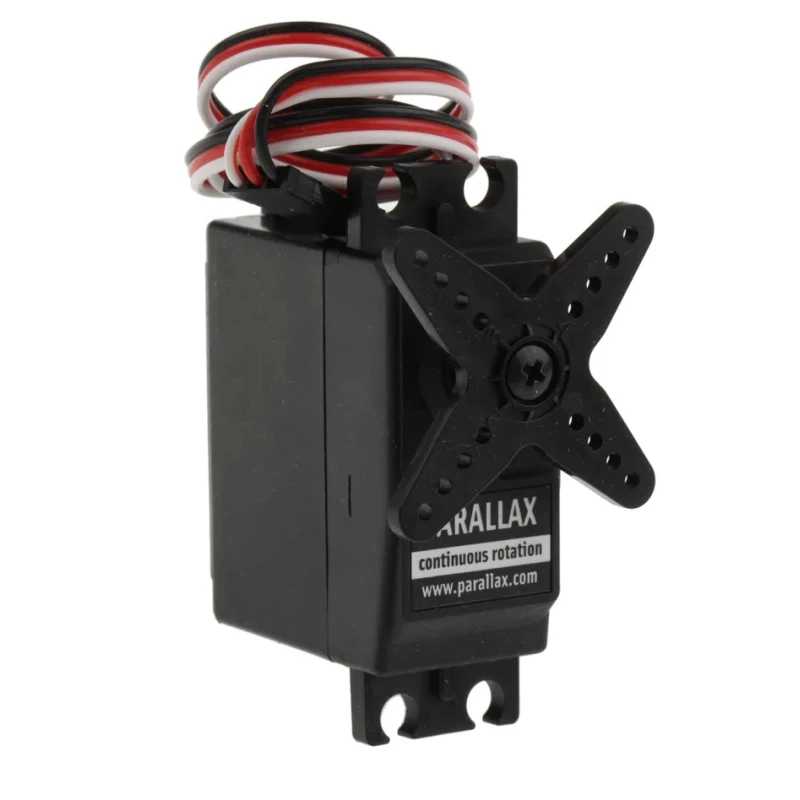

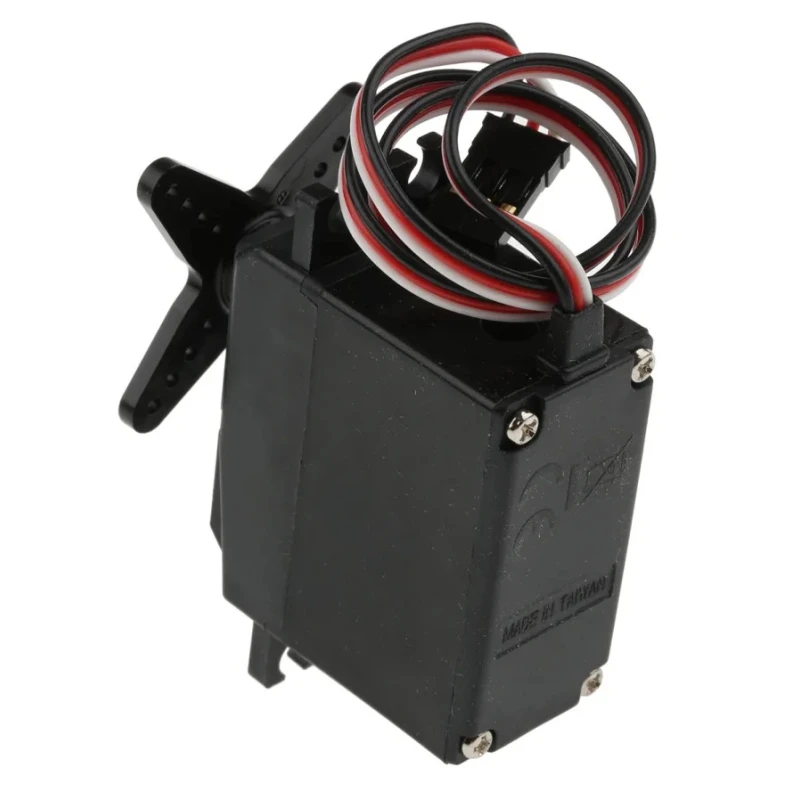

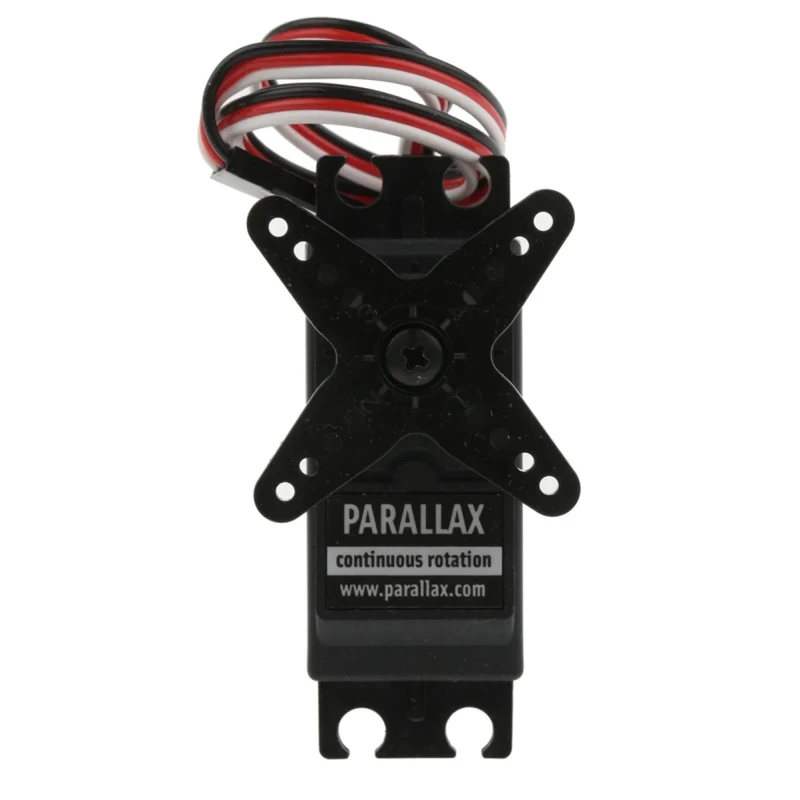

Parallax Inc 4V, 6 V Continuous Rotation Servo Motor, 50rpm Speed, 27 Ncm Max Output Torque, 20.8 mm Shaft Diameter 900-00008

Parallax Inc 900-00008 continuous rotation servo motor is engineered for precise automation and robotics applications, offering a supply voltage range between 4 V and 6 V and delivering a consistent output speed of 50rpm. This servo motor provides a maximum torque of 27 Ncm (equivalent to 0.26 Nm stall torque), suitable for prototyping wheeled robots and other automation projects requiring smooth bidirectional rotation.

Its shaft measures 20.8 mm in diameter with an 8 mm length, designed for screw mounting, facilitating secure installation. Physical dimensions are 55.8 mm in width, 19 mm in depth, and 406 mm in length, excluding any servo horns. The motor draws a modest current of 200 mA, balancing performance and power efficiency effectively.

The servo motor's operating temperature spans from -10°C to +50°C, allowing it to function reliably under various conditions common in industrial, robotics, and laboratory environments. It weighs approximately 42.5 g, aiding in lightweight applications where mobility is crucial.

The product is supplied with an assortment of servo horns for flexible mounting and customization in diverse projects. Manufactured in Taiwan, Province of China, it aligns with international quality expectations.

Designed for continuous rotation with smooth speed ramping and control via 50Hz PWM signal. Maximum output torque of 27 Ncm ensures precise motion control. Stall torque rating of 0.26 Nm supports robust start-up torque. Shaft diameter 20.8 mm and length 8 mm fitted for screw mount installation.

Compact size allows integration in constrained robotic assemblies. Requires a low current of 200 mA, optimal for energy efficient operation. Operating temperature flexibility from -10°C to +50°C. Lightweight design at 42.5 g suitable for mobile robot applications.

Includes versatile servo horns to support various mounting needs. Ideal for experimental, educational, and robotic automation use cases.

Parallax Inc Servo Motors are widely recognized in industrial automation, robotics, and educational prototyping projects, supported by detailed technical documentation and tutorials. Explore more motor solutions and accessories available to meet your control and automation requirements in the EnvMart catalog.
