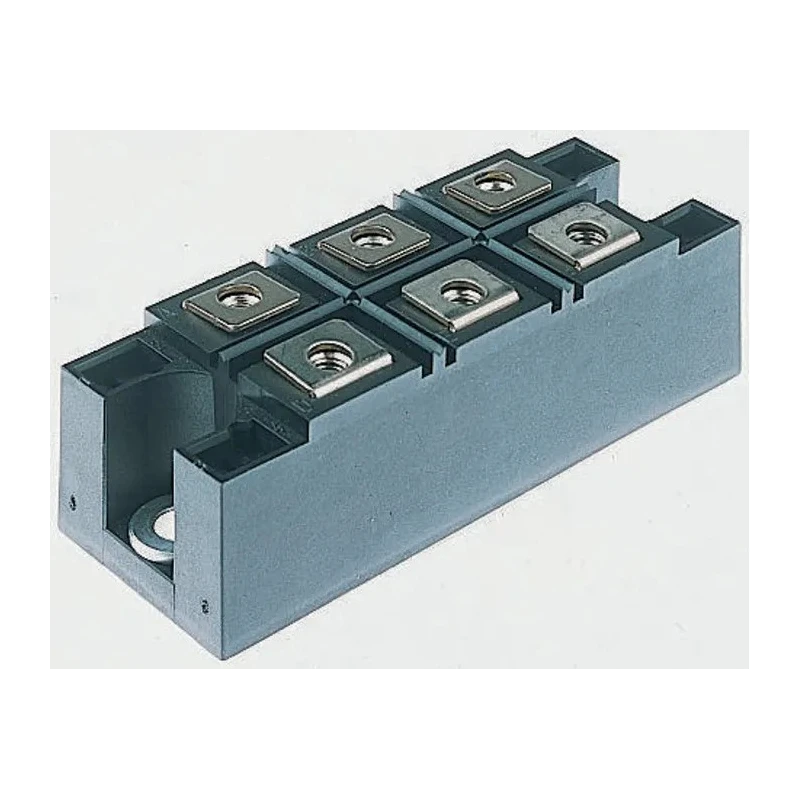

Vishay Controllable Bridge Rectifier 1600 V 1.18 kA 110 A 150 mA 1.57 V INT-A-PAK 6-Pin VS-113MT160KPBF

Vishay VS-113MT160KPBF is a three-phase controllable bridge rectifier power module designed for heavy-duty industrial and general-purpose applications. Featuring an INT-A-PAK 6-pin package, it offers a rated average on-state current of 110 amperes and supports surge currents up to 1.18 kiloamperes. The device’s repetitive peak reverse voltage is rated at 1600 volts, making it suitable for demanding power control scenarios.

This rectifier incorporates a high thermal conductivity package ensuring excellent power-to-volume ratio and robustness. The INT-A-PAK package is fully compatible with Vishay’s INT-A series power modules. Its panel mount type and dimensions (94 mm length by 35 mm width by 30 mm height) facilitate easy installation in power electronics assemblies.

Designed specifically for three-phase fully controlled bridge rectifier circuits, VS-113MT160KPBF includes features such as a maximum gate trigger current of 150 mA, maximum holding current of 200 mA, and a maximum gate trigger voltage of 2.5 V, ensuring precise gate control and reliable operation up to 125°C ambient temperature. It has a repetitive peak off-state current of 20 mA and peak on-state voltage of 1.57 V, contributing to efficient conduction with minimal losses.

Applications include industrial motor control, power supplies, HVAC systems, manufacturing machinery, and other high-power electrical systems requiring reliable AC/DC conversion with controlled phase power.

Rated average on-state current of 110 amperes suitable for industrial power control. Packaged in INT-A-PAK with 6-pin configuration for panel mounting. Maximum gate trigger current is 150 milliamperes for precise control.

Maximum operating temperature rated at 125 degrees Celsius ensuring high reliability. Repetitive peak reverse voltage capability of 1600 volts for robust performance. Surge current rating up to 1.18 kiloamperes allowing handling of transient loads.

Dimensions of 94 mm length, 35 mm width, and 30 mm height compatible with standard power modules. Maximum holding current is 200 milliamperes suitable for stable operation. Peak on-state voltage is 1.57 volts ensuring low conduction losses.

Designed specifically for three-phase controlled bridge power module applications. Explore Vishay’s range of Thyristors and bridge rectifiers on EnvMart for high-quality power semiconductor solutions.
