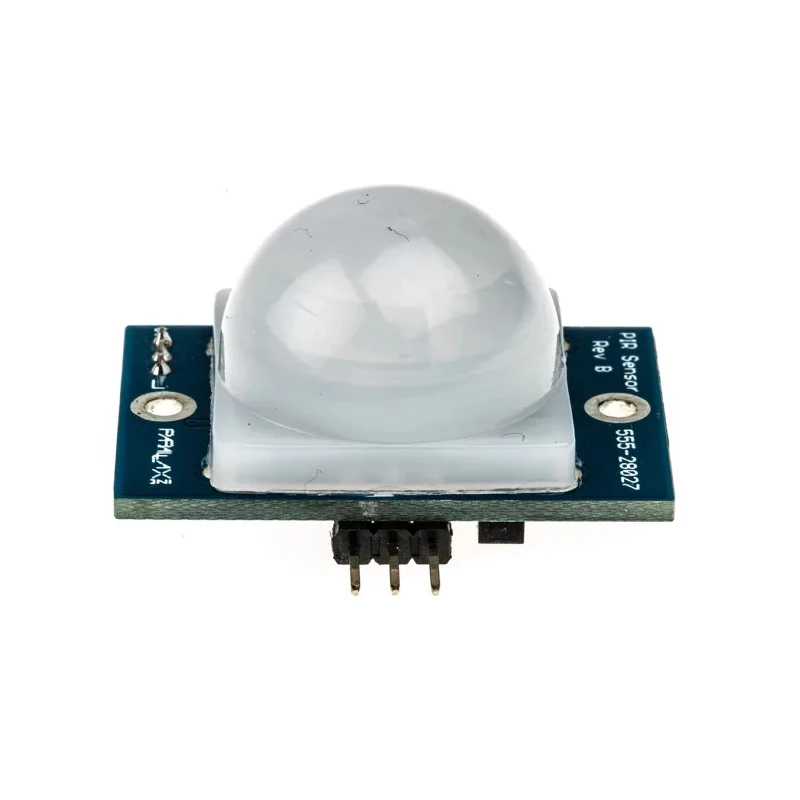

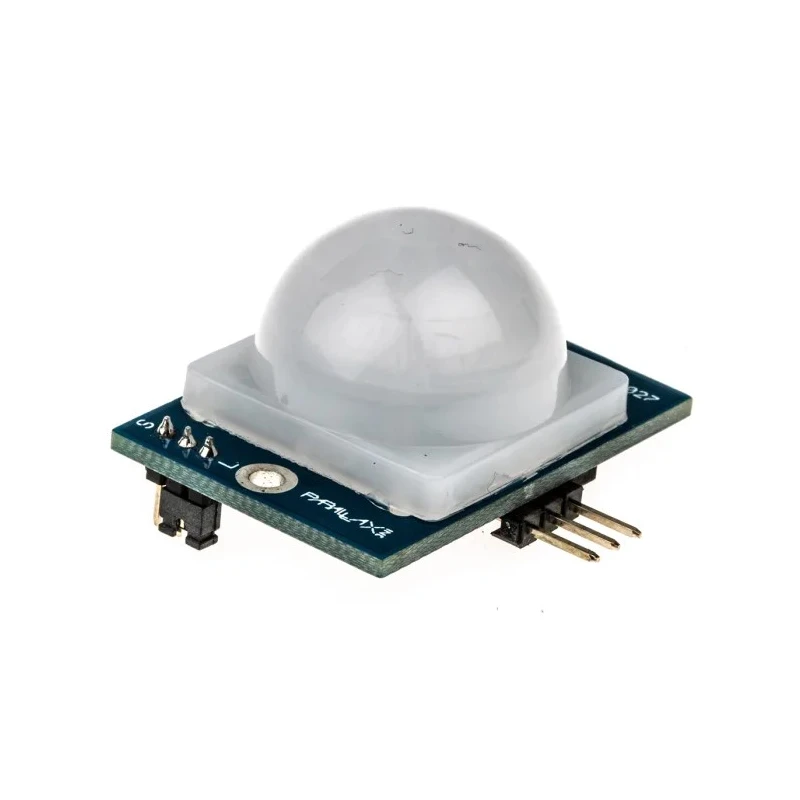

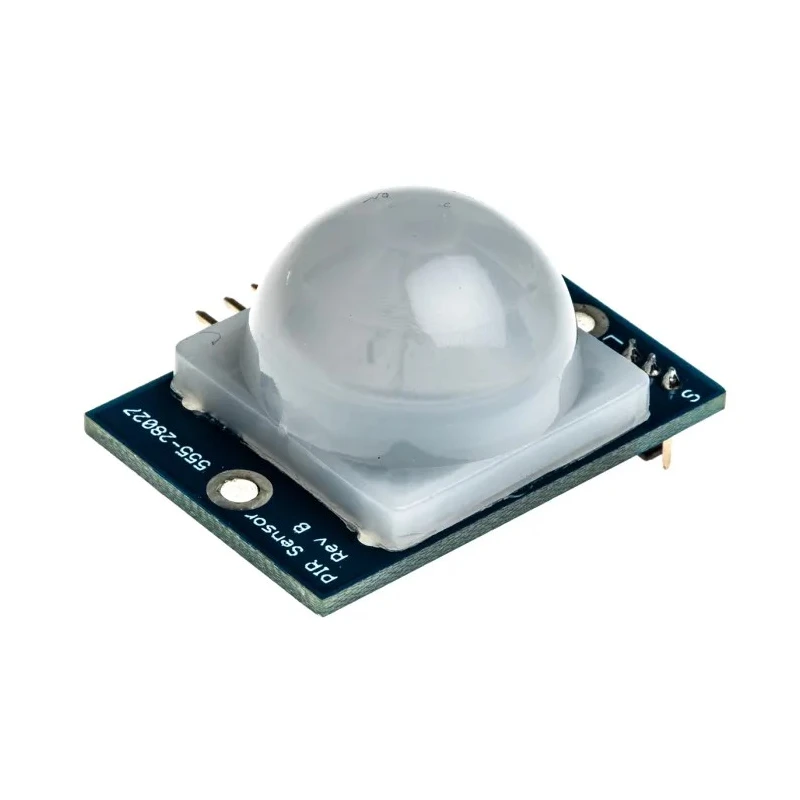

Parallax Inc PIR Sensor Module Motion Detection Sensor 555-28027
Specifications
| Country of Origin | China |
|---|---|
| Brand | Parallax Inc |
| Dimensions | 35.8 x 25.4 x 20.3mm |
| Communication | Single-bit high/low output |
| Sensor Technology | PIR Sensor |
| Standards/Approvals | RoHS |
| Kit Classification | Module |
| Parallax Inc 910-28027Brand | Parallax Inc |
| Parallax Inc PIR Sensor ModuleBrand | Parallax Inc |
Key Features
- Detects motion by sensing changes in infrared heat patterns.
- Offers detection range up to 10 meters in normal mode and 5 meters in reduced sensitivity mode.
- Operates on +3 to +6 VDC supply with low idle current of 130 μA and active current of 23 mA.
- Provides single-bit high/low logic output for easy microcontroller interfacing.
- Includes mounting holes suitable for 2-56 sized screws for secure installation.
- Compact size of 35.8 x 25.4 x 20.3 mm for discreet placement in projects.
- On-board LEDs provide visual feedback when motion is detected.
- Jumper configurable for normal or reduced sensitivity operation.
Product Description
Parallax Inc 555-28027 PIR Sensor Module is a compact, low-power sensor development tool that detects motion by monitoring changes in infrared heat emitted by objects. This pyroelectric sensor module outputs a logic high signal when motion is detected, making it ideal for embedded system applications and experimental robotic systems.
It operates with a supply voltage between +3 V to +6 V DC, consuming only 130 μA in idle mode and drawing a maximum of 23 mA during active detection (no load). The product features jumper-selectable sensitivity mode, supporting detection distances of up to 10 meters in normal mode or 5 meters when reduced sensitivity is selected.
The module's 3-pin SIP header facilitates direct breadboard or through-hole project integration, and mounting holes allow secure attachment with standard 2-56 screws. On-board LEDs illuminate the sensor lens to offer fast visual indication of detected motion.
It is designed to operate reliably within ambient temperatures from 0°C to 50°C and has an approximate 90° field of view, ensuring effective detection coverage. Applications include alarm systems, motion-activated night lights, animated holiday props, and other automation tasks requiring reliable presence detection.
Detects motion by sensing infrared pattern changes. Jumper selectable sensitivity for normal or reduced detection range. Low power consumption with 130 μA idle and 23 mA active. Compact size and mounting holes for easy integration.
Operates within 0°C to 50°C temperature range. Approximately 90° field of view for broad detection coverage. Single-bit digital output simplifies microcontroller interfacing. Ideal for motion-activated lighting and alarm systems.
Extensively documented for educational and development purposes.
This sensor module by Parallax Inc provides robust motion detection for embedded electronics, robotics, and automation projects. Explore more sensor and development tools in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Parallax Inc PIR Sensor Module offers a detection range of up to 10 meters in normal mode and 5 meters in reduced sensitivity mode.
It operates on a supply voltage between +3 to +6 VDC, with a low idle current of 130 μA and an active current of 23 mA.
The module provides a single-bit high/low logic output, making it easy to interface with microcontrollers.
The dimensions of this model are 35.8 x 25.4 x 20.3 mm, allowing for discreet placement in various projects.
It has an approximate field of view of 90°, ensuring effective coverage for motion detection.
This PIR sensor module is designed to operate reliably within ambient temperatures from 0°C to 50°C.
The sensitivity can be configured using a jumper, allowing selection between normal and reduced sensitivity modes.
This model is suitable for applications such as alarm systems, motion-activated night lights, and animated holiday props.
The module includes mounting holes suitable for 2-56 sized screws, allowing for secure installation.
The sensor module is compliant with RoHS standards, ensuring it meets environmental safety regulations.
This model utilizes PIR (Passive Infrared) sensor technology to detect motion by sensing changes in infrared heat patterns.
The country of origin for this product is China.
