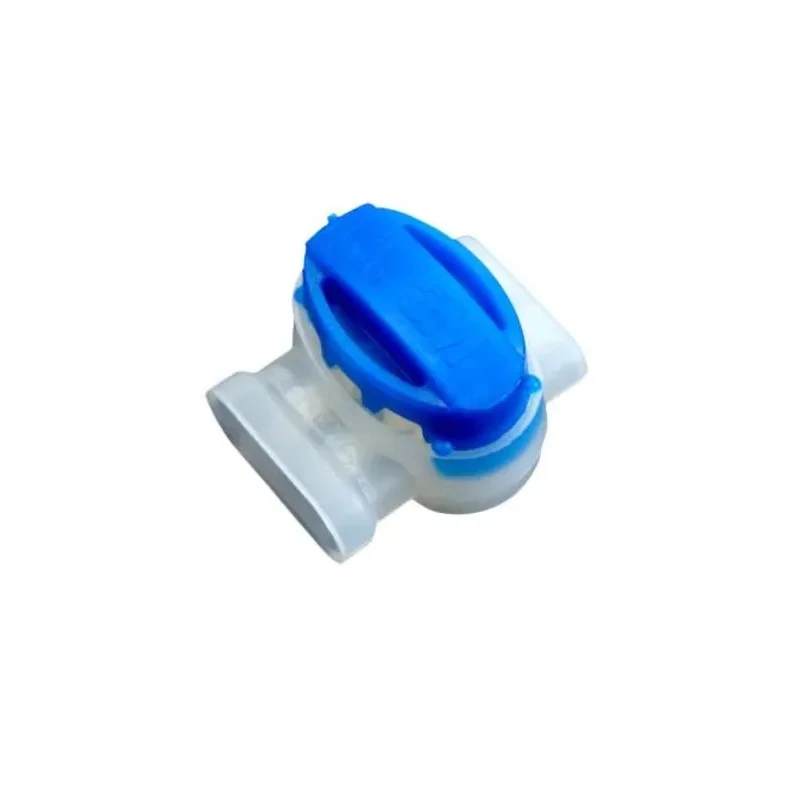

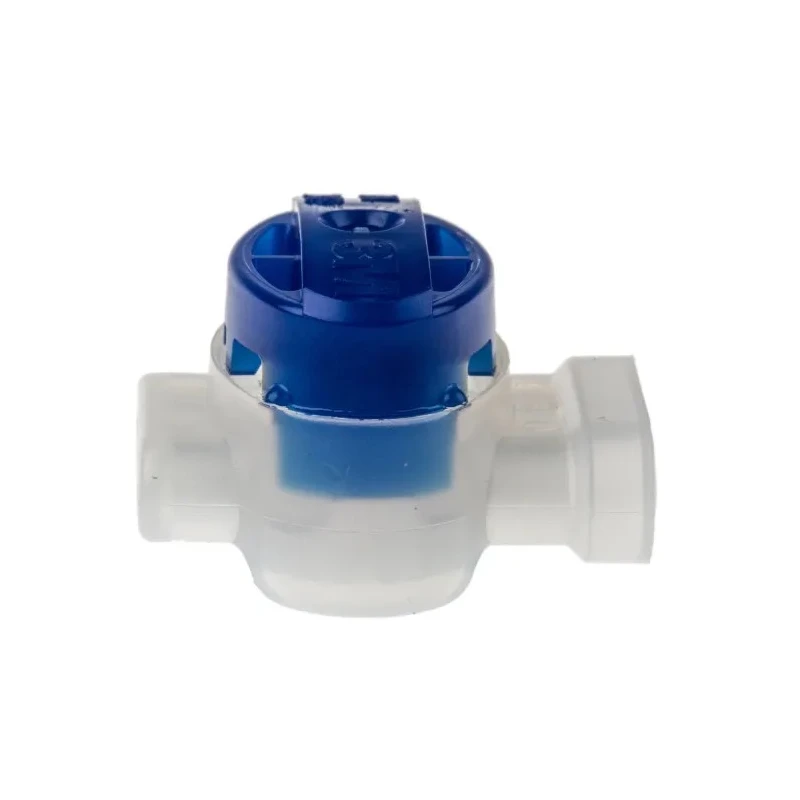

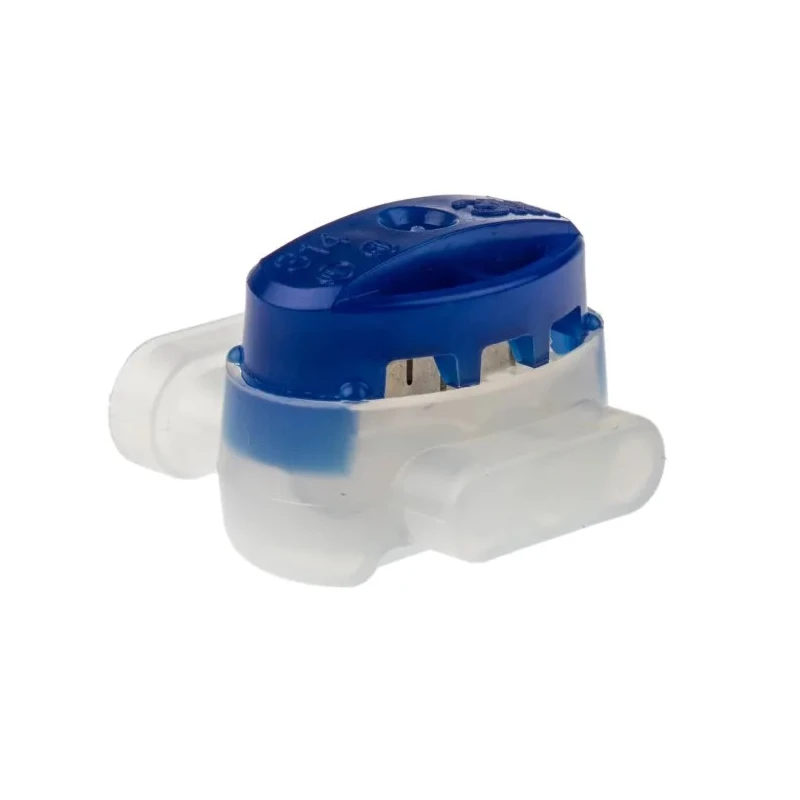

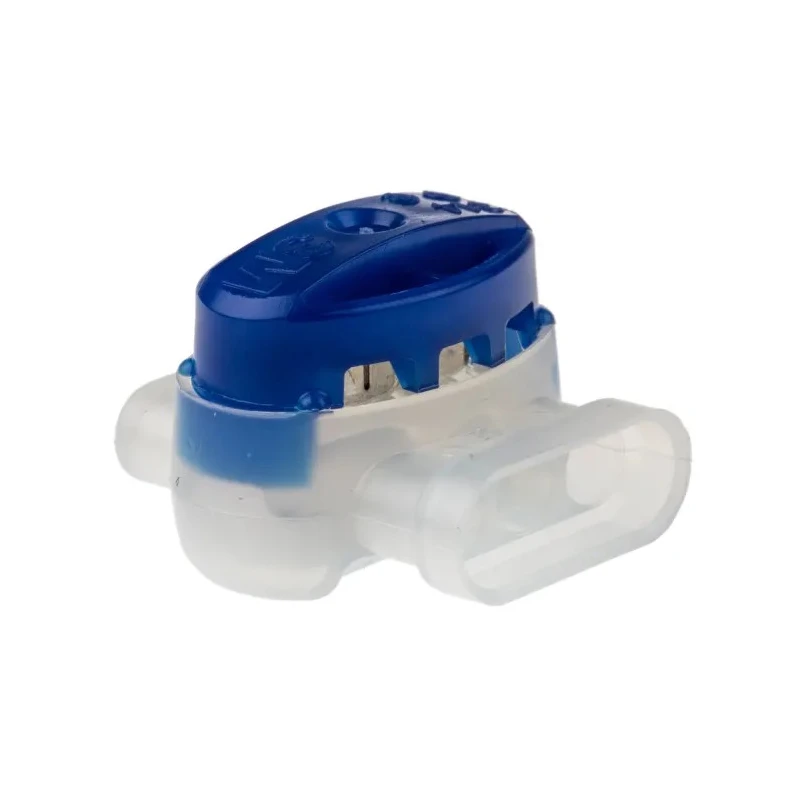

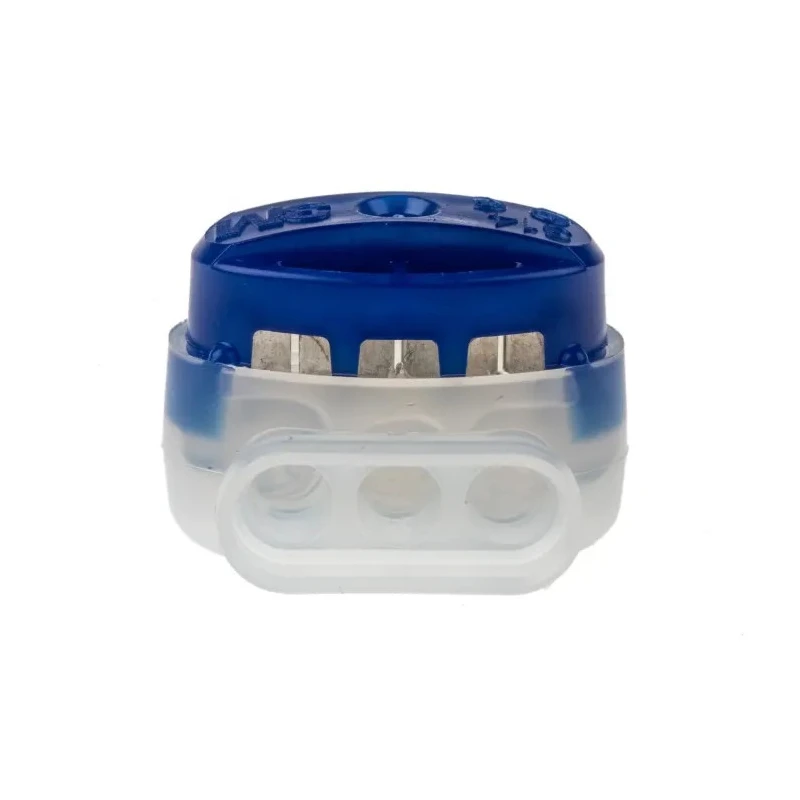

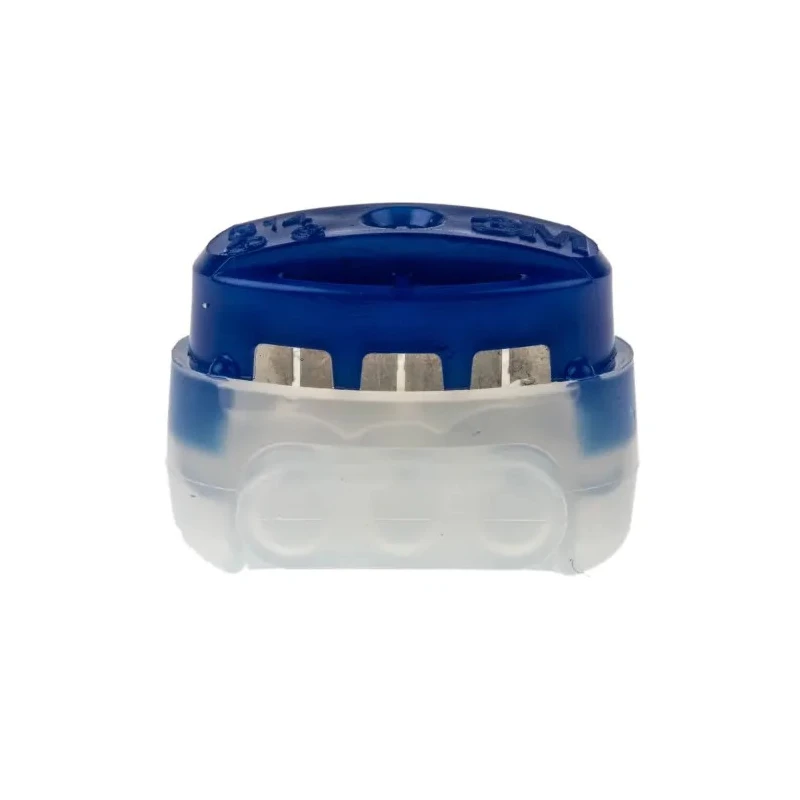

3M Scotchlok Pigtail Wire Splice Connector Blue Insulated Tin 22 AWG Overall Length 24.1mm SCOTCHLOK 314



Category Wire Splice Connector Brand 3M Condition New

Specifications

Country of Origin	United States
Diameter	3.8mm
Brand	3M
Colour	Blue
Operating Temperature Range	-40 °C to +105°C
THICKNESS	0.8mm
Model	SCOTCHLOK 314
Housing Material	Nylon
Insulation	Insulated
Overall Length	24.1mm
Contact Material	Brass
Series	Scotchlok
Termination Type	Cable
Insulation Material	Flame Retardant Nylon
Contact Plating	Tin
Minimum Wire Size AWG	14AWG
Maximum Wire Size AWG	22AWG
Splice Type	Pigtail
Contact Dimensions	24.1 x 11.9 x 23.4 mm

Key Features

Supports wire sizes from 22 AWG to 14 AWG for versatile applications.
Features flame retardant nylon insulation for enhanced safety.
Brass contact material with tin plating ensures reliable conductivity and corrosion resistance.
Operating temperature range from -40°C to +105°C makes it suitable for harsh environments.
Lightweight design at approximately 3.49 grams reduces strain in installations.
Easy tool-less installation by simply pushing the cap to secure wires.
Ideal for marine, automotive, and lighting applications requiring secure wire connections.

Product Description

3M SCOTCHLOK 314 wire splice connector is a blue insulated pigtail connector designed for efficient and secure wire terminations. It supports wire sizes ranging from 22 AWG to 14 AWG and measures 24.1 mm in overall length. This connector is made of flame retardant nylon housing which provides abrasion resistance and safety during use. It incorporates a brass contact with tin plating to ensure dependable electrical connections and resist corrosion over time.

The connector operates reliably in a wide temperature range from -40°C to +105°C, making it suitable for industrial, automotive, marine, and lighting applications that demand durability in harsh or wet environments. The light weight of approximately 3.49 grams helps to reduce installation strain and supports easy handling. The termination process is tool-less using an Insulation Displacement Contact (IDC) mechanism, where the wires are inserted and the cap is pressed down to achieve a secure connection.

Its compact dimensions of 24.1 x 11.9 x 23.4 mm make it convenient for installations where space is limited. The connector's blue color enables easy visual identification in complex setups. The flame retardant nylon housing and corrosion resistant contacts ensure safety and longevity in demanding conditions.

Supports wire sizes from 22 AWG to 14 AWG for versatile applications. Flame retardant nylon insulation provides safety and durability. Brass contacts with tin plating resist corrosion and ensure conductivity. Wide operating temperature from -40°C to +105°C suits harsh environments.

Lightweight design reduces stress during installation. Tool-less IDC termination simplifies cable setup. Compact size fits tight spaces in automotive or marine wiring. Blue color coding aids easy identification during installation.

This 3M SCOTCHLOK 314 Wire Splice Connector is ideal for industrial, automotive, marine engineering, and lighting applications requiring fast, reliable, and durable splicing solutions. Browse the Electronics & Electricals category on EnvMart for related connectors and splice accessories.
