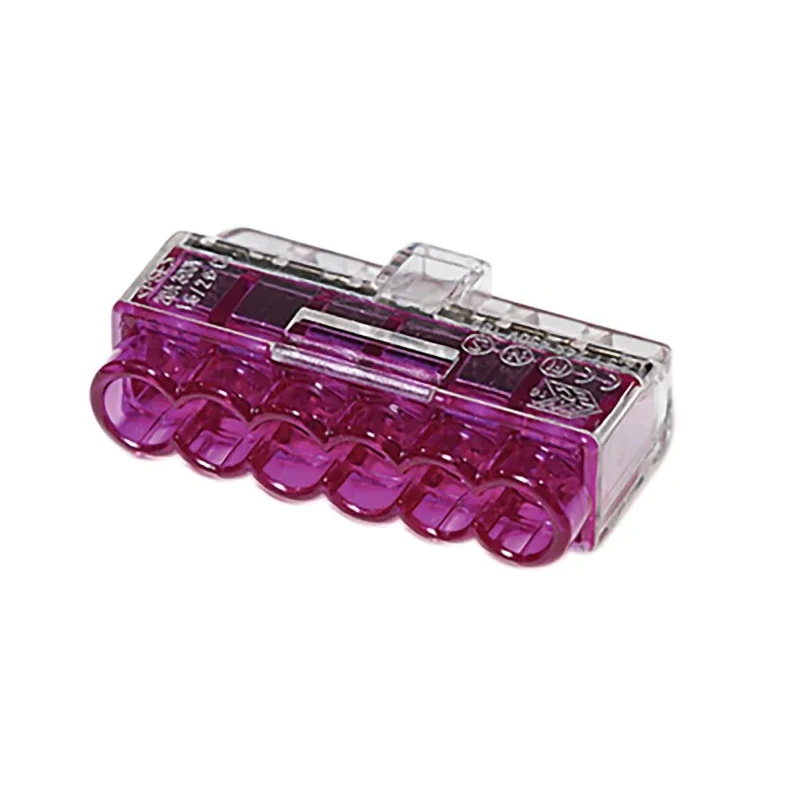

HellermannTyton HelaCon Plus Mini Insulated Wire Splice Connector Push-in Spring Termination 14 to 148-90040 HCPM-6-PC-CL/VT
Specifications
| Country of Origin | China |
|---|---|
| Brand | HellermannTyton |
| Colour | Blue, Yellow, Black, Orange, Transparent, Violet |
| Operating Temperature | -30°C to +85 °C |
| Model | 148-90040 HCPM-6-PC-CL/VT |
| Insulation | Insulated |
| Overall Length | 16.5mm |
| Series | HelaCon Plus Mini |
| Termination Type | Push-in Spring |
| Insulation Material | Polycarbonate |
| Max. current | 24 A |
| Max. voltage | 450 V |
| Standards/Approvals | UL 94 V-O |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 14AWG |
| Flammability | UL94V0 |
| Stripping Length | 11 mm |
| HellermannTyton Wire Splice Connector, Tin 22 → 12 AWGBrand | HellermannTyton |
Key Features
- Push-in spring technology allows tool-free installation.
- Insulated with polycarbonate housing for safety and durability.
- Suitable for wire sizes from 28 AWG to 14 AWG.
- Compact 16.5 mm overall length saves space in electrical panels.
- Maximum current rating of 24 A and voltage rating of 450 V.
- Suitable for solid and stranded wires with stripping length of 11 mm.
- Compliance with UL 94 V-0 flammability standard.
- Operating temperature range from -30°C to +85°C for versatile environments.
Product Description
HellermannTyton 148-90040 HCPM-6-PC-CL/VT HelaCon Plus Mini Wire Splice Connector delivers professional cable connection with ease and safety due to its push-in spring termination and insulated polycarbonate body. This connector is designed to connect solid and stranded wires ranging from 28 AWG to 14 AWG with a maximum current capacity of 24 A and voltage rating up to 450 V.
The compact 16.5 mm overall length assists in saving space, making it ideal for electrical installation applications in industrial, commercial, and residential settings. Its innovative double spring technology ensures low insertion force and reliable contact, which improves installation speed and quality.
Featuring six distinct colors (Blue, Yellow, Black, Orange, Transparent, Violet), the connectors allow easy identification and support different conductor diameters within each entry. The transparent housing permits visual inspection to confirm correct installation, enhancing safety and maintenance ease.
These connectors meet UL 94 V-0 flammability standards and operate reliably in temperatures from -30°C to +85 °C. The stripping length requirement of 11 mm assists in consistent and safe wire preparation.
Push-in spring technology enables quick tool-free cable connection. Insulated polycarbonate housing offers durability and safety. Supports wire sizes from 28 AWG to 14 AWG for versatile use. Compact 16.5 mm size saves installation space.
Color-coded design aids easy identification. Rated for 24 A current and 450 V voltage. Visual inspection through transparent housing improves reliability. UL 94 V-0 flame retardant compliance ensures safety. Operates in harsh temperature conditions between -30°C and +85°C.
This HellermannTyton splice connector is suitable for electrical, industrial, manufacturing, and building wiring applications where reliable and fast wire connections are essential. Explore more connectors and power distribution products in electronics and electrical categories at EnvMart.
