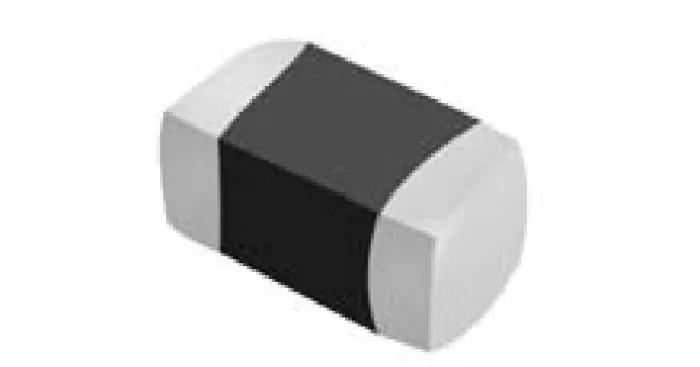

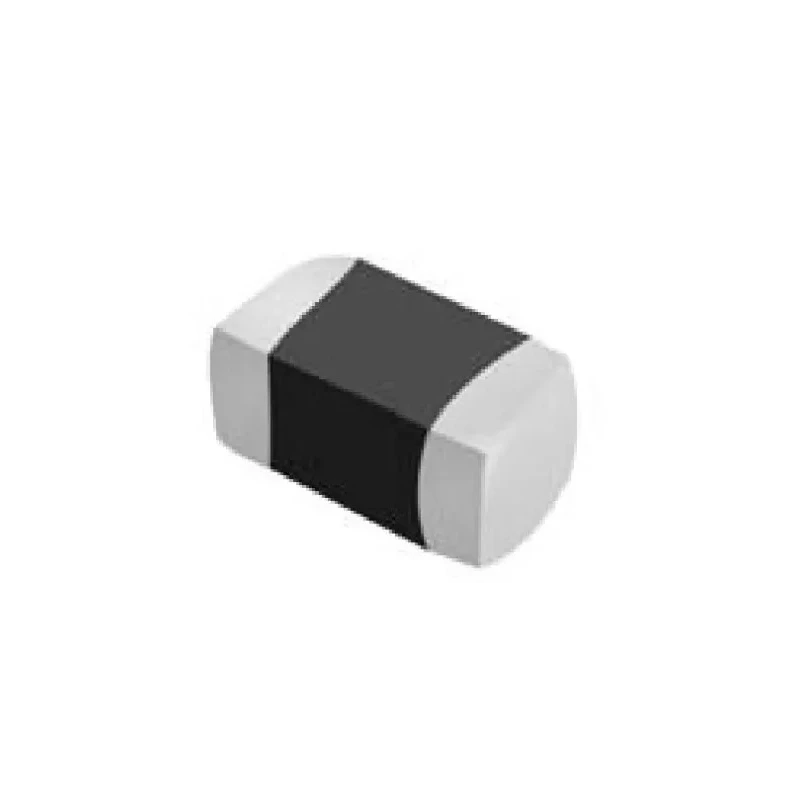

Abracon 0603 Shielded Surface Mount Inductor with Ferrite Core, 2.2 μH Flat Wire Winding ±20 %, 250 mA IDC ASMPH-0603-2R2M-T

Abracon ASMPH-0603-2R2M-T is a shielded surface mount inductor with a ferrite core, providing an inductance value of 2.2 μH and a tolerance of ±20%. It supports a maximum DC current of 250 mA, making it ideal for portable communication devices such as mobile phones, MP3 players, digital cameras, and other compact electronics. Its flat wire winding construction and monolithic design ensure high reliability and excellent solderability.

The inductor is built in a low-profile 0603 package with length and diameter of 1.6 mm and a height and depth of 0.8 mm, favoring compact circuit designs. The magnetically shielded structure reduces cross coupling and electromagnetic interference, enhancing performance in sensitive electronic circuits. It operates reliably within a temperature range of -55°C to 125°C.

Key material features include a ferrite core and molded construction, ensuring robustness and durability. Maximum DC resistance is 0.38 Ω, providing efficient current flow with minimal losses. The device is RoHS compliant, supporting environmentally responsible electronics manufacturing.

Tape & reel packaging facilitates high-volume manufacturing and automated assembly processes, optimized for soldering surface mount devices. The inductor’s surface mount termination style simplifies PCB layout integration.

Shielded ferrite core minimizes electromagnetic interference. Low profile 0603 size supports compact circuit design. Flat wire winding enhances current capacity with low resistance. Wide operating temperature range from -55°C to 125°C.

RoHS compliant construction for environmental safety. Monolithic structure ensures high reliability and durability. Surface mount termination for easy PCB assembly.

This Abracon surface mount inductor is suitable for industrial electronics, consumer communications, portable devices, and general electronic component applications. Browse EnvMart’s Electronics Components section to explore more Surface Mount Inductors and related passive components from leading manufacturers.
