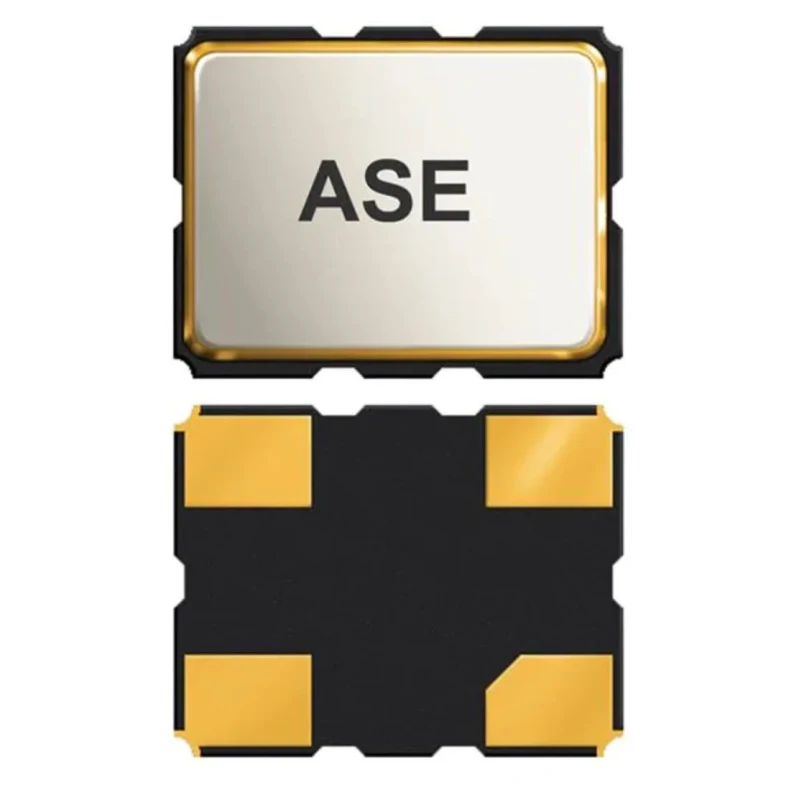

Abracon 1.8432MHz Crystal Oscillator CMOS 4-Pin Surface Mount ±50 ppm ASE-1.8432MHZ-LC-T

Free Delivery in India | Lowest Global Shipping Charges

Abracon 1.8432MHz Crystal Oscillator CMOS 4-Pin Surface Mount ±50 ppm ASE-1.8432MHZ-LC-T

Name: Abracon 1.8432MHz Crystal Oscillator CMOS 4-Pin Surface Mount ±50 ppm ASE-1.8432MHZ-LC-T
Brand: Abracon
SKU: 114698
Price: 1.24 USD
Availability: InStock



Category Crystal Oscillator Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	1.2mm
Length	3.2mm
Model	ASE-1.8432MHZ-LC-T
Packaging	Tape & Reel
Width	2.5mm
Mount Type	Surface
Series	ASE
Maximum Operating Temperature	85°C
Output Frequency	1.8432MHz
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Maximum Supply Voltage	3.47V
Minimum Supply Voltage	3.14V
Oscillator Type	Crystal Oscillator
Output Level	CMOS

Key Features

Operates with low current consumption suitable for sensitive electronics.
Compact SMD package measuring 3.2mm x 2.5mm x 1.2mm.
Tape and reel packaging for automated assembly processes.
Wide operating temperature range from -40°C to 85°C ensures reliability.
Designed for applications including CCD clock for VTR cameras, PDAs, wireless communications, and laptops.
Features a tri-state function and low RMS jitter of 5ps max.
RoHS and RoHS II compliant ensuring environmental safety.
Maximum supply voltage at 3.47V and minimum at 3.14V.

Product Description

The Abracon ASE-1.8432MHZ-LC-T is a precision 1.8432MHz crystal oscillator known for its CMOS output and 4-pin surface mount design. This low-profile oscillator, measuring 3.2mm in length, 2.5mm in width, and 1.2mm in height, is engineered for modern electronics requiring stable frequency references.

Featuring a frequency stability of ±50 ppm, this device excels in applications such as CCD clocks for VTR cameras, PDA systems, wireless communication devices, and laptops, providing a reliable timing source. The oscillator supports a tri-state function and maintains a low RMS jitter of 5ps max, ensuring minimal signal distortion.

Operating over a broad temperature range from -40°C to 85°C, the ASE series supports demanding industrial and commercial environments. Its low current consumption and supply voltage range between 3.14V and 3.47V make it suitable for power-sensitive devices.

Manufactured with RoHS and RoHS II compliance, this oscillator aligns with environmental and safety standards, suitable for use in industrial, medical, and automotive electronics excluding automotive standard compliance for this model.

The oscillator is delivered in tape and reel packaging optimized for automated surface mount assembly processes, ensuring efficient manufacturing integration. Low current consumption suitable for power-sensitive applications.

Compact surface mount package for space-constrained PCB designs. Wide operating temperature range from -40°C to 85°C enhances reliability in harsh environments. Tri-state function enables control over oscillator output. Low RMS jitter ensures stable timing signals.

RoHS and RoHS II compliant, environmental friendly component. Accurate frequency stability of ±50 ppm minimizes timing errors. Suitable for use in CCD cameras, PDAs, wireless communication devices, and laptops.

This Abracon Crystal Oscillator is an essential component for electronics manufacturers demanding reliable, precise timing in their products. Explore additional Abracon products and related electronics components at EnvMart to fulfill your project needs.
