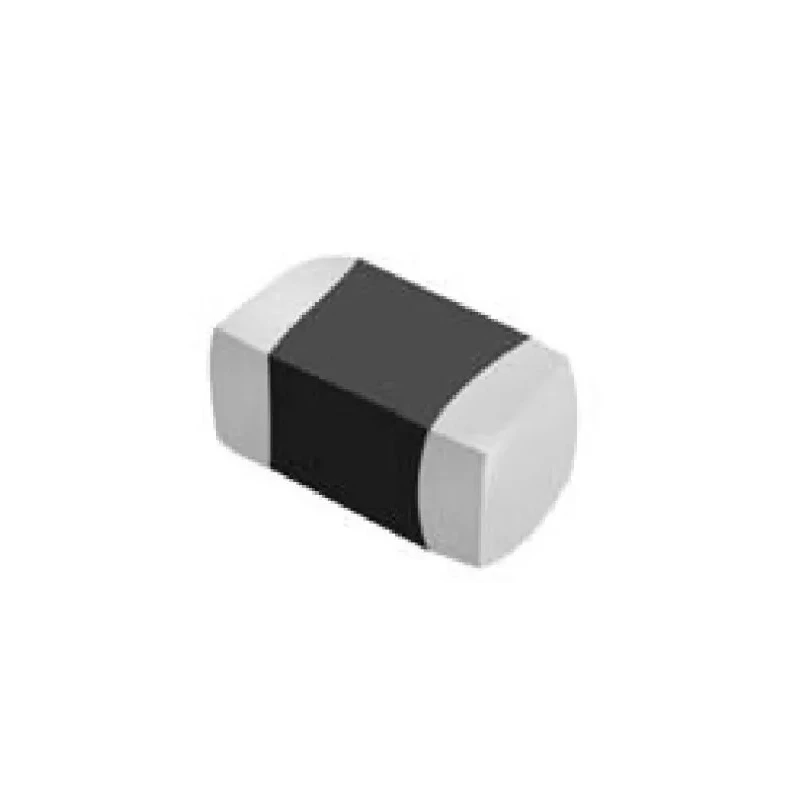

Abracon 0603 Shielded Surface Mount Inductor with Ferrite Core Multilayer 1.5 μH ±20% 420 mA ASMPH-0603-1R5M-T
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 1.6mm |
| Brand | Abracon |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | ASMPH-0603-1R5M-T |
| Depth | 0.8mm |
| Packaging | Tape & Reel |
| Series | ASMPH-0603 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 1.5μH |
| Standards/Approvals | RoHS |
| Package/Case | 0603 |
| Maximum DC Current | 420mA |
| Maximum DC Resistance | 0.29Ω |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Multilayer |
Key Features
- Constructed with low loss ferrite core for high efficiency.
- Multilayer design supports high-speed switching frequencies.
- Compact 0603 package size enables space-saving PCB layout.
- Shielded structure minimizes electromagnetic interference and cross coupling.
- Maximum DC current rating of 420 mA ensures reliable performance.
- Low maximum DC resistance of 0.29 Ω reduces power loss.
- Surface mount termination style offers excellent solderability and heat resistance.
- Operating temperature range from -55°C to 125°C for diverse environments.
Product Description
Abracon ASMPH-0603-1R5M-T is a 0603 shielded surface mount inductor designed with a ferrite core and multilayer construction, offering 1.5 μH inductance with a tolerance of ±20% and a maximum DC current of 420 mA. This inductor is engineered for use in compact and high-frequency electronic circuits requiring efficient energy storage and low electromagnetic interference.
The multilayer chip power inductor is manufactured using low loss ferrite material to support high-speed switching frequencies, which makes it ideal for DC/DC converter applications, power management, telecommunications, and other high-performance electronic equipment where board space is limited.
This product features a magnetically shielded design that effectively eliminates cross coupling, enhancing circuit reliability. The compact 0603 package (1.6 mm length, 0.8 mm height, 0.8 mm depth) allows dense component placement on PCBs. Robust surface mount termination ensures excellent solderability and heat resistance, suitable for modern assembly processes.
The inductor provides a low maximum DC resistance of 0.29 Ω, minimizing power losses and improving efficiency. It operates reliably over a broad temperature range from -55°C to 125°C, making it suitable for a variety of industrial and commercial electronic applications. This component complies with RoHS directives, supporting environmentally responsible product design.
Typical use cases include power supply filtering, signal processing, noise suppression, and energy storage in consumer electronics, industrial control systems, telecommunications equipment, and automotive electronics (though it is not automotive standard certified).
Constructed with low loss ferrite core for high efficiency. Multilayer design to support high-speed switching frequencies. Compact 0603 size for space-limited PCBs. Shielded structure to reduce electromagnetic interference.
Maximum DC current of 420 mA for reliable performance. Low DC resistance of 0.29 Ω reduces power loss. Surface mount termination ensures excellent soldering. Wide operating temperature range from -55°C to 125°C. RoHS compliant.
Explore more electronic components and Surface Mount Inductors at EnvMart to find the perfect fit for your industrial, telecommunications, and consumer electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 1.5 μH with a tolerance of ±20%.
The maximum DC current rating for this inductor is 420 mA.
It operates reliably over a temperature range from -55°C to 125°C.
The dimensions of this model are 1.6 mm in length, 0.8 mm in height, and 0.8 mm in depth.
This inductor is constructed with a low loss ferrite core.
The shielded structure minimizes electromagnetic interference and cross coupling, enhancing circuit reliability.
The maximum DC resistance is 0.29 Ω, which helps reduce power loss.
It features a surface mount termination style, ensuring excellent solderability and heat resistance.
Yes, this product complies with RoHS directives, supporting environmentally responsible product design.
Typical applications include power supply filtering, signal processing, noise suppression, and energy storage in various electronic devices.
It is packaged in tape and reel format, suitable for automated assembly processes.
This inductor belongs to the ASMPH-0603 series.
