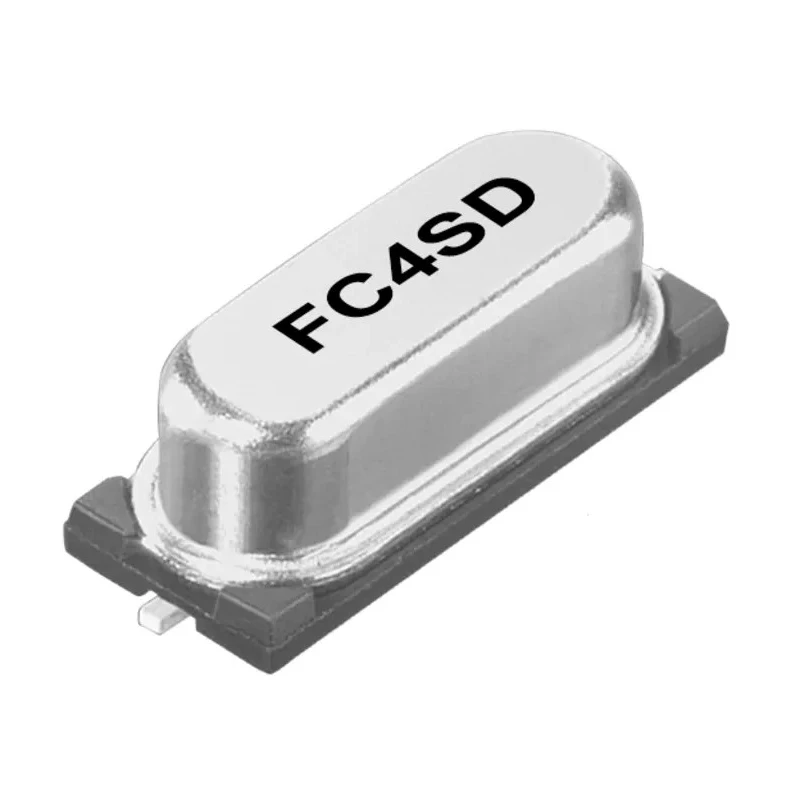

Abracon Surface Mount Crystal 3.6864 MHz ±30 ppm, 2-Pin SMD, 13.5x5x4.5mm, Tape & Reel FC4SDCBMF3.6864-T1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 4.5mm |
| Length | 13.5mm |
| Model | FC4SDCBMF3.6864-T1 |
| Packaging | Tape & Reel |
| Width | 5mm |
| Mount Type | Surface |
| Series | FC4SD |
| Maximum Operating Temperature | 70°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 3.6864MHz |
| Load Capacitance | 20pF |
Key Features
- Standard frequency of 3.6864 MHz for precise timing requirements.
- Surface mount design with 2-pin configuration for ease of PCB integration.
- ±30 ppm frequency tolerance ensures reliable signal stability.
- Load capacitance of 20 pF, supporting a wide range of oscillator circuits.
- Supplied on tape and reel packaging for efficient automated assembly processes.
- Operating temperature range from -20°C to +70°C, ideal for demanding applications.
- RoHS compliant for enhanced environmental compatibility.
- Typically used in industrial, communication, and commercial electronics applications.
Product Description
Abracon FC4SDCBMF3.6864-T1 is a precision surface mount Crystal Unit designed to provide highly stable time and frequency control in a variety of electronics applications. Featuring a standard frequency of 3.6864 MHz, this crystal delivers excellent frequency tolerance of ±30 ppm and stability of ±50 ppm, making it ideal for demanding embedded systems, microcontrollers, communication modules, and other high-precision devices.
The compact surface mount package hosts 2 robust pins and is dimensioned at 13.5 mm in length, 5 mm in width, and 4.5 mm in height. Designed for automated PCB assembly, it is conveniently supplied on a tape and reel, simplifying production-line processes in both medium and high-volume deployments.
FC4SDCBMF3.6864-T1 features a load capacitance of 20 pF, shunt capacitance of 7 pF, and adheres to RoHS compliance standards for safer and environmentally considerate electronics manufacturing. The crystal operates reliably over a temperature range from -20°C to +70°C, lending versatility for use in challenging industrial and commercial environments.
Its resistance weld seal offers stability and longevity. The termination consists of Sn, Ag3.0, and Cu0.5 for reliable PCB contact. Automotive standard compliance is not applicable, focusing its suitability on industrial, consumer, and commercial electronics, including clocks, interface circuits, and communication devices.
Standard frequency of 3.6864 MHz for precise and stable operation. 2-pin SMD design for compact and efficient board layout. Frequency tolerance of ±30 ppm and frequency stability of ±50 ppm. Temperature range: -20°C to +70°C, supporting robust performance.
Compliant with RoHS environmental regulations. Load capacitance: 20 pF, shunt capacitance: 7 pF. Resistance weld seal construction and reliable metal termination. Supplied in tape and reel packaging for streamlined assembly.
Ideal for microcontroller clock sources, timing, RF and data communication modules.
Used extensively in industrial, laboratory, consumer, and commercial electronic devices, this crystal is excellent for sectors including automation, communication, test and measurement, and embedded system design.
Discover more high-precision crystal and timing solutions in the Abracon product range on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 3.6864 MHz, providing precise timing for various applications.
This model has a frequency tolerance of ±30 ppm, ensuring reliable signal stability.
The dimensions of this surface mount crystal are 13.5 mm in length, 5 mm in width, and 4.5 mm in height.
The load capacitance of this crystal unit is 20 pF, which supports a wide range of oscillator circuits.
This crystal unit operates reliably over a temperature range from -20°C to +70°C.
It is supplied on tape and reel packaging, facilitating efficient automated assembly processes.
This model uses a surface mount design, making it suitable for compact PCB layouts.
The shunt capacitance of this crystal unit is 7 pF, which is relevant for its performance in circuits.
This model is RoHS compliant, ensuring it meets environmental regulations for electronics manufacturing.
This crystal is commonly used in industrial, communication, and commercial electronics applications, including clocks and interface circuits.
The pin count of this crystal unit is 2, which is standard for its surface mount design.
The country of origin for this crystal unit is India.
