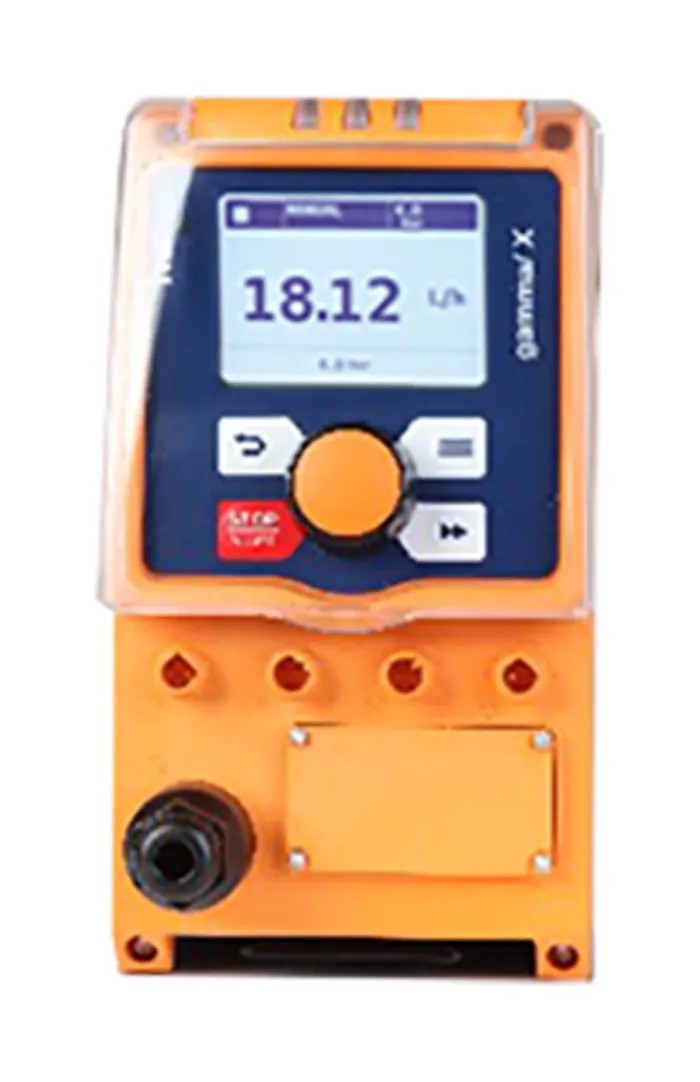

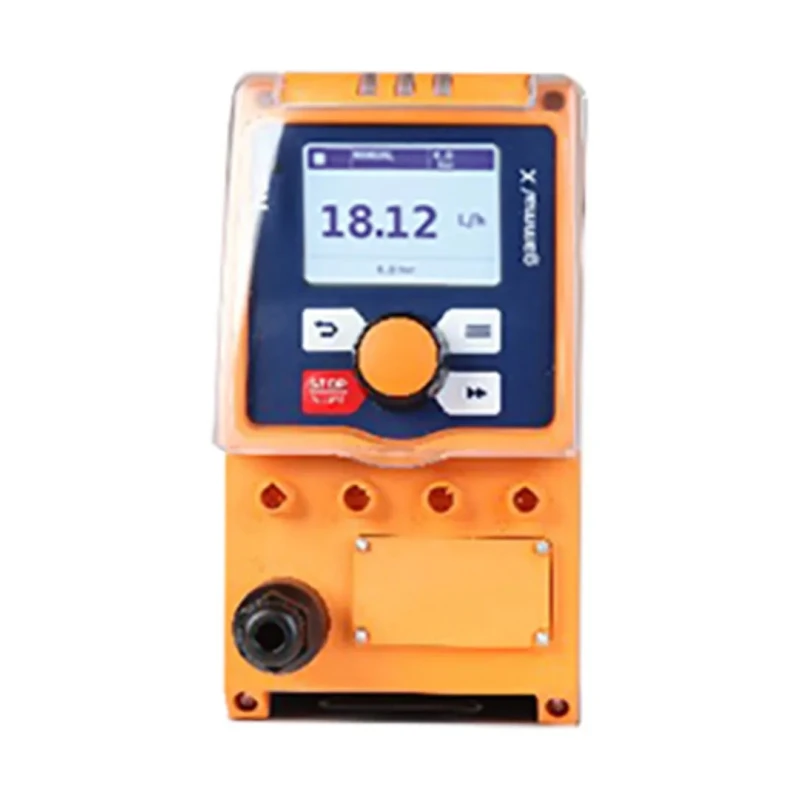

ProMinent Diaphragm Electric Positive Displacement Pump 24L/h 4 bar 100-230V GMXA0424PVT20000U11130BEN

Free Delivery in India | Lowest Global Shipping Charges

ProMinent Diaphragm Electric Positive Displacement Pump 24L/h 4 bar 100-230V GMXA0424PVT20000U11130BEN

Name: ProMinent Diaphragm Electric Positive Displacement Pump 24L/h 4 bar 100-230V GMXA0424PVT20000U11130BEN
Brand: ProMinent
SKU: 187604
Price: 3482.61 USD
Availability: InStock



Category Positive Displacement Pumps Brand ProMinent Condition New

Specifications

Country of Origin	Germany
Brand	ProMinent
Body Material	Polyvinyl Fluoride
Maximum Operating Pressure	4 bar
Inlet Connection Type	3/4 in G
Model	GMXA0424PVT20000U11130BEN
IP Rating	IP65
Drive Type	Electric
Maximum Fluid Temperature	20°C
Pump Type	Diaphragm
Series	GMXa
Input power	24, 30W
Supply Voltage	100, 230V
Maximum Flow Rate	24L/h
Inlet Connection Size	3/4 in
Wetted Materials	Polyvinyl Fluoride
Maximum Head Size	3m

Key Features

Pump features robust Polyvinyl Fluoride body and wetted materials ensuring chemical resistance.
IP65 rated for protection against dust and water jets.
Operates with input power of 24 to 30 watts for efficient performance.
Includes integrated 7-day timer and advanced pressure measurement controls.
Supports control via Profinet, Profibus, and CANbus communication protocols.
Automatic dosing adjustment and sensorless pressure measurement ensure precise operation.
Suitable for laboratory chemical monitoring and general water treatment applications.
Designed for operating fluid temperatures up to 20°C.

Product Description

ProMinent GMXA0424PVT20000U11130BEN diaphragm electric positive displacement pump delivers a maximum flow rate of 24 liters per hour with an operational pressure up to 4 bar. It operates on a supply voltage of 100 to 230 volts and an input power range of 24 to 30 watts. The pump is constructed with chemical-resistant Polyvinyl Fluoride materials for both the body and wetted components, making it suitable for demanding chemical dosing and metering applications.

This pump is designed for precise and reliable chemical dosing in various industrial, laboratory, and water treatment environments. Its integrated 7-day timer and pressure measurement enable optimized control and monitoring of dosing processes. Control interfaces include Profinet, Profibus, and CANbus, facilitating seamless integration into automated systems.

The robust IP65 rating ensures protection against dust ingress and water jets, making it suitable for harsh environments. The pump accommodates a maximum fluid temperature of 20°C and features 3/4 inch G inlet and outlet connections. Its compact design supports a maximum head of 3 meters, allowing its use in cooling water circuits, disinfectant metering, pH correction dosing, and paper industry defoamer applications.

Additional safety and operational features include sensorless pressure measurement, diaphragm rupture warning, automatic bleeding, and gas detection in the measurement head for improved dosing accuracy.

Pump constructed with chemical-resistant Polyvinyl Fluoride materials. Integrated 7-day timer with pressure measurement for precise dosing. Operates on 100-230V supply voltage with 24-30W input power. Supports communication via Profinet, Profibus, and CANbus protocols.

IP65 rated for protection in industrial environments. Maximum flow rate of 24 L/h and maximum operating pressure of 4 bar. Ideal for laboratory, water treatment, chemical dosing, and cooling water applications.

This diaphragm pump from ProMinent is manufactured in Germany and is suitable for various industrial and laboratory chemical metering tasks. Explore the broad range of Positive Displacement Pumps and chemical dosing solutions available on EnvMart for optimized fluid control.
