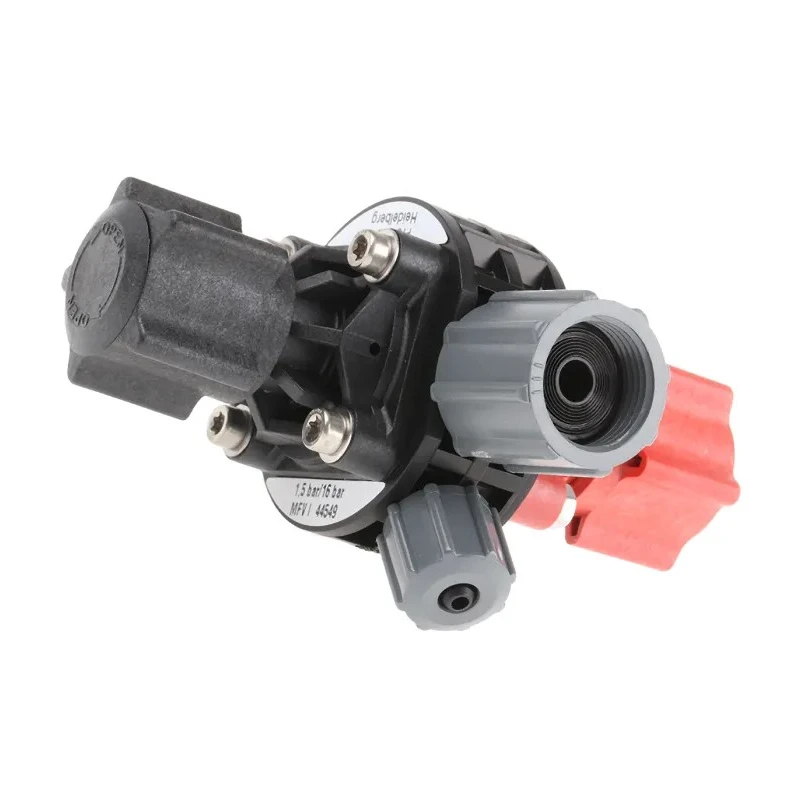

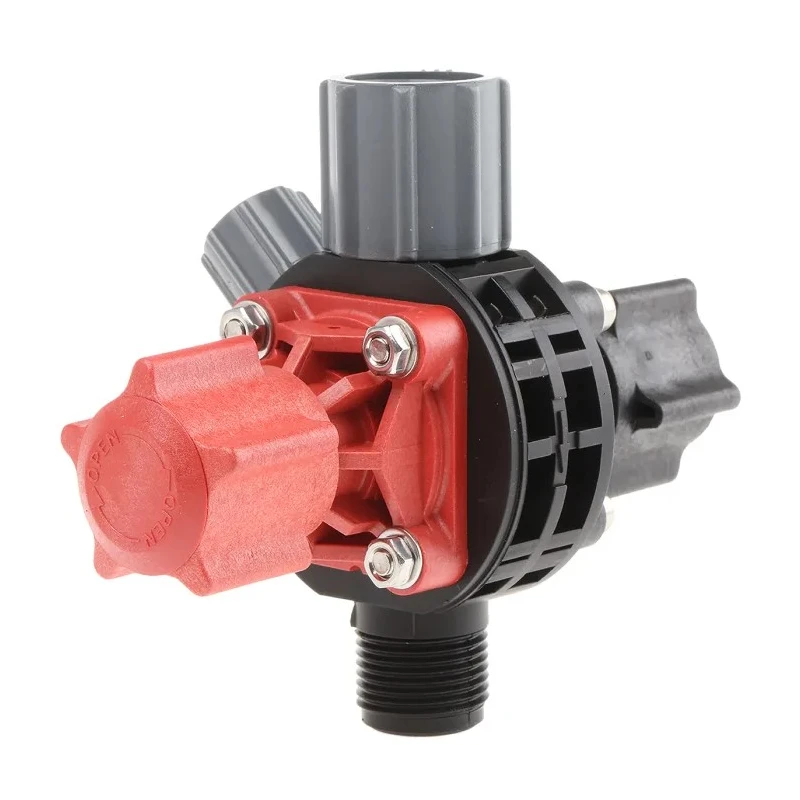

ProMinent Multi-Function Valve for Use with Dosing Pump 792011
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | ProMinent |
| Model | 792011 |
| For Use With | Dosing Pump |
| Standards/Approvals | USEPA 180.1, ISO 7027, DVGW (Specifications W 224 and W 624), DIN EN 2702 |
Key Features
- The back pressure valve opening pressure is 1.5 bar.
- The relief valve opening pressure is model dependent at 6 or 10 bar.
- Includes a priming aid for the backpressure valve.
- Equipped with a discharge line for easy servicing and maintenance.
- Constructed with a PVDF body and PTFE-coated diaphragm for chemical resistance.
- Uses FKM and EPDM seals suitable for various chemicals.
- Compatible with Gamma, Alpha, and Beta solenoid metering pumps.
- Supports applications across chemical, pharmaceutical, and food and drinks industries.
Product Description
ProMinent 792011 Multi-Function Valve is an industrial-grade valve combining relief and back pressure functionalities, specifically designed to mount directly onto dosing pump heads. The back pressure valve creates a consistent backpressure of 1.5 bar, ensuring precise chemical metering and protecting measurement accuracy during dosing processes.
The relief valve has opening pressures of either 6 or 10 bar depending on the specific model, providing operational safety by relieving excess pressure. The valve features a priming aid for the backpressure valve and a dedicated discharge line facilitating easy maintenance and servicing.
The valve body is manufactured from durable PVDF material, coupled with a PTFE-coated diaphragm to resist chemical corrosion, while FKM and EPDM seals offer reliable chemical compatibility. This versatility allows compatibility with a wide range of chemicals, making it suitable for use in demanding chemical, pharmaceutical, and food and beverage industries.
Designed for use with Gamma, Alpha, and Beta solenoid metering pumps, this valve is easy to operate using two rotary dials located on either side. These dials automatically return to their original positions upon release, ensuring ease of control and safety.
The ProMinent 792011 valve complies with key industry standards including USEPA 180.1, ISO 7027, and DVGW specifications W 224 and W 624, as well as DIN EN 2702, reflecting its high quality and reliability.
The back pressure valve opening pressure is 1.5 bar. Relief valve opening pressure available at 6 or 10 bar, model dependant. Priming aid included for the backpressure valve. Discharge line provision for servicing and maintenance.
PVDF body construction with PTFE-coated diaphragm. Seals made of FKM and EPDM materials suitable for chemicals. Compatible with Gamma, Alpha, and Beta solenoid metering pumps. Industrial applications in chemical, pharmaceutical, and food/drinks sectors.
Easy rotary dial operation for precision control. Explore more high-quality Pump Accessories and dosing system components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The back pressure valve opening pressure is 1.5 bar.
The relief valve has opening pressures of either 6 or 10 bar, depending on the specific model.
It is compatible with Gamma, Alpha, and Beta solenoid metering pumps.
The valve features a PVDF body and a PTFE-coated diaphragm, with seals made of FKM and EPDM materials.
This model is suitable for applications in the chemical, pharmaceutical, and food and beverage industries.
The valve includes a relief function to relieve excess pressure, ensuring operational safety during dosing processes.
Yes, it includes a priming aid for the backpressure valve to facilitate operation.
It complies with USEPA 180.1, ISO 7027, DVGW specifications W 224 and W 624, as well as DIN EN 2702.
The valve is operated using two rotary dials located on either side, which automatically return to their original positions upon release.
The discharge line is provided for easy servicing and maintenance of the valve.
The country of origin for this model is Germany.
It combines relief and back pressure functionalities, specifically designed to mount directly onto dosing pump heads for precise chemical metering.
