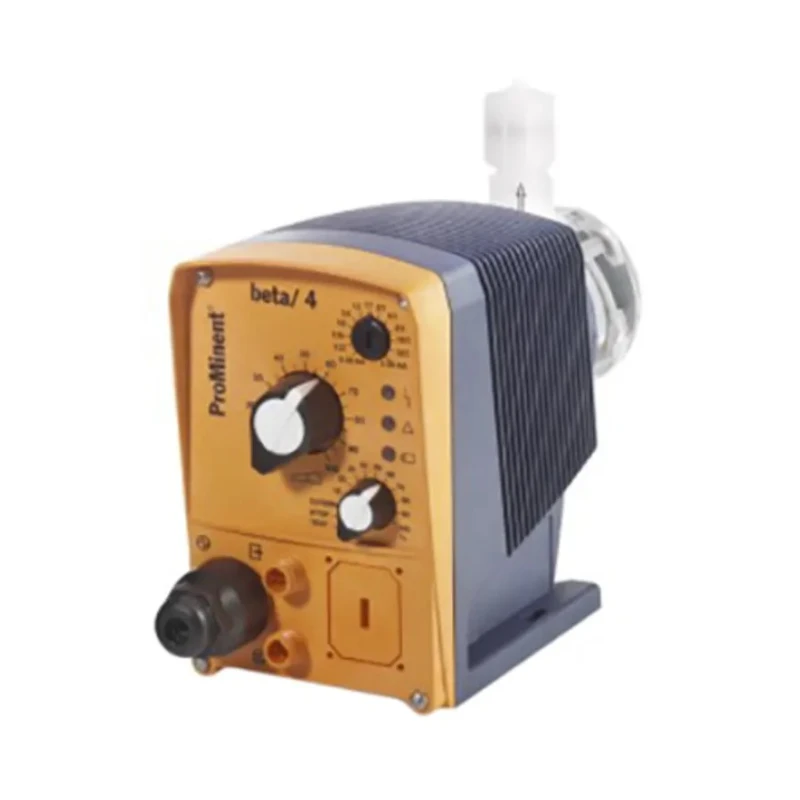

ProMinent Diaphragm Electric Positive Displacement Pump, 3.6L/h Flow Rate, 16 Bar Pressure BT4B1604PVT2000U1110000

ProMinent BT4B1604PVT2000U1110000 is a diaphragm electric positive displacement pump featuring an electric drive voltage of 100V and 230V, delivering a flow rate of 3.6 liters per hour and pressure up to 16 bar. Designed for industrial fluid dosing, this pump uses a solenoid-driven diaphragm to accurately control chemical metering in various process environments.

This model is engineered with a durable polyvinyl fluoride body and wetted materials, ensuring chemical resistance and long-term reliability. The pump's IP65 rating protects it from dust and water ingress, making it suitable for demanding industrial and laboratory conditions.

The performance is highly controllable with stroke length adjustment from 0% to 100% and stroke rate modifiable in 10% increments, allowing precise dosage adjustment. It features two non-return valves to prevent fluid backflow and an LED display that assists operators with status, warnings, and error messages for safe and informed operation.

This pump is energy efficient, consuming only 15.2W of input power, and is engineered to operate reliably at fluid temperatures up to 20°C. It is equipped for external control through voltage-free contacts and includes an input for level switch monitoring.

The ProMinent BT4B1604PVT2000U1110000 diaphragm pump is ideal for the chemical, pharmaceutical, food and beverage industries, as well as laboratory applications, metering disinfectants, pH correction, and water treatment processes.

This pump features a solenoid-operated diaphragm dosing head for precise fluid metering. It has an IP65 rating, making it suitable for harsh industrial environments. Maximum fluid temperature supported is 20°C ensuring safety during operation.

The input power consumption is low at 15.2 watts providing energy-efficient performance. It includes two non-return valves to prevent fluid backflow during operation. The body and wetted parts are made from durable polyvinyl fluoride material.

The stroke rate and stroke length are fully adjustable for versatile dosing control. LED display provides operational, warning, and error information clearly. Designed for applications in chemical, pharmaceutical, and food & beverage industries.

Self-bleeding dosing head simplifies pump maintenance and operation. Explore the full range of Positive Displacement Pumps and related industrial pumping systems available at EnvMart for your specialized process needs.
