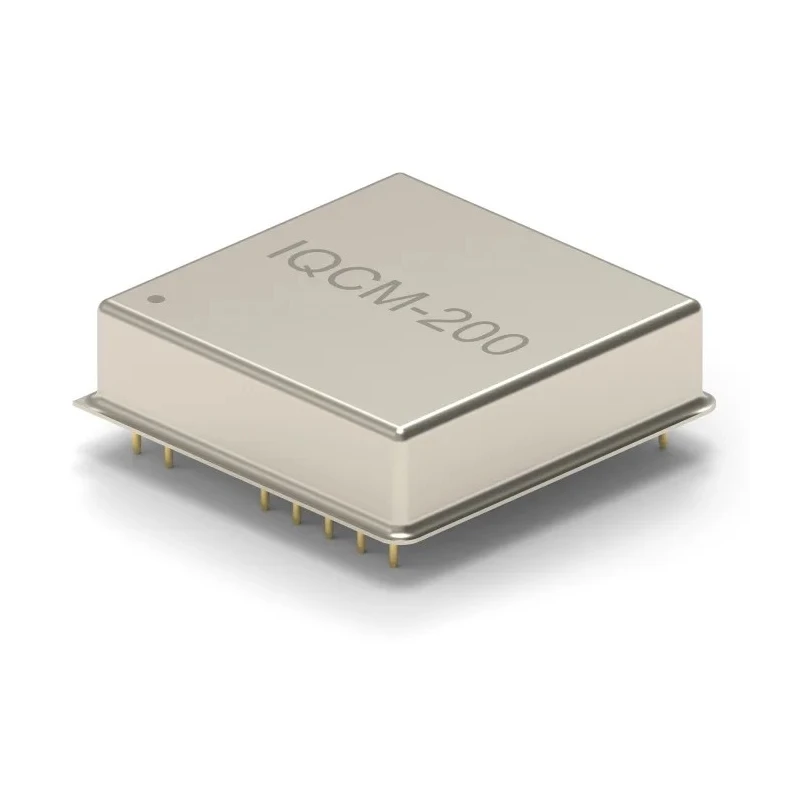

IQD 10MHz Oscillator Bulk ±10 ppb 14 Pin HCMOS Through Hole Mount LFOCXO070939B
Specifications
| Country of Origin | India |
|---|---|
| Brand | IQD |
| Model | LFOCXO070939B |
| Packaging | Bulk |
| Mount Type | Through Hole |
| Series | IQCM-200 |
| Maximum Operating Temperature | 70°C |
| Output Frequency | 10MHz |
| Package Type | Bulk |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | ANSI, RoHS, REACH, JEDEC |
| Pin Count | 14 |
| Minimum Supply Voltage | 5V |
| Load Capacitance | 15pF |
| Output Level | HCMOS |
Key Features
- Operates at a stable frequency of 10 MHz with ±10 parts per billion accuracy.
- Features a 14-pin through-hole mount package for reliable PCB integration.
- Utilizes HCMOS output level with a load capacitance of 15pF for consistent signal quality.
- Supports operating temperatures from -10°C to 70°C, suitable for varied environments.
- Compliant with ANSI, RoHS, REACH, and JEDEC standards ensuring quality and safety.
- Minimum and maximum supply voltage fixed at 5V for stable operation.
- Part of the IQCM-200 series designed for GNSS disciplined OCXO applications.
- Compatible with GPS, GLONASS, BEIDOU and GALILEO, featuring up to 1.5 μs holdover stability over 24 hours.
Product Description
IQD LFOCXO070939B is a high precision 10MHz OCXO oscillator in a bulk packaging format, designed for demanding electronic applications requiring superior frequency stability. Featuring ±10 ppb frequency tolerance and a 14-pin through-hole mount with HCMOS output, it provides consistent and reliable performance in systems such as GNSS disciplined oscillators including GPS, GLONASS, BEIDOU, and GALILEO.
The oscillator operates under a supply voltage of 5V with an operational temperature range between -10°C and 70°C, making it suitable for a wide range of industrial and scientific environments. Its load capacitance of 15pF and a maximum rise and fall time of 8 ns further ensure signal integrity and rapid transitions.
Certified to meet ANSI, RoHS, REACH, and JEDEC standards, it complies with rigorous safety and environmental regulations. The IQCM-200 series integrates adaptive algorithms that provide holdover stability up to 1.5 μs over 24 hours to maintain signal reliability during GPSDO sync interruptions.
This oscillator’s through-hole mount design enables straightforward PCB installation for embedded systems in telecommunications, aerospace, instrumentation, and industrial control applications. Bulk packaging is intended for volume manufacturing and integration.
Operates at 10 MHz frequency with ±10 ppb stability for accurate timing reference. 14-pin through-hole HCMOS output package supports robust electrical interfacing. Wide operating temperature range from -10°C to 70°C suitable for industrial use.
Compliant with major international environmental and safety standards. 5V supply voltage ensures stable power consumption and performance. Integrated adaptive holdover improves oscillator reliability in GNSS applications.
Bulk packaging optimizes logistics for high-volume manufacturing.
Explore the comprehensive catalog of IQD Oscillators at EnvMart for advanced timekeeping and frequency control solutions in electronics, telecommunications, and scientific instrumentation.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a stable frequency of 10 MHz.
This model features a frequency tolerance of ±10 parts per billion (ppb).
It supports an operating temperature range from -10°C to 70°C.
It utilizes an HCMOS output level.
The load capacitance for this oscillator is 15 pF.
It is available in bulk packaging, which is intended for volume manufacturing and integration.
The minimum and maximum supply voltage is fixed at 5V for stable operation.
It is compliant with ANSI, RoHS, REACH, and JEDEC standards.
This oscillator features a 14-pin through-hole mount configuration.
It is part of the IQCM-200 series designed for GNSS disciplined OCXO applications.
It is suitable for telecommunications, aerospace, instrumentation, and industrial control applications.
It features holdover stability of up to 1.5 μs over 24 hours.
