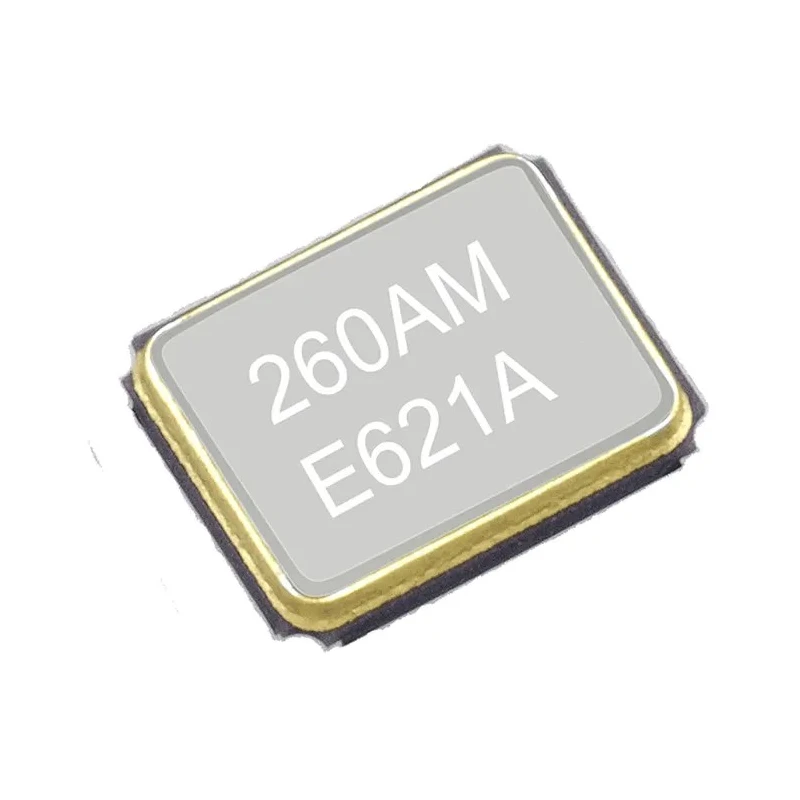

Epson 16 MHz Crystal Unit Surface Mount FA-20H Package 4-Pin ±10 ppm Tolerance Q24FA20H0005912
Specifications
| Country of Origin | India |
|---|---|
| Brand | Epson |
| Height | 0.55mm |
| Length | 2.5mm |
| Model | Q24FA20H0005912 |
| Width | 2mm |
| Mount Type | Surface |
| Series | FA-20H |
| Maximum Operating Temperature | 85°C |
| Package Type | FA-20H |
| Minimum Operating Temperature | -40°C |
| External Dimensions | 2.5 x 2.0 x 0.55 mm |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 16MHz |
| Load Capacitance | 6pF |
| Series Resistance | 150Ω |
| Overtone order | Fundamental |
| Nominal frequency range | 12 MHz to 48 MHz |
Key Features
- Standard frequency of 16 MHz ensures precise timing control.
- Compact external dimensions of 2.5 x 2.0 x 0.55 mm enable miniature device integration.
- Load capacitance rated at 6 pF for stable oscillation.
- Operating temperature range from -40°C to 85°C suits harsh environments.
- Series resistance of 150Ω optimizes electrical performance.
- Designed as a fundamental overtone order crystal for robustness.
- Surface mount type allows easy PCB integration in modern electronics.
- RoHS compliant ensuring environmental safety.
Product Description
Epson Q24FA20H0005912 16 MHz Crystal Unit features a fundamental overtone order and is housed in an ultra-miniature FA-20H package suitable for surface mounting.
Its compact size measuring 2.5 mm length, 2.0 mm width, and 0.55 mm height makes it ideal for devices with space constraints. This miniature crystal unit achieves a standard frequency of 16 MHz with a tight frequency tolerance of ±10 ppm, ensuring precise and reliable timing applications.
Engineered for operation within a temperature range of -40°C to 85°C, it delivers stable performance in demanding industrial, telecommunications, automotive, handheld electronics, and wireless communication equipment.
The Crystal Unit has a load capacitance of 6 pF and a series resistance of 150Ω, which contribute to its optimized oscillation characteristics. Its 4-pin surface mount design eases PCB mounting and integration for automated production.
The FA-20H series crystals are widely used in mobile phones, Bluetooth devices, WLAN modules, ISM band radios, and microprocessor clock circuits, offering robust frequency stability and compact form factors.
Standard frequency of 16 MHz ensures precise timing control. Compact external dimensions of 2.5 x 2.0 x 0.55 mm enable miniature device integration. Load capacitance rated at 6 pF for stable oscillation. Operating temperature range from -40°C to 85°C suits harsh environments.
Series resistance of 150Ω optimizes electrical performance. Designed as a fundamental overtone order crystal for robustness. Surface mount type allows easy PCB integration in modern electronics. RoHS compliant ensuring environmental safety.
FA-20H package series ideal for mobile phones, Bluetooth, W-LAN, and ISM band radio applications. Explore more in our Electronics Components category for precise frequency control devices and related passive components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 16 MHz, ensuring precise timing control for various applications.
The FA-20H package has external dimensions of 2.5 mm in length, 2.0 mm in width, and 0.55 mm in height, making it suitable for miniature device integration.
This model operates within a temperature range of -40°C to 85°C, allowing it to function effectively in harsh environments.
The load capacitance of this crystal unit is rated at 6 pF, which contributes to its stable oscillation characteristics.
The series resistance is 150Ω, optimizing the electrical performance of the crystal unit.
This crystal unit features a 4-pin configuration, suitable for surface mounting on PCBs.
Yes, this crystal unit is RoHS compliant, ensuring it meets environmental safety standards.
This crystal unit is widely used in mobile phones, Bluetooth devices, WLAN modules, ISM band radios, and microprocessor clock circuits.
This model is designed as a fundamental overtone order crystal, which enhances its robustness and stability.
The nominal frequency range for this crystal unit is from 12 MHz to 48 MHz, accommodating various frequency control needs.
This crystal unit supports surface mounting, which facilitates easy integration into modern electronic devices.
The series resistance of 150Ω is significant as it optimizes the electrical performance, ensuring efficient operation within electronic circuits.
