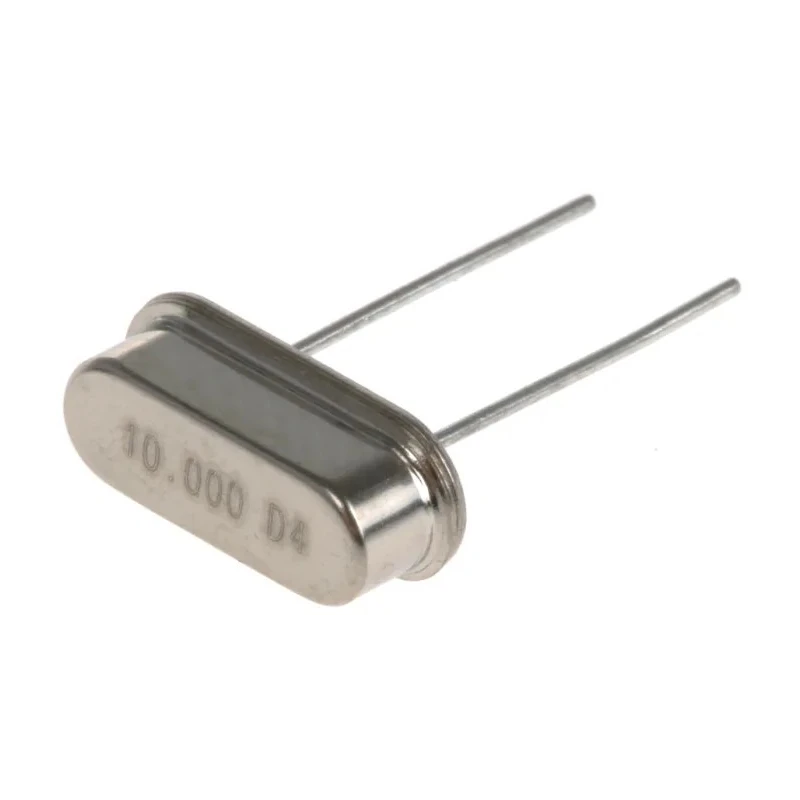

IQD 10 MHz Crystal ±30 ppm HC-49 2-Pin 3.5 mm x 10.77 mm x 4.34 mm HC49

Free Delivery in India | Lowest Global Shipping Charges

IQD 10 MHz Crystal ±30 ppm HC-49 2-Pin 3.5 mm x 10.77 mm x 4.34 mm HC49



Category Crystals, Oscillators & Resonators Brand IQD Condition New

Specifications

Country of Origin	China
Brand	IQD
Height	3.5mm
Length	10.77mm
Model	HC49
Packaging	Tape & Reel
Width	4.34mm
Mount Type	Through Hole
Series	HC49/4H
Maximum Operating Temperature	85°C
Package Type	HC-49
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	2
Standard Frequency	10MHz
Load Capacitance	18pF
Series Resistance	60Ω
IQD 10MHz Crystal ±30ppm HC-49-4H 2-Pin 11.05 x 4.7 x 4mmBrand	IQD

Key Features

This crystal operates at a standard frequency of 10 MHz with a frequency tolerance of ±30 ppm.
Its frequency stability is ±3 ppm, ensuring precision in electronic circuits.
The device features a through-hole mount and comes in a HC-49 package suitable for standard PCB integration.
The crystal has a load capacitance of 18 pF and a series resistance of 60 Ω.
Operating temperature range is from -40°C to +85°C, suitable for varied environmental conditions.
Packaging is Tape & Reel with 2-pin configuration for secure and efficient mounting.
Conforms to RoHS standards ensuring environmental compliance and safety.

Product Description

Euroquartz HC49 10 MHz Crystal ±30 ppm HC-49 2-Pin through-hole device designed for high precision frequency control in electronic circuits.

This crystal oscillator operates at a frequency of 10 MHz with a tight frequency tolerance of ±30 ppm and frequency stability of ±3 ppm, making it ideal for timing applications in industrial, communications, and consumer electronics.

Its through-hole mount and HC-49 package type ensure easy integration into printed circuit boards with a compact size of 10.77 mm length, 4.34 mm width, and 3.5 mm height. The crystal supports a load capacitance of 18 pF and has a series resistance of 60 Ω, which helps maintain signal purity and accuracy.

The device operates reliably across a temperature range from -40°C to 85°C, suiting it for use in harsh environmental and industrial settings. It is packaged in Tape & Reel for manufacturing efficiency and features 2 pins for standard connectivity.

This product complies with RoHS environmental standards, ensuring it meets regulatory requirements for hazardous substances, promoting safe use, and sustainability.

Common industrial and electronic applications include frequency generation in microcontrollers, oscillators, communication devices, and precision timing circuits requiring dependable performance and stability.

This crystal operates at a standard frequency of 10 MHz with a frequency tolerance of ±30 ppm. Its frequency stability is ±3 ppm, ensuring precision in electronic circuits. The device features a through-hole mount and comes in a HC-49 package suitable for standard PCB integration.

The crystal has a load capacitance of 18 pF and a series resistance of 60 Ω. Operating temperature range is from -40°C to +85°C, suitable for varied environmental conditions. Packaging is Tape & Reel with 2-pin configuration for secure and efficient mounting.

Dimensions are length 10.77 mm, width 4.34 mm, and height 3.5 mm for compact footprint. Conforms to RoHS standards ensuring environmental compliance and safety. Explore premium quality crystals like this Euroquartz 10 MHz crystal for use in demanding electronics design and manufacturing at EnvMart.
