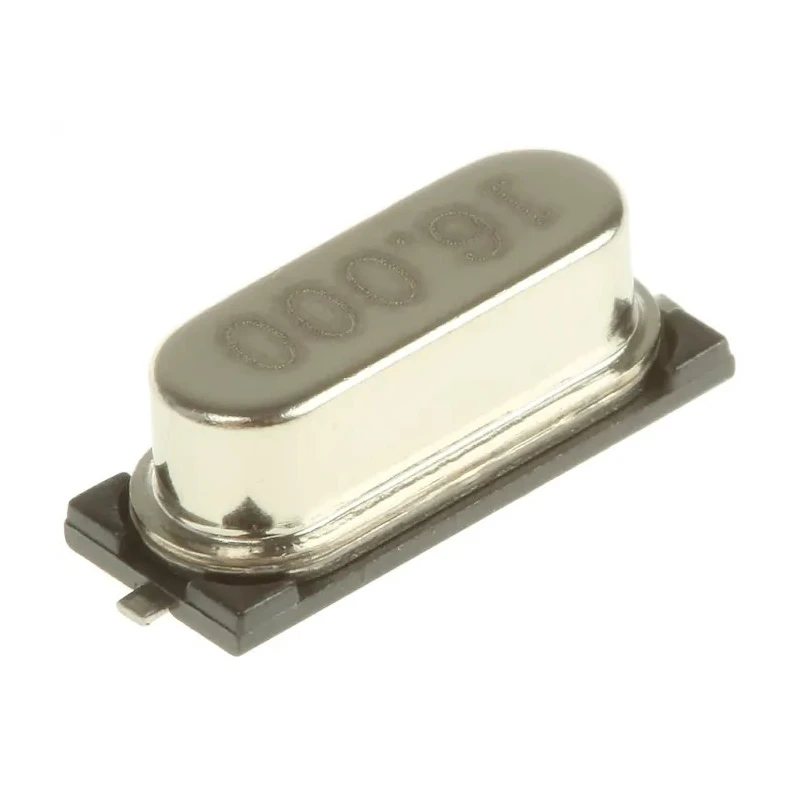

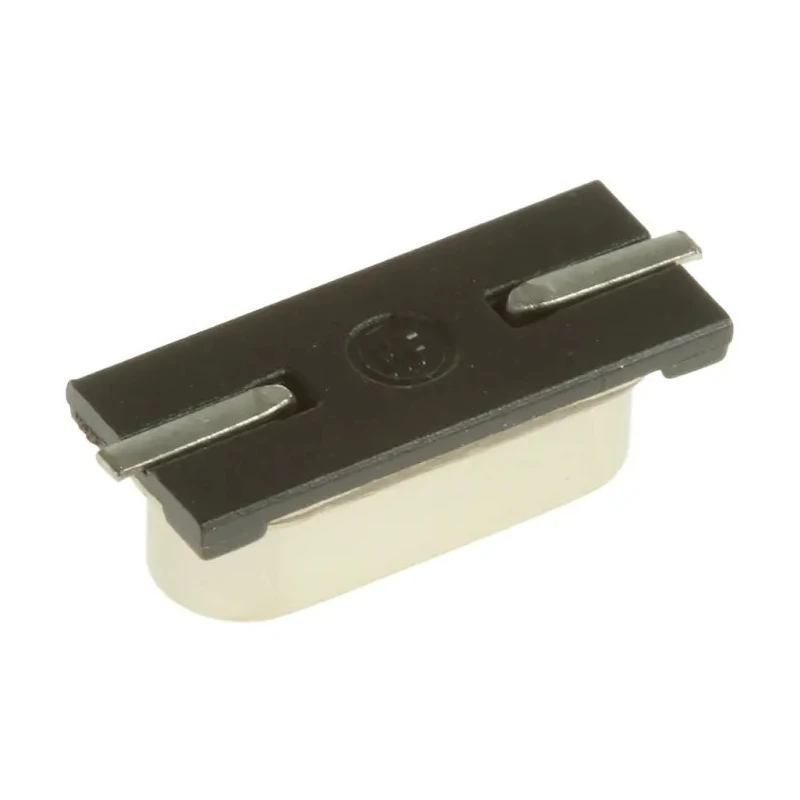

Euroquartz 16 MHz Crystal ±30 ppm Frequency Tolerance Surface Mount 2-Pin 4.2 mm x 16.000MHz 49USMX/30/50/-40+85/18pF/ATF
Specifications
| Country of Origin | China |
|---|---|
| Brand | Euroquartz |
| Height | 4.2mm |
| Length | 12.4mm |
| Model | 16.000MHz 49USMX/30/50/-40+85/18pF/ATF |
| Packaging | Tape & Reel |
| Width | 4.5mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 16MHz |
| Load Capacitance | 18pF |
| Series Resistance | 45Ω |
Key Features
- The crystal is packaged in a compact surface mount 2-pin configuration.
- Features load capacitance of 18pF ensuring stable oscillation frequency.
- Operates reliably across a temperature range from -40°C to 85°C.
- Series resistance is rated at 45Ω supporting efficient signal performance.
- The product complies with RoHS standards for environmental safety.
- Supplied on tape & reel packaging, suitable for automated assembly processes.
Product Description
Euroquartz 16.000MHz 49USMX/30/50/-40+85/18pF/ATF Crystal is a high-precision surface mount crystal unit designed for demanding electronic frequency generation and timing applications.
This crystal provides a nominal frequency of 16 MHz with a tight frequency tolerance of ±30 ppm, ensuring accurate operation in sensitive circuits.

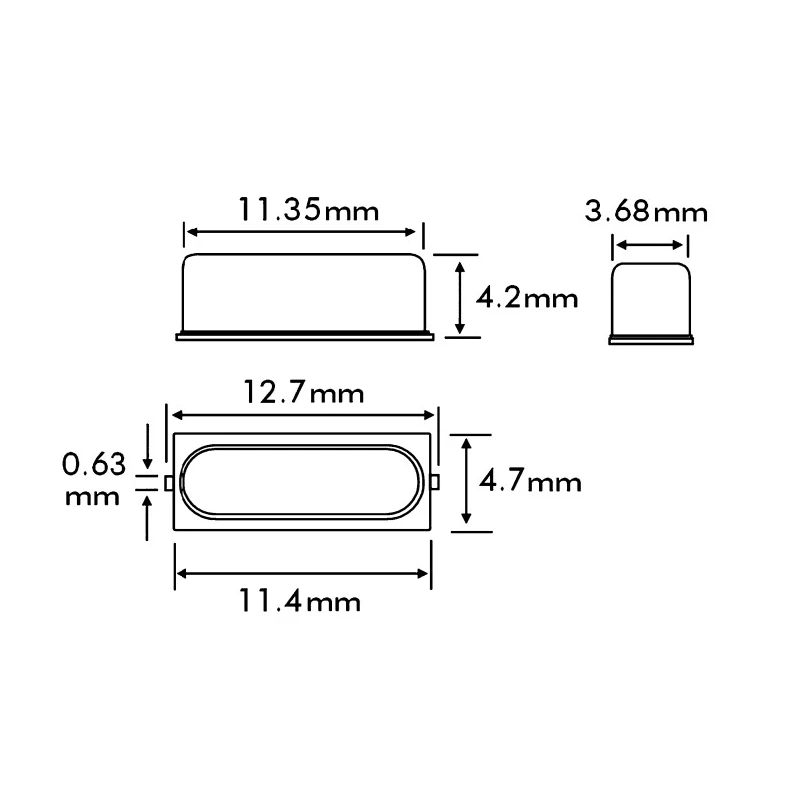

Constructed in a durable metal case with a 2-pin surface mount package, it features dimensions of 12.4 mm length, 4.5 mm width, and 4.2 mm height for versatile PCB footprint compatibility.
The crystal's load capacitance is specified at 18pF, and it maintains frequency stability of ±50 ppm over temperature ranges from -40°C to +85°C, supporting rugged industrial environments.
With a series resistance of 45Ω, it delivers efficient oscillation performance for applications such as embedded systems, communication devices, and industrial controls. The crystal is RoHS compliant and is supplied in tape and reel packaging, facilitating high-volume, automated PCB assembly.
The crystal is packaged in a compact surface mount 2-pin configuration. Compact dimensions enable efficient PCB layout integration. Stable operation with load capacitance of 18pF and ±50 ppm frequency stability. Wide temperature operational range from -40°C to 85°C.
Series resistance of 45Ω ensures signal integrity. Compliance with RoHS environmental standards. Delivered in tape & reel packaging for automated assembly.
This crystal unit is ideal for use in industrial electronics, telecommunications, automotive electronics, test and measurement equipment, and other applications requiring precision timing and frequency control.
Explore more quality electronic components and crystals at EnvMart for reliable industrial and commercial designs.
Explore more products in our Crystals, Oscillators & Resonators category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal frequency of this crystal is 16 MHz.
This model has dimensions of 12.4 mm in length, 4.5 mm in width, and 4.2 mm in height.
The load capacitance is specified at 18 pF, ensuring stable oscillation frequency.
It operates reliably across a temperature range from -40°C to 85°C.
The series resistance is rated at 45Ω, which supports efficient signal performance.
It is supplied in tape and reel packaging, suitable for automated assembly processes.
This crystal complies with RoHS standards for environmental safety.
This unit features a surface mount configuration with a 2-pin design.
It is ideal for use in industrial electronics, telecommunications, automotive electronics, and test and measurement equipment.
It maintains frequency stability of ±50 ppm over the specified temperature range.
The country of origin for this crystal is China.
This model has a pin count of 2.
