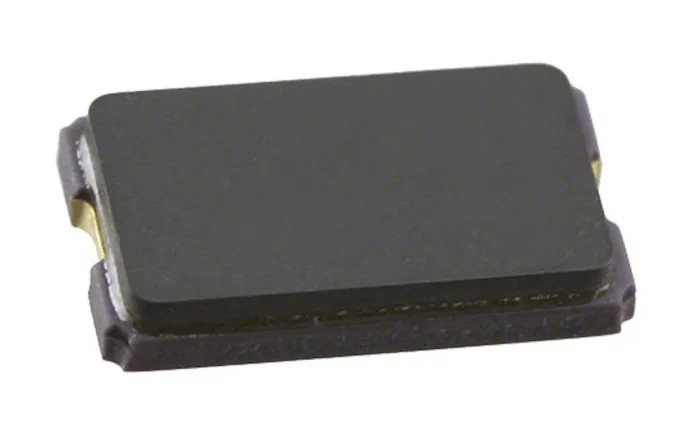

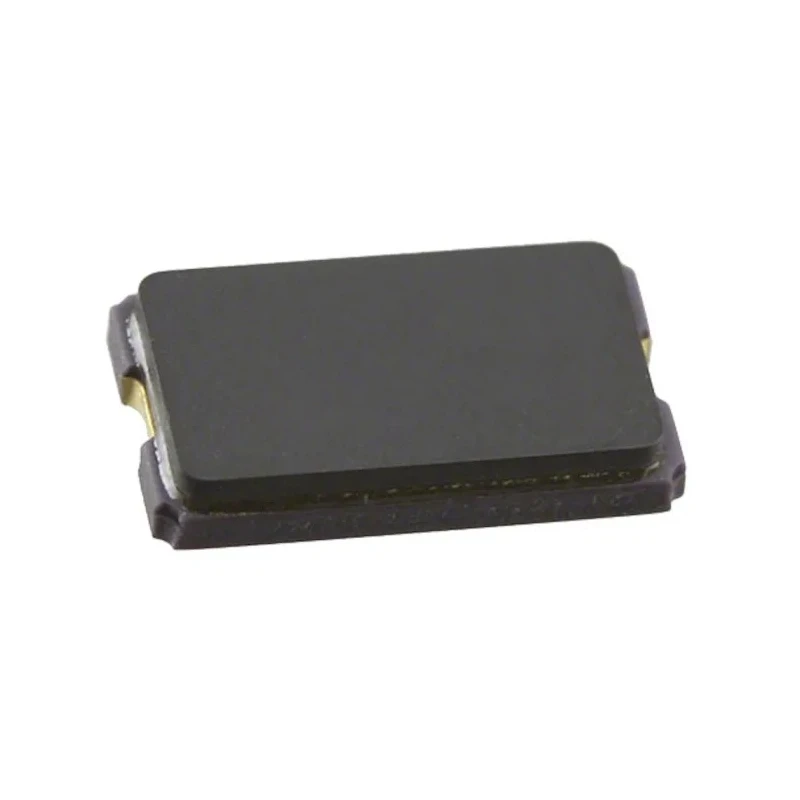

Abracon 10 MHz Crystal ±20 ppm Frequency Tolerance Surface Mount 5 mm x 3.2 mm x 1.3 mm ABM3-10.0000MHZ-D2Y-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1.3mm |
| Length | 5mm |
| Model | ABM3 |
| Packaging | Tape & Reel |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | ABM3 |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | REACH, RoHS |
| Standard Frequency | 10MHz |
| Load Capacitance | 18pF |
| Series Resistance | 60Ω |
Key Features
- This surface mount crystal measures 5 mm in length, 3.2 mm in width, and 1.3 mm in height.
- It has a frequency stability of ±30 ppm ensuring reliable signal performance.
- Operates in temperatures ranging from -40°C to 85°C for industrial and commercial applications.
- The device is packaged in tape & reel format suitable for automated PCB assembly.
- Series resistance is rated at 60 Ω for efficient circuit integration.
- Complies with REACH and RoHS environmental standards for safe usage.
- ABM3 series crystalline component offers a hermetically sealed ceramic package for durability.
Product Description
Abracon ABM3-10.0000MHZ-D2Y-T is a 10 MHz frequency crystal designed for surface mount applications. The crystal features a compact ceramic package sized at 5 mm length, 3.2 mm width, and 1.3 mm height, suitable for miniature SMD designs. With a load capacitance of 18 pF and a frequency tolerance of ±20 ppm, this device provides high precision and stable oscillation for various electronic circuits.
The ABM3 series crystal operates reliably across a temperature range of -40°C to 85°C, making it ideal for demanding industrial, communication, and wireless applications. Its series resistance of 60 Ω and frequency stability of ±30 ppm ensure consistent performance in test and measuring equipment, cellular telephones, and PCMCIA devices.
Packaged in tape & reel format, it supports automated PCB assembly processes for efficient production. Environmental compliance is maintained with REACH and RoHS certification, ensuring the crystal meets global regulatory requirements.
This surface mount crystal has dimensions 5 mm x 3.2 mm x 1.3 mm for compact installation. Load capacitance rated at 18 pF tailored for precise oscillator circuits. Frequency tolerance and stability ensure signal accuracy and reliability.
Wide operating temperature range supports industrial and communication uses. Compliance with industry environmental standards for secure deployment. Hermetically sealed ceramic package offers protection and longevity. Tape & reel packaging compatible with assembly line production methods.
The Abracon ABM3-10.0000MHZ-D2Y-T crystal is widely used in manufacturing electronic components demanding exact frequency stability for optimal device performance. It suits industries such as telecommunications, computing, and instrumentation. Explore more precise electronic components at EnvMart to enhance your projects and production capabilities.
Explore more products in our Crystals, Oscillators & Resonators category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a standard frequency of 10 MHz.
The crystal measures 5 mm in length, 3.2 mm in width, and 1.3 mm in height.
It has a load capacitance of 18 pF, which is suitable for precise oscillator circuits.
The device operates reliably in temperatures ranging from -40°C to 85°C.
The series resistance is rated at 60 Ω, facilitating efficient circuit integration.
It is packaged in tape & reel format, making it suitable for automated PCB assembly.
It complies with REACH and RoHS environmental standards for safe usage.
The frequency tolerance is ±20 ppm, ensuring reliable signal performance.
This model features a surface mount design, suitable for miniature SMD applications.
It is part of the ABM3 series, known for its hermetically sealed ceramic package.
The country of origin for this crystal is India.
This crystal is widely used in telecommunications, computing, and instrumentation applications.
