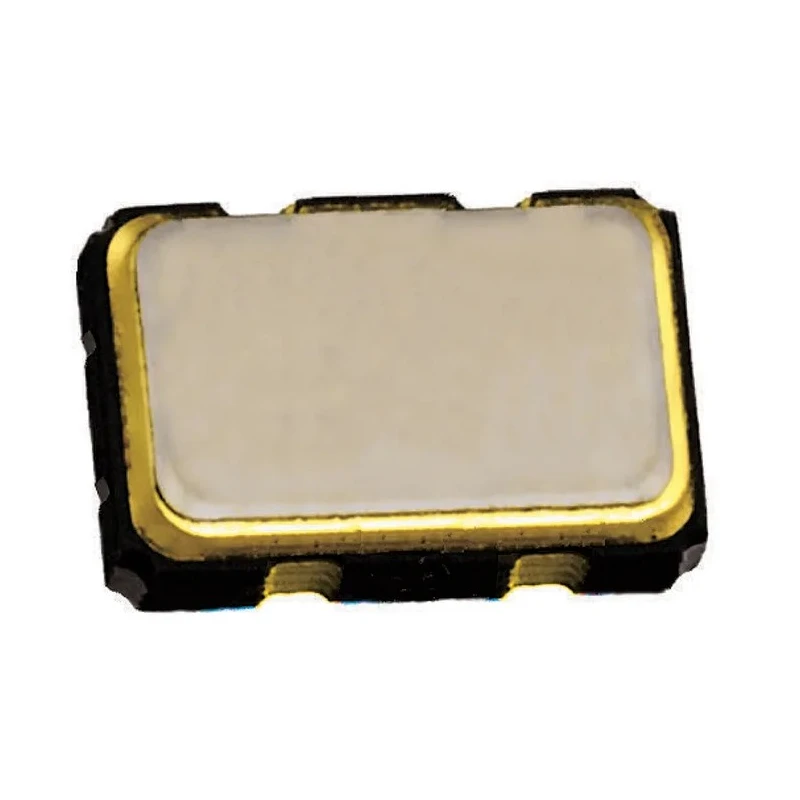

Abracon 25 MHz Crystal ±30 ppm Surface Mount 4-Pin 5x3.2x1 mm 12pF 50Ω Series Resistance 25.000MHz MJ/30/30/-40+85/12pF

Free Delivery in India | Lowest Global Shipping Charges

Abracon 25 MHz Crystal ±30 ppm Surface Mount 4-Pin 5x3.2x1 mm 12pF 50Ω Series Resistance 25.000MHz MJ/30/30/-40+85/12pF

Name: Abracon 25 MHz Crystal ±30 ppm Surface Mount 4-Pin 5x3.2x1 mm 12pF 50Ω Series Resistance 25.000MHz MJ/30/30/-40+85/12pF
Brand: Abracon
SKU: 213251
Price: 1.64 USD
Availability: InStock



Category Crystals, Oscillators & Resonators Brand Abracon Condition New

Specifications

Country of Origin	Taiwan
Brand	Abracon
Height	1mm
Length	5mm
Model	25.000MHz MJ/30/30/-40+85/12pF
Packaging	Tape & Reel
Width	3.2mm
Mount Type	Surface
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Standard Frequency	25MHz
Load Capacitance	12pF
Series Resistance	50Ω
Abracon 25MHz Crystal ±20ppm SMD 4-Pin 5 x 3.2 x 1.1mmBrand	Abracon

Key Features

Standard frequency of 25 MHz ensures reliable signal generation.
Surface mount package with 4 pins for compact PCB integration.
Load capacitance of 12pF optimized for oscillator circuits.
Series resistance of 50Ω maintains signal integrity and performance.
Operating temperature range from -40°C to 85°C for industrial applications.

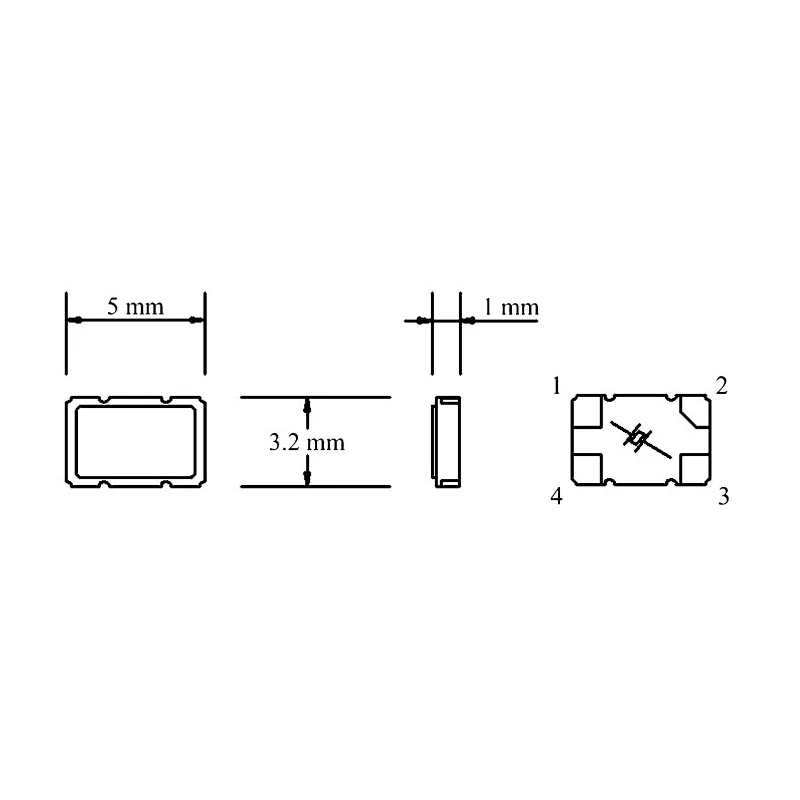

Package dimensions are 5 mm length, 3.2 mm width, and 1 mm height.
RoHS compliant, ensuring environmental safety and regulatory conformity.
Suitable for electronic, industrial, and communication equipment requiring precise frequency timing.

Product Description

Euroquartz 25.000MHz MJ/30/30/-40+85/12pF Crystal is a high-precision surface mount crystal oscillator designed for reliable frequency generation in electronic circuits. Featuring a standard 25 MHz frequency with ±30 ppm tolerance and stability, this 4-pin device supports consistent performance within a wide operating temperature range from -40°C to 85°C. The crystal unit utilizes a compact surface mount package measuring 5 mm in length, 3.2 mm in width, and 1 mm in height, enabling fine integration on densely populated printed circuit boards.

This crystal oscillator has a load capacitance of 12 pF and a series resistance of 50 Ω, both of which contribute to stable oscillation and signal quality. It is RoHS compliant, supporting environmentally responsible manufacturing practices. Packaged in tape & reel format, it is suitable for automated PCB assembly lines, improving production efficiency.

Ideal for industrial, communications, and electronic applications, this Euroquartz crystal unit offers excellent frequency accuracy and stability for timing, signal processing, and control functions. Its robust operating temperature range and standardized dimensions make it highly reliable in diverse environments, including automotive and industrial systems where precision and endurance are critical.

Standard frequency of 25 MHz ensures reliable signal generation. Surface mount package with 4 pins for compact PCB integration. Load capacitance of 12pF optimized for oscillator circuits. Frequency tolerance and stability of ±30 ppm support accurate timing.

Series resistance of 50Ω maintains signal integrity and performance. Operating temperature range from -40°C to 85°C for industrial applications. Package dimensions are 5 mm length, 3.2 mm width, and 1 mm height. RoHS compliant, ensuring environmental safety and regulatory conformity.

Suitable for electronic, industrial, and communication equipment requiring precise frequency timing. Supplied in tape & reel packaging for automated assembly processes. Explore the extensive range of Crystals, Oscillators & Resonators on EnvMart for reliable frequency control components that meet industrial and commercial needs.
