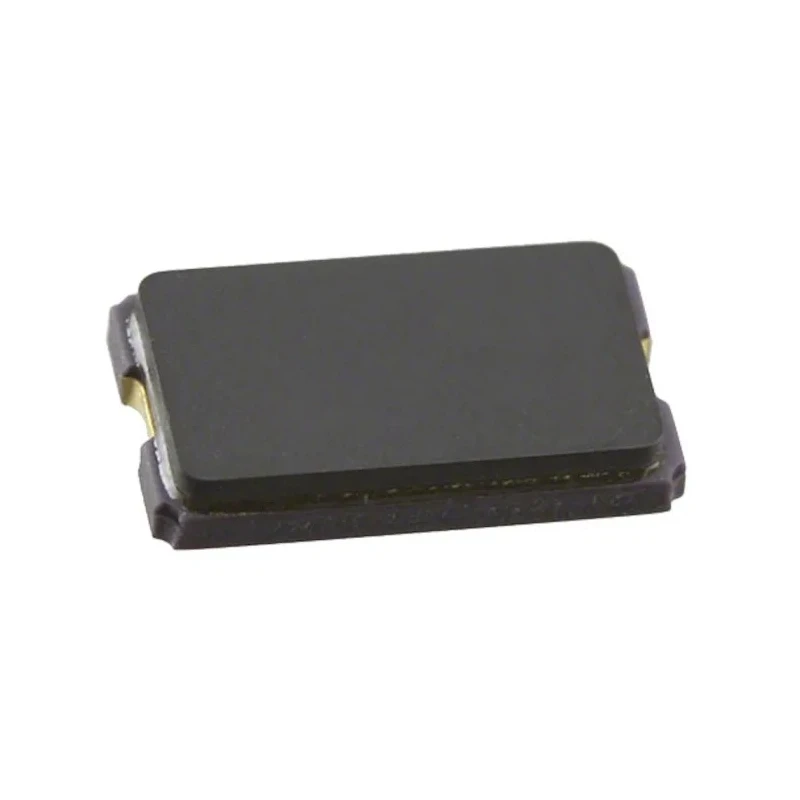

Abracon 25 MHz Crystal ±20 ppm Surface Mount 5 mm x 3.2 mm x 1.3 mm ABM3-25.000MHZ-B2-T
Specifications
| Country of Origin | China |
|---|---|
| Brand | Abracon |
| Height | 1.3mm |
| Length | 5mm |
| Model | ABM3 |
| Packaging | Tape & Reel |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | ABM3 |
| Maximum Operating Temperature | 70°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | REACH, RoHS |
| Standard Frequency | 25MHz |
| Load Capacitance | 18pF |
| Series Resistance | 30Ω |
Key Features
- Compact surface mount crystal with dimensions of 5 mm x 3.2 mm x 1.3 mm.
- Features a frequency stability of ±50 ppm ensuring reliable performance.
- Load capacitance is 18 pF for optimized circuit matching.
- Operates in temperature ranges from -20°C to 70°C for versatile use.
- Has a low series resistance of 30 ohms for efficient signal quality.
- Packaged in tape and reel format for automated assembly.
- Complies with RoHS and REACH standards, ensuring regulatory conformity.
- Suitable for communication, cellular, and wireless applications.
Product Description
Abracon ABM3-25.000MHZ-B2-T is a high-precision 25 MHz surface mount crystal designed for compact electronic applications. The crystal features a small ceramic package measuring 5 mm length, 3.2 mm width, and 1.3 mm height, hermetically glass-sealed for excellent reliability. Its ±20 ppm frequency tolerance and ±50 ppm frequency stability provide stable oscillation suitable for sensitive circuits.
This ABM3 series crystal supports a load capacitance of 18 pF, optimizing signal performance for cellular telephones, pagers, PCMCIA devices, and wireless communication equipment. Its operational temperature range from -20°C to 70°C makes it applicable for diverse environmental conditions.
The crystal exhibits a low series resistance of 30 ohms, contributing to the efficiency and quality of the signal output. It is supplied in a tape and reel packaging, ideal for automated assembly lines and mass production.
Conforming to RoHS and REACH environmental standards, this component meets necessary regulatory requirements. Its robust design and precise specifications make it suitable for industrial, communication, and test equipment applications.
Compact 5 mm x 3.2 mm x 1.3 mm ceramic surface mount package. ±20 ppm frequency tolerance for high accuracy. ±50 ppm frequency stability under varying conditions. 18 pF load capacitance suitable for wireless applications.
Operational temperature range from -20°C to 70°C. Low series resistance of 30 ohms for signal clarity. RoHS and REACH compliant ensuring safety and environmental standards. Packaged on tape and reel suitable for automated processes.
This Abracon ABM3 crystal unit is ideal for use in industrial electronics, telecommunications, wireless communication devices, and laboratory test instruments. Its high reliability and precision support long-term operational stability.
Explore the Electronics Components category on EnvMart for more Crystal Units and oscillators from leading manufacturers ensuring quality and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The frequency tolerance of this crystal is ±20 ppm, ensuring high accuracy in oscillation.
It has dimensions of 5 mm in length, 3.2 mm in width, and 1.3 mm in height.
The load capacitance is 18 pF, which optimizes circuit matching for various applications.
It operates within a temperature range of -20°C to 70°C, suitable for diverse environmental conditions.
The series resistance is 30 ohms, contributing to efficient signal quality.
It is packaged in tape and reel format, making it ideal for automated assembly processes.
This model complies with RoHS and REACH standards, ensuring regulatory conformity.
It is suitable for communication, cellular, and wireless applications, including devices like pagers and PCMCIA.
The maximum operating temperature is 70°C, allowing it to function effectively in higher temperature environments.
The packaging type is surface mount, designed for compact electronic applications.
This model belongs to the ABM3 series, known for its precision and reliability.
The country of origin for this crystal is China.
